SiproinDatasheet (PDF)

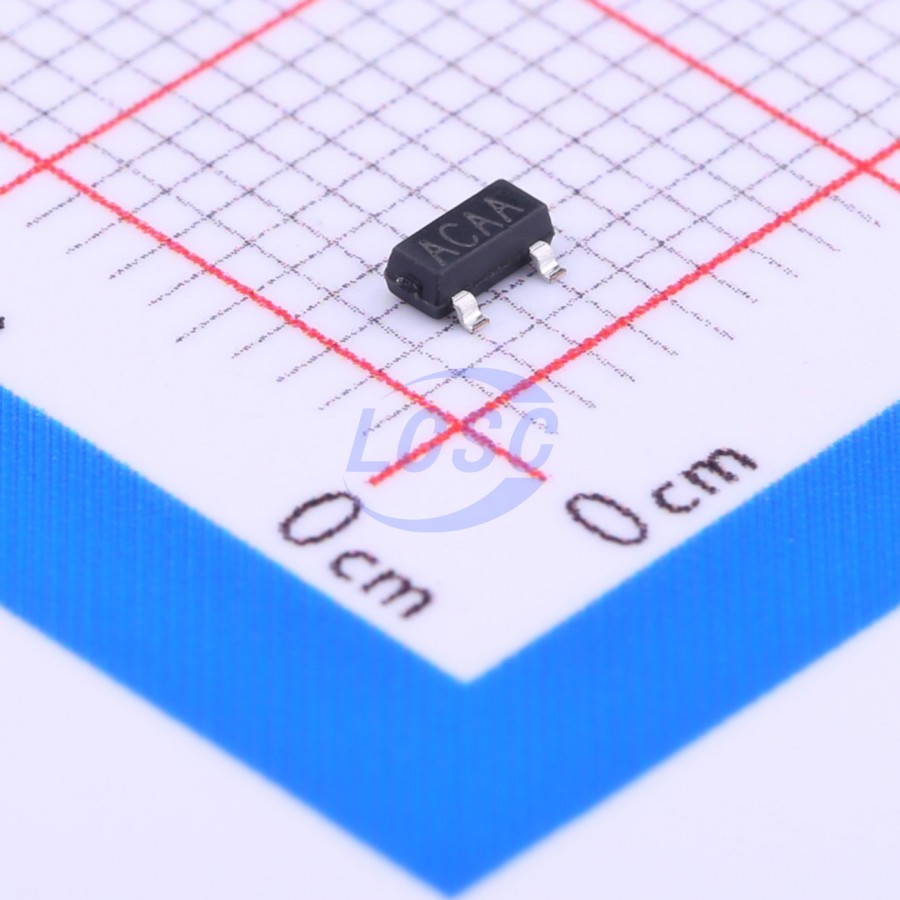

SSP809C308NR
200ms Lagging function 1.2V~7.5V 1 SOT-23 Supervisors
SOT-23RoHSActive
Power Supply Supervisor
- Manufacturer
- Siproin
- Manufacturer part #
- SSP809C308NR
- Store part #
- C308948
- Package / case
- SOT-23
- Category
- Supervisors
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
6,540 in stock
#C308948
Stock & price checked 46 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.32 | ₹73.20 |
| 100+ | ₹5.87 | ₹587.00 |
| 300+ | ₹5.15 | ₹1,545.00 |
| 3,000+ | ₹4.19 | ₹12,570.00 |
| 6,000+ | ₹3.76 | ₹22,560.00 |
| 9,000+ | ₹3.55 | ₹31,950.00 |
10 × ₹7.32
₹73.20
excl. GST
₹86.38 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SSP809C308NR
₹73.20 for 10 + GST
Specifications
- output type
- Push-pull
- Reset Timeout
- 200ms
- Function
- Lagging function
- standby current
- 1.8uA
- Voltage - Supply
- 1.2V~7.5V
- ChipType
- Voltage Detector
- Threshold Voltage
- 3.08V
- Number of Voltages Monitored
- 1
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.04 g
Overview
The SSP809 series are highly accurate, low power consumption voltage detectors, manufactured using CMOS and laser trimming technologies. A delay circuit is built-in to each detectors. Detect voltage is extremely accurate with minimal temperature drift. Both CMOS and N-ch open drain output configurations are available. Since the delay circuit is built-in, peripherals are unnecessary and high density mounting is possible.
Applications
- Microprocessor reset circuitry
- Memory battery back-up circuits
- Power on reset circuits
- System battery life and charge voltage monitors
- Delay circuitry
- Power failure detection
Key features
- Low power consumption
- Low temperature coefficient
- Built-in delay circuit: 200ms
- High input voltage (up to 8V)
- Output voltage accuracy: tolerance ±2%
- SOT23 package
