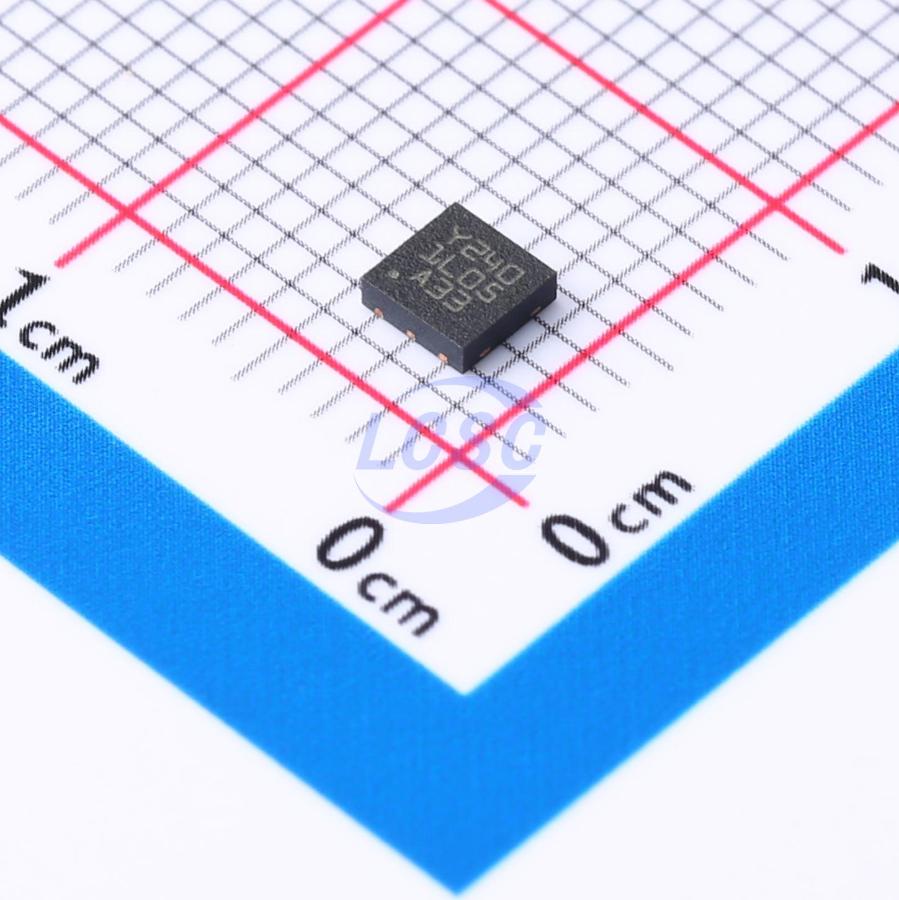

ST1L05APU33R

The ST1L05 is a low drop linear voltage regulator, which supplies up to 1.3 A output current. The output voltage is fixed at 1.8 V, 2.5 V, 3.3 V and it is adjustable. It is available in three different versions with different pinouts. Thanks to BiCMOS technology, the quiescent current is controlled and maintained below 650 μA over the entire allowed junction temperature range. The ST1L05 is stable with low ESR output ceramic capacitors. Internal protection circuitry includes thermal protection with hysteresis and overcurrent limiting. The ST1L05 is suitable for data storage applications such as HDDs, where it can supply 3.3 V required by read channel and memory chips. The regulator is available in the small and thin DFN6 (3x3 mm) and DFN8 (4x4 mm) packages.

Applications

• data storage applications such as HDDs

Key features

• Fixed output voltage: 1.8 V, 2.5 V, 3.3 V and ADJ
• Output voltage tolerance: ± 2% at 25°C
• Output current capability: 1.3 A
• Very low quiescent current: max. 650 μA
• Typ. dropout 0.3 V (I₀ = 1.3 A)
• Enable function for B, C and D versions
• Power Good function for B and D versions
• Stable with low ESR ceramic capacitors
• Thermal shutdown protection with hysteresis
• Overcurrent protection
• Operating junction temperature range: from 0 to 125°C
