STDatasheet (PDF)

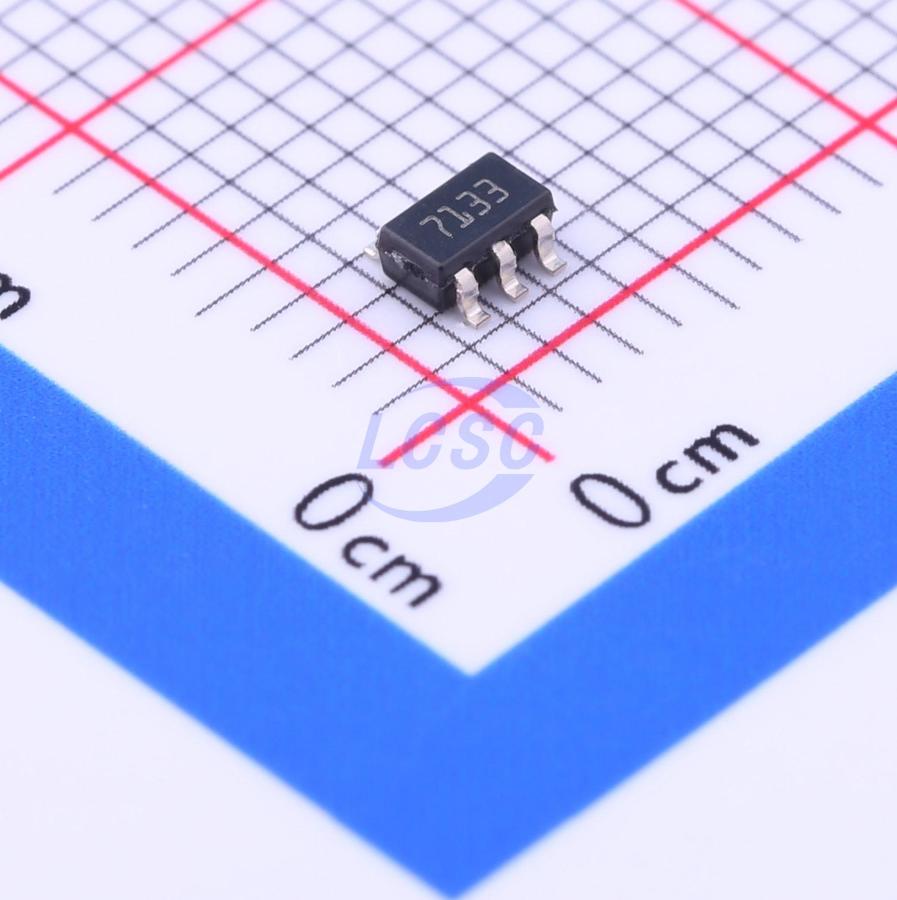

ST715M33R
3.3V Positive Fixed SOT-23-5 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SOT-23-5ROHS3 CompliantActive
High input voltage, 85 mA LDO linear regulator
- Manufacturer
- ST
- Manufacturer part #
- ST715M33R
- Store part #
- C108912
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,171 in stock
#C108912
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹124.08 | ₹124.08 |
| 10+ | ₹104.97 | ₹1,049.70 |
| 30+ | ₹95.40 | ₹2,862.00 |
| 100+ | ₹85.84 | ₹8,584.00 |
| 500+ | ₹79.98 | ₹39,990.00 |
| 1,000+ | ₹77.14 | ₹77,140.00 |
1 × ₹124.08
₹124.08
excl. GST
₹146.41 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
ST715M33R
₹124.08 for 1 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 5.5uA
- Output Configuration
- Positive
- Output Current
- 85mA
- Operating Voltage
- 24V
- Features
- Short Circuit Protection;Over Current Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.039 g
Overview
The ST715 is a high voltage, ultra low quiescent current and low drop linear regulator capable of providing an output current in excess of 85 mA. The device operates over an input voltage range from 2.5 V to 24 V, and it is stable with output ceramic capacitors. Fault condition protection includes short-circuit current limitation. The ultra low quiescent current of 3.8 μA at full load makes it highly suitable for low power applications and battery-powered systems. The wide input voltage range makes the ST715 an ideal solution for low power industrial applications. The ST715 is available in SOT23-5, SOT323-5L or DFN8 (3x3 mm) 8 leads.
Applications
- Mobile phones
- Personal digital assistant (PDAs)
- Cordless phones and similar battery-powered systems
Key features
- 2.5 V to 24 V input voltage
- Low-dropout voltage (500 mV typ. at 85 mA)
- Very low quiescent current (3.8 μA typ. at full load)
- 85 mA guaranteed output current
- Output voltages available on request: from 1.2 V to 5.0 V with 100 mV step and adjustable
- Compatible with ceramic output capacitors from 0.47 μF to 10 μF
- Internal current limit
- Packages: SOT23-5L, SOT323-5L and DFN8 (3x3 mm)
- Temperature range: from -40 °C to 125 °C
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LDK715M33R#C2688674ST · SOT-23-5L | ST | SOT-23-5L | 14 | ₹142.12 · 14 in stock | View |
| SK6513SS5E-33#C52034502Suntek · SOT-23-5L | Suntek | SOT-23-5L | 85 | ₹23.07 · 85 in stock | View | |
 | TLV709A33DBVR#C21574006TI · SOT-23-5 | TI | SOT-23-5 | 297 | ₹102.56 · 297 in stock | View |
 | NCP718ASN330T1G#C603785onsemi · TSOT-23-5 | onsemi | TSOT-23-5 | 900 | ₹63.53 · 900 in stock | View |
 | NCP718BSN330T1G#C892795onsemi · TSOT-23-5 | onsemi | TSOT-23-5 | 30 | ₹73.02 · 30 in stock | View |
