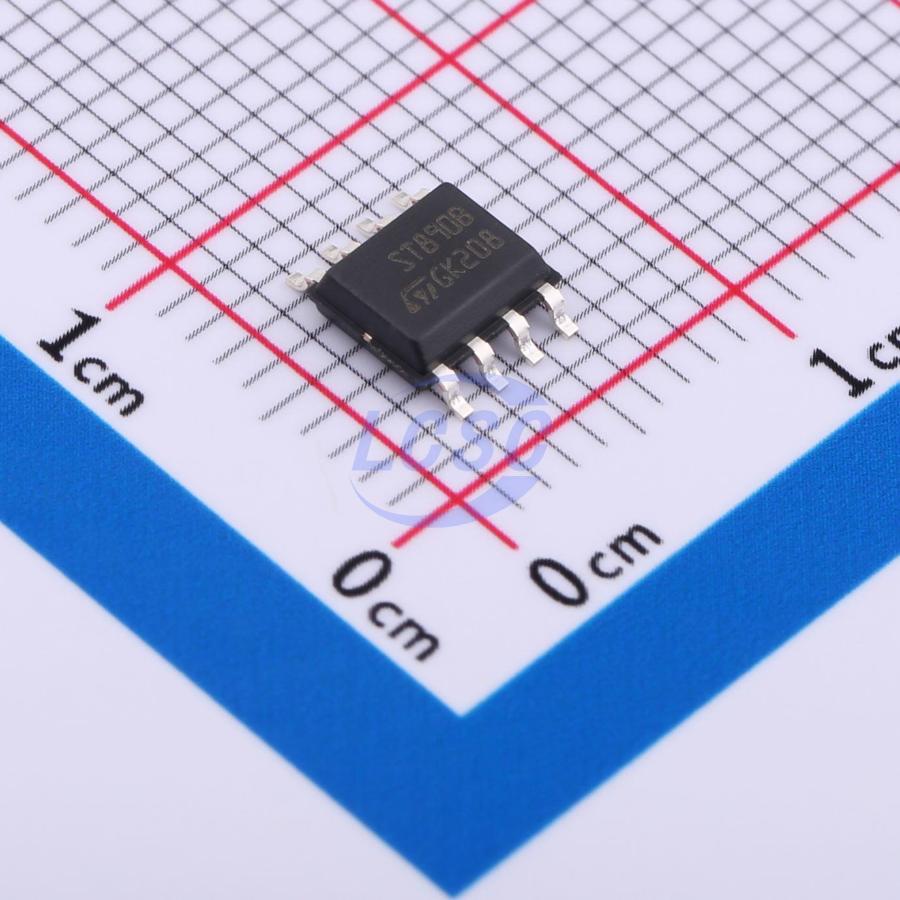

ST890BDR
1 Active Low 1.2A High Side Switch SO-8 Power Distribution Switches, Load Drivers RoHS
SO-8ROHS3 CompliantActive
1.2 A current limited high-side power switch with thermal shutdown
- Manufacturer
- ST
- Manufacturer part #
- ST890BDR
- Store part #
- C2149922
- Package / case
- SO-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,312 in stock
#C2149922
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹128.40 | ₹128.40 |
| 10+ | ₹105.50 | ₹1,055.00 |
| 30+ | ₹92.87 | ₹2,786.10 |
| 100+ | ₹78.63 | ₹7,863.00 |
| 500+ | ₹72.31 | ₹36,155.00 |
| 1,000+ | ₹69.43 | ₹69,430.00 |
1 × ₹128.40
₹128.40
excl. GST
₹151.51 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
ST890BDR
₹128.40 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Overcurrent Protection;Short-Circuit Protection;Over temperature protection;Under-voltage lockout
- number of channels
- 1
- Control Input Logic
- Active Low
- Maximum Continuous Current
- 1.2A
- Operating Voltage
- 2.7V~5.5V
- RDS(on)
- 75mΩ
- Type
- High Side Switch
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 1.51 g
Overview
The ST890 device is a low voltage, P-channel MOSFET power switch intended for high-side load switching applications. The switch operates with inputs from 2.7 to 5.5 V, making it ideal for both 3 V and 5 V systems. The internal current limiting circuitry protects the input supply against overload. The thermal overload protection limits power dissipation and junction temperatures. The maximum current limit is 1.2 A. The current limit through the switch is programmed with a resistor from SET to ground. The devices are available in SO8 and DFN8L 3x3 packages.
Applications
- PCMCIA slots
- Access bus slots
- Portable equipment
Key features
- 2.7 to 5.5 V input range
- Programmable current limit up to 1.2 A
- Low quiescent current
- Thermal shutdown
- Active-low FAULT indicator output
- 90 mΩ (typ.) ON resistance
- SO8 and DFN8L 3x3 packages
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | AP2401S-13#C2150099DIODES · SO-8 | DIODES | SO-8 | 200 | ₹44.09 · 200 in stock | View |
 | ST890CDR#C135999ST · SOIC-8 | ST | SOIC-8 | 3,997 | ₹81.13 · 3,997 in stock | View |
 | TPS2023D#C1556665TI · SOIC-8 | TI | SOIC-8 | 30 | ₹367.65 · 30 in stock | View |
 | TPS2013ADR#C2680370TI · SOIC-8 | TI | SOIC-8 | 164 | ₹227.69 · 164 in stock | View |
| TPS2024D#C1556657TI · SOIC-8 | TI | SOIC-8 | 20 | ₹244.99 · 20 in stock | View | |
