VBsemi ElecDatasheet (PDF)

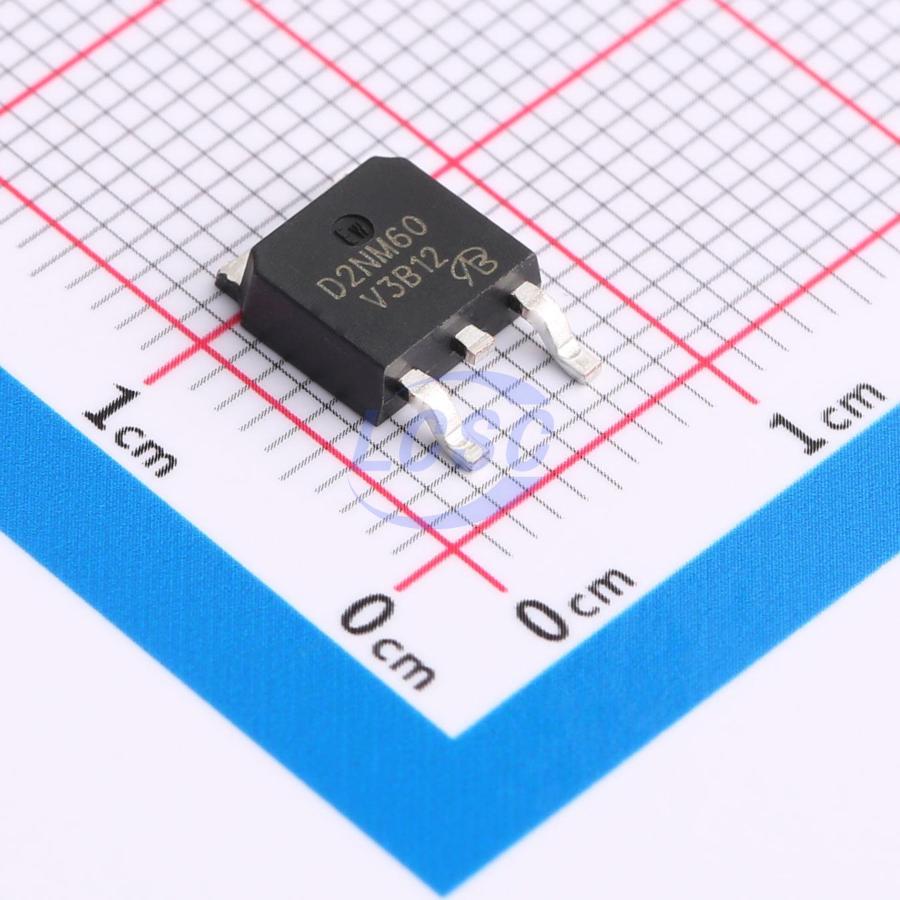

STD2NM60T4-VB
650V 4.5A 60W Surface Mount TO-252
TO-252RoHSActive
MOSFET 650V 4.5A TO-252
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- STD2NM60T4-VB
- Store part #
- C2680804
- Package / case
- TO-252
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
44 in stock
#C2680804
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹71.84 | ₹71.84 |
| 10+ | ₹56.93 | ₹569.30 |
| 30+ | ₹50.42 | ₹1,512.60 |
| 100+ | ₹42.44 | ₹4,244.00 |
| 500+ | ₹38.87 | ₹19,435.00 |
| 1,000+ | ₹36.55 | ₹36,550.00 |
1 × ₹71.84
₹71.84
excl. GST
₹84.77 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
STD2NM60T4-VB
₹71.84 for 1 + GST
Specifications
- Drain to Source Voltage
- 650V
- Operating Temperature
- -55℃~+150℃
- Output Capacitance(Coss)
- 177pF
- Current - Continuous Drain(Id)
- 4.5A
- Ciss-Input Capacitance
- 1.417nF
- Pd - Power Dissipation
- 60W
- Reverse Transfer Capacitance (Crss)
- 7pF
- RDS(on)
- 2.1Ω@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 48nC@10V
- Gate Threshold Voltage (Vgs(th))
- 5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.404 g
Overview
Applications
- Synchronous Rectification - Power Supply
Key features
- Low gate charge Qg, simple drive requirements
- Improved gate, avalanche, and dynamic dV/dt robustness
- Fully characterized capacitance, avalanche voltage, and current
- RoHS compliant with directive 2002/95/EC
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | IPD60R3K3C6-VB#C18212470VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 50 | ₹73.74 · 50 in stock | View |
 | FQD6N60CTF-VB#C19188242VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 47 | ₹73.74 · 47 in stock | View |
 | K4N60LV-VB#C19190157VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 48 | ₹73.74 · 48 in stock | View |
 | FQD5N60CTM-VB#C19190241VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 293 | ₹83.02 · 293 in stock | View |
 | STD3N62K3-VB#C19190245VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 45 | ₹73.74 · 45 in stock | View |
