VBsemi ElecDatasheet (PDF)

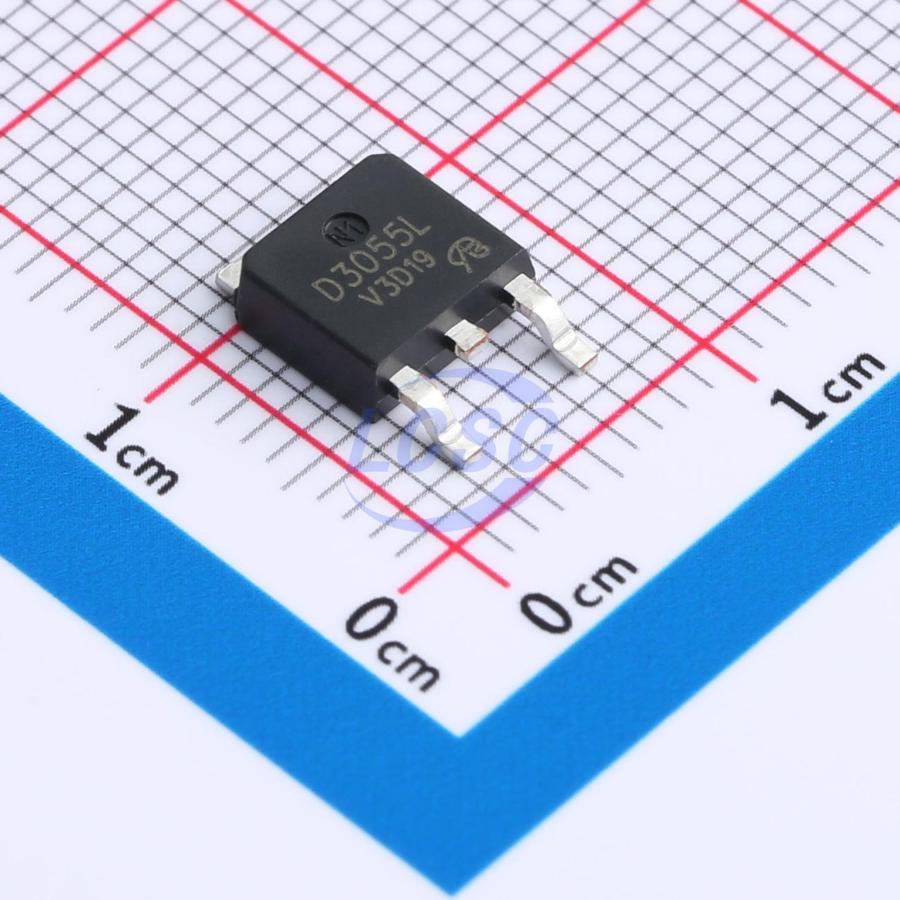

STD3055L-VB
N-Channel 30V 50A 28W Surface Mount TO-252
TO-252RoHSActive
MOSFET N-CH 30V 50A TO-252
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- STD3055L-VB
- Store part #
- C19188253
- Package / case
- TO-252
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
20 in stock
#C19188253
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹53.56 | ₹53.56 |
| 10+ | ₹42.51 | ₹425.10 |
| 30+ | ₹37.84 | ₹1,135.20 |
| 100+ | ₹31.88 | ₹3,188.00 |
| 500+ | ₹29.33 | ₹14,665.00 |
| 1,000+ | ₹27.64 | ₹27,640.00 |
1 × ₹53.56
₹53.56
excl. GST
₹63.20 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
STD3055L-VB
₹53.56 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 30V
- Output Capacitance(Coss)
- 200pF
- Current - Continuous Drain(Id)
- 50A
- Ciss-Input Capacitance
- 1.7nF
- Pd - Power Dissipation
- 28W
- Reverse Transfer Capacitance (Crss)
- 150pF
- RDS(on)
- 7mΩ@10V;9mΩ@4.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 33nC@10V
- Gate Threshold Voltage (Vgs(th))
- 3V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.505 g
Overview
Applications
- DC-DC Conversion - System Power
Key features
- Halogen-free
- 3rd generation trench power MOSFET
- 100% Rg tested
- 100% unclamped inductive switching (UIS) tested
- RoHS compliant
