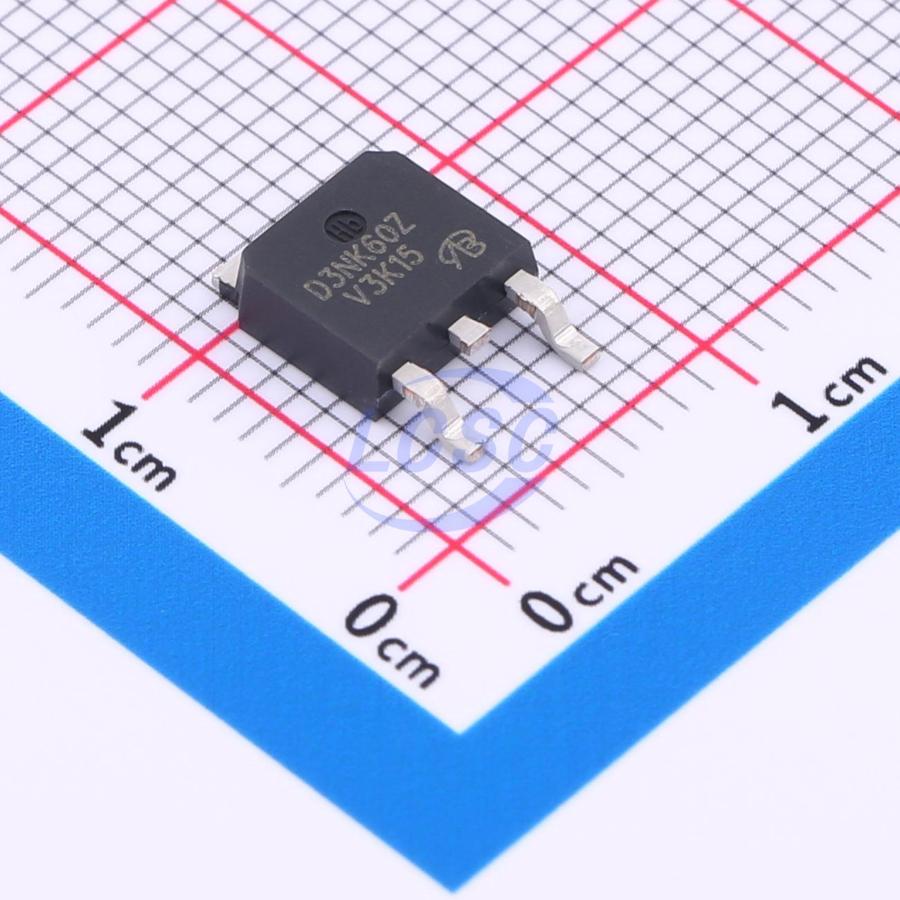

STD3NK60ZT4-VB
N-Channel 650V 4.5A 60W Surface Mount TO-252
TO-252RoHSActive
MOSFET N-CH 650V 4.5A TO-252
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- STD3NK60ZT4-VB
- Store part #
- C19632165
- Package / case
- TO-252
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
15 in stock
#C19632165
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹72.90 | ₹72.90 |
| 10+ | ₹57.99 | ₹579.90 |
| 30+ | ₹51.46 | ₹1,543.80 |
| 100+ | ₹43.49 | ₹4,349.00 |
| 500+ | ₹39.91 | ₹19,955.00 |
| 1,000+ | ₹37.81 | ₹37,810.00 |
1 × ₹72.90
₹72.90
excl. GST
₹86.02 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
STD3NK60ZT4-VB
₹72.90 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 650V
- Output Capacitance(Coss)
- 1.912nF
- Current - Continuous Drain(Id)
- 4.5A
- Ciss-Input Capacitance
- 1.417nF
- Pd - Power Dissipation
- 60W
- Reverse Transfer Capacitance (Crss)
- 7pF
- RDS(on)
- 2.1Ω@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 48nC@10V
- Gate Threshold Voltage (Vgs(th))
- 5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.352 g
Overview
Key features
- Low Gate Charge Qg Results in Simple Drive Requirement Available
- Improved Gate, Avalanche and Dynamic dV/dt Ruggedness
- Fully Characterized Capacitance and Avalanche Voltage and Current
- Compliant to RoHS directive 2002/95/EC
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | IRFR420PBF-VB#C19188170VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 15 | ₹73.74 · 15 in stock | View |
 | SIHD3N50D-GE3-VB#C19632105VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 50 | ₹75.41 · 50 in stock | View |
 | 2SK3124-VB#C29779535VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 20 | ₹70.16 · 20 in stock | View |
 | IPD60R3K3C6-VB#C18212470VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 50 | ₹73.74 · 50 in stock | View |
 | FQD6N60CTF-VB#C19188242VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 47 | ₹73.74 · 47 in stock | View |
