STDatasheet (PDF)

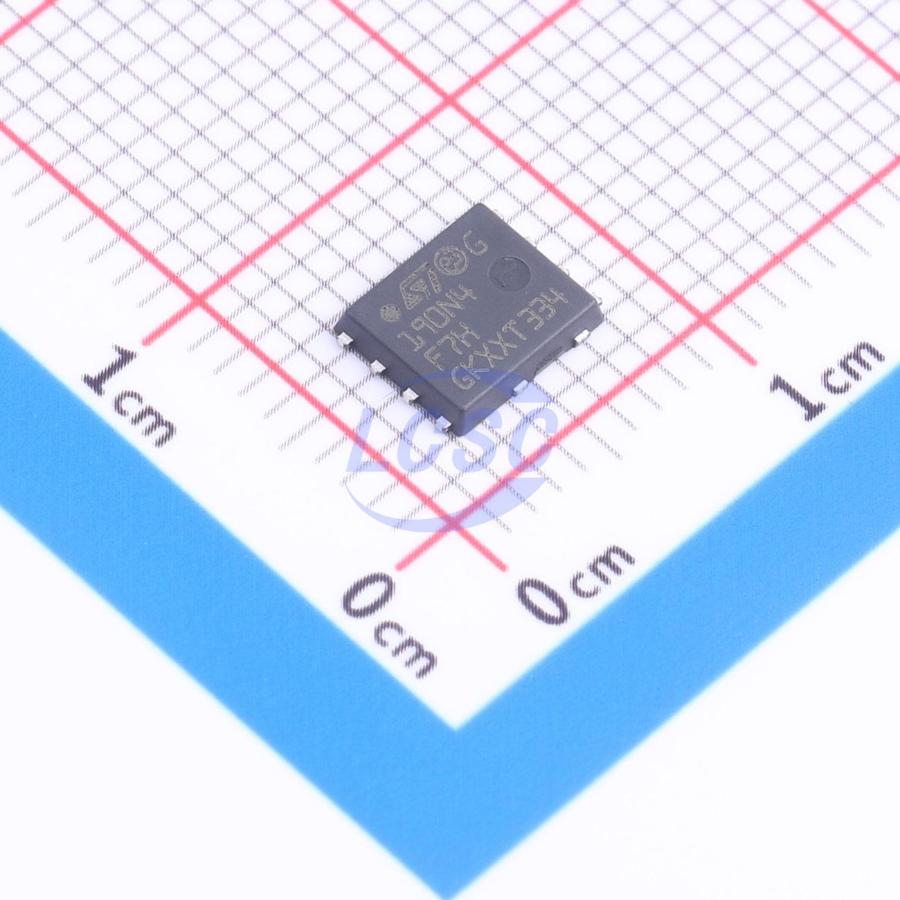

STL190N4F7AG
127W 40V 120A 2mΩ@10V 1 N-channel N-Channel VDFN-8-Power Single FETs, MOSFETs RoHS
VDFN-8-PowerROHS3 CompliantActive
Automotive-grade, Current:120A, Voltage:40V
- Manufacturer
- ST
- Manufacturer part #
- STL190N4F7AG
- Store part #
- C2970634
- Package / case
- VDFN-8-Power
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
25 in stock
#C2970634
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹531.33 | ₹531.33 |
| 10+ | ₹522.10 | ₹5,221.00 |
| 30+ | ₹515.85 | ₹15,475.50 |
| 100+ | ₹509.62 | ₹50,962.00 |
1 × ₹531.33
₹531.33
excl. GST
₹626.97 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
STL190N4F7AG
₹531.33 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 850pF
- Ciss-Input Capacitance
- 3nF
- Pd - Power Dissipation
- 127W
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 40V
- Current - Continuous Drain(Id)
- 120A
- Reverse Transfer Capacitance (Crss)
- 70pF
- RDS(on)
- 2mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 41nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.308 g
Overview
This N-channel power MOSFET features StripFET™ F7 technology with an enhanced trench gate structure, achieving ultra-low on-resistance while reducing internal capacitance and gate charge for faster, more efficient switching performance.
Applications
- Switching applications
Key features
- Designed for automotive applications, AEC-Q101 qualified
- One of the lowest on-state resistance (RDS(on)) on the market
- Excellent figure of merit (FoM)
- Low Crss/Ciss ratio with EMI immunity
- High avalanche ruggedness
- Solderable gull-wing package
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BSC019N04NSGATMA1#C3288857Infineon · TDSON-8 | Infineon | TDSON-8 | 2 | ₹210.29 · 2 in stock | View |
 | STL120N8F7#C2965369ST · VDFN-8-Power | ST | VDFN-8-Power | 2,405 | ₹167.43 · 2,405 in stock | View |
 | IAUC120N04S6N013ATMA1#C3278627Infineon · TDSON-8 | Infineon | TDSON-8 | 346 | ₹129.91 · 346 in stock | View |
 | IQD020N10NM5ATMA1#C22462713Infineon · TSON-8 | Infineon | TSON-8 | 62 | ₹642.67 · 62 in stock | View |
 | BSC042NE7NS3GATMA1#C3278653Infineon · TDSON-8 | Infineon | TDSON-8 | 4,739 | ₹162.62 · 4,739 in stock | View |
