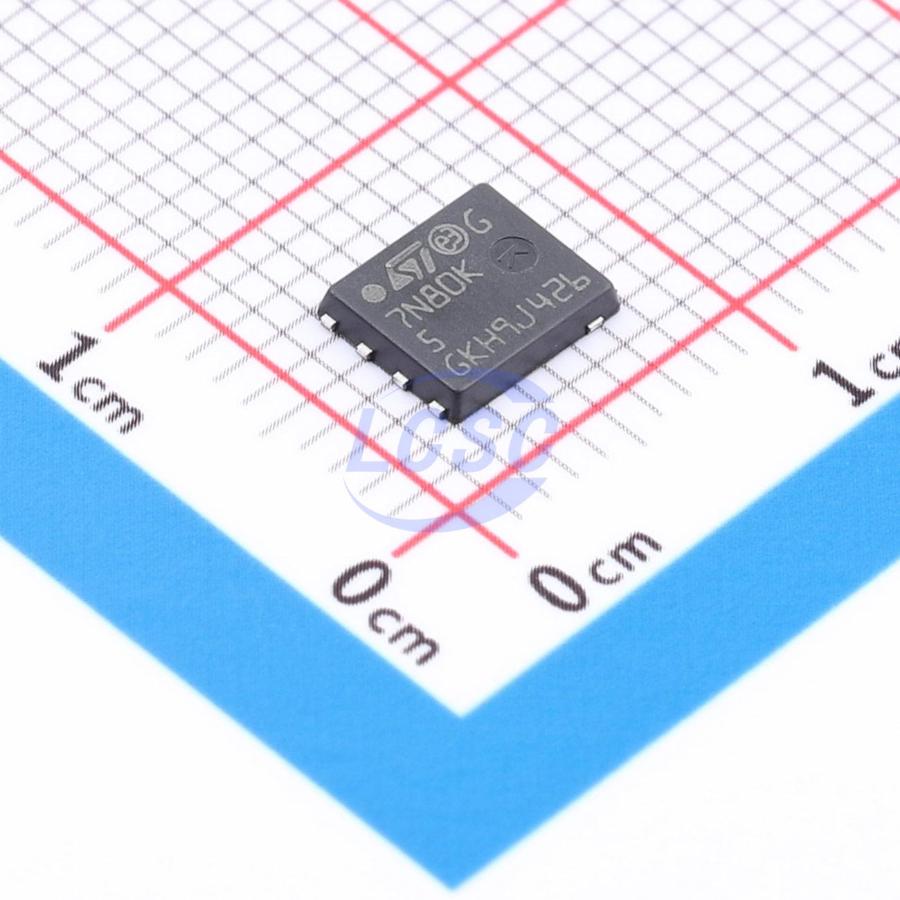

STL7N80K5

42W 800V 3.6A 1.2Ω@10V 1 N-channel N-Channel VDFN-8-Power Single FETs, MOSFETs RoHS

VDFN-8-PowerROHS3 CompliantActive

N-channel, Current: 3.6A, Voltage: 800V

Manufacturer: ST
Manufacturer part #: STL7N80K5
Store part #: C2970814
Package / case: VDFN-8-Power
Category: Single FETs, MOSFETs
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

25 in stock

#C2970814

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
1+	₹441.71	₹441.71
10+	₹433.97	₹4,339.70
30+	₹428.81	₹12,864.30
100+	₹423.65	₹42,365.00

Quantity (min 1)

1 × ₹441.71

₹441.71

excl. GST

₹521.22 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

STL7N80K5

₹441.71 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Capacitance(Coss): 30pF
Ciss-Input Capacitance: 360pF
Pd - Power Dissipation: 42W
Operating Temperature: -55℃~+150℃
Drain to Source Voltage: 800V
Current - Continuous Drain(Id): 3.6A
Reverse Transfer Capacitance (Crss): 1pF
RDS(on): 1.2Ω@10V
Number: 1 N-channel
Gate Charge(Qg): 13.4nC@10V
Vgs: ±30V
Gate Threshold Voltage (Vgs(th)): 5V
Type: N-Channel

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.28 g

Overview

This ultra-high voltage N-channel power MOSFET is designed using MDmesh™ K5 technology based on an innovative proprietary vertical structure. The result is significantly reduced on-resistance combined with ultra-low gate charge, making it ideal for applications demanding the highest power density and efficiency.
