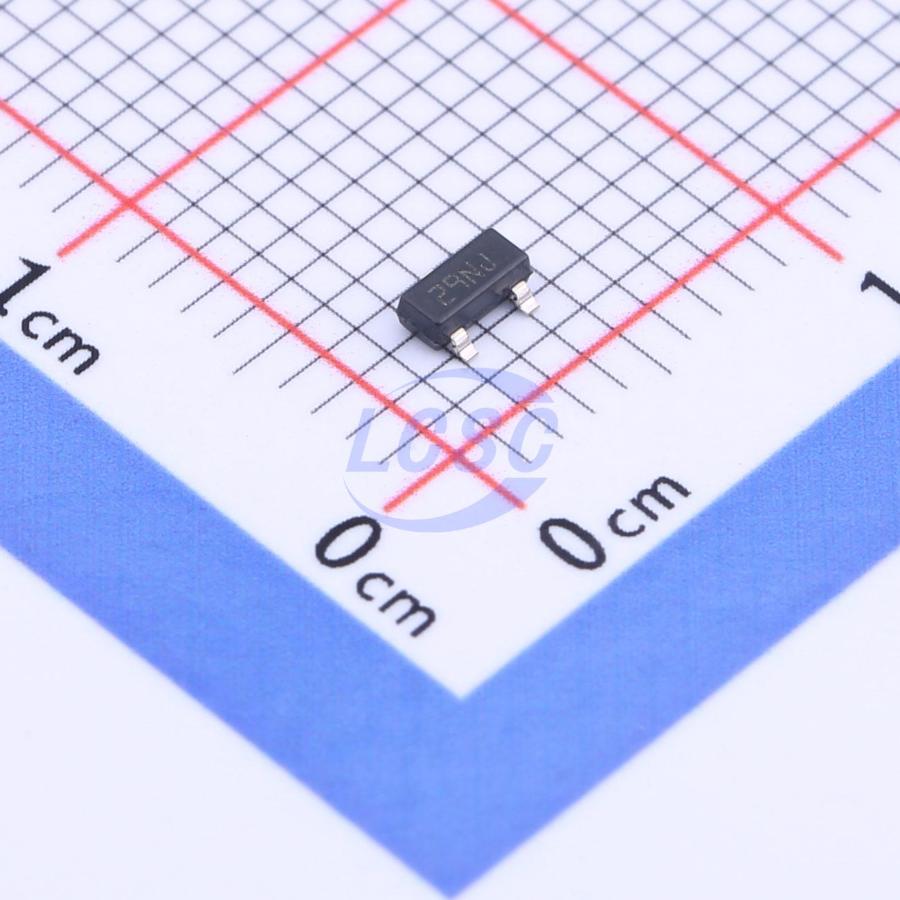

STM1061N29WX6F
200us Active Low 700mV~6V 1 SOT-23-3 Supervisors RoHS
Low Power Voltage Detector
- Manufacturer
- ST
- Manufacturer part #
- STM1061N29WX6F
- Store part #
- C2890031
- Package / case
- SOT-23-3
- Category
- Supervisors
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,761 in stock
#C2890031
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹65.05 | ₹65.05 |
| 10+ | ₹50.31 | ₹503.10 |
| 30+ | ₹44.02 | ₹1,320.60 |
| 100+ | ₹36.21 | ₹3,621.00 |
| 500+ | ₹32.74 | ₹16,370.00 |
| 1,000+ | ₹30.80 | ₹30,800.00 |
1 × ₹65.05
₹65.05
excl. GST
₹76.76 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
STM1061N29WX6F
₹65.05 for 1 + GST
Specifications
- Reset Timeout
- 200us
- output type
- Open-drain
- Operating Temperature
- -40℃~+85℃@(TA)
- Reset Active Level
- Active Low
- standby current
- 900nA
- Voltage - Supply
- 700mV~6V
- ChipType
- Voltage monitor
- Threshold Voltage
- 2.842V
- Number of Voltages Monitored
- 1
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.056 g
Overview
The STM1061 low power voltage detector provides monitoring of battery, power-supply, and regulated system voltages. A precision voltage reference and comparator monitors the VCC input and compares it with a specified voltage threshold condition. When VCC falls below a specified trip point threshold, the output (OUT) is forced low and remains asserted as long as the VCC input remains below VTH- + hysteresis (VHYS T). The STM1061 device is guaranteed to output the correct logic state for VCC down to 0.7V. They are also designed to ignore fast transients on VCC. This small, low power device is ideal for portable applications and is available in spacesaving SOT23-3 and SOT323-3 (SC70-3) packages.
Key features
- Factory-trimmed Voltage Thresholds in 0.1V Increments from 1.6 to 5.5V
- ±2% Voltage Threshold Accuracy
- Operating Voltage 0.7 to 6.0V
- Open Drain Output
- Low Supply Current of 0.9μA (typ)
- Guaranteed OUT Assertion Down to VCC = 0.7V
- Power Supply Transient Immunity
- Available in SOT23-3 and SOT323-3 (SC70-3) packages
- Operating Temperature -40 to 85°C
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| STM1061N28WX6F#C2070567ST · SOT-23-3 | ST | SOT-23-3 | 27 | ₹73.45 · 27 in stock | View | |
 | STM1061N27WX6F#C73817ST · SOT-23 | ST | SOT-23 | 1 | ₹97.28 · 1 in stock | View |
 | ME2806A293XG#C2925761MICRONE · SOT-23 | MICRONE | SOT-23 | 810 | ₹8.85 · 810 in stock | View |
 | TLV803EF29DBZR#C2868252TI · SOT-23-3 | TI | SOT-23-3 | 45 | ₹40.11 · 45 in stock | View |
 | LN61CN2702MR-G#C236392NATLINEAR · SOT-23 | NATLINEAR | SOT-23 | 680 | ₹8.57 · 680 in stock | View |
