STDatasheet (PDF)

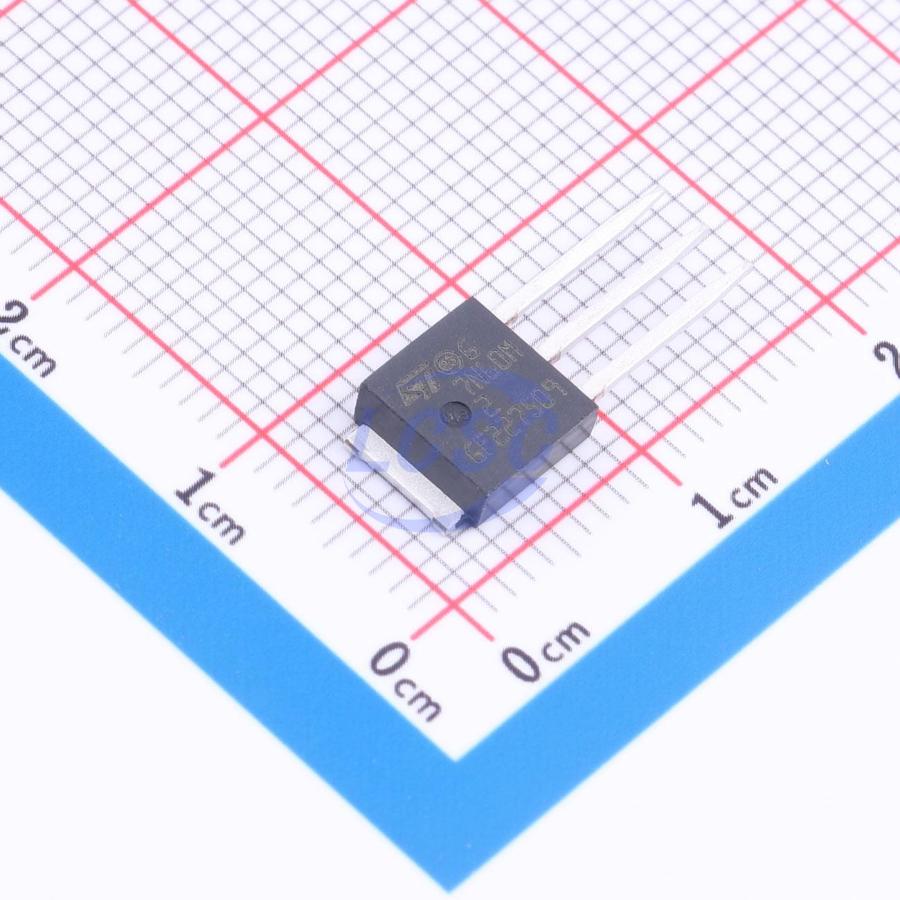

STU7N60M2
60W 600V 5A 950mΩ@10V 1 N-channel N-Channel TO-251-3 Single FETs, MOSFETs RoHS
TO-251-3ROHS3 CompliantActive
- Manufacturer
- ST
- Manufacturer part #
- STU7N60M2
- Store part #
- C2971197
- Package / case
- TO-251-3
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
32 in stock
#C2971197
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹205.70 | ₹205.70 |
| 10+ | ₹202.05 | ₹2,020.50 |
| 30+ | ₹199.68 | ₹5,990.40 |
| 100+ | ₹197.33 | ₹19,733.00 |
1 × ₹205.70
₹205.70
excl. GST
₹242.73 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 75 per tube
STU7N60M2
₹205.70 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 15.7pF
- Ciss-Input Capacitance
- 271pF
- Pd - Power Dissipation
- 60W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 600V
- Current - Continuous Drain(Id)
- 5A
- Reverse Transfer Capacitance (Crss)
- 0.68pF
- RDS(on)
- 950mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 8.8nC@10V
- Vgs
- ±25V
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 75 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 1.012 g
Overview
These devices are N-channel power MOSFETs developed using MDmesh M2 technology. Thanks to their stripe layout and improved vertical structure, these devices feature low on-resistance and optimized switching characteristics, making them suitable for the most demanding high-efficiency converters.
Applications
- Switching applications
Key features
- Ultra-low gate charge
- Excellent output capacitance (Coss) characteristics
- 100% avalanche tested
- Zener protected
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | STU6N60DM2#C2688530ST · TO-251-3(IPAK) | ST | TO-251-3(IPAK) | 1 | ₹86.52 · 1 in stock | View |
| STU7N65M2#C5268716ST · IPAK | ST | IPAK | 30 | ₹242.16 · 30 in stock | View | |
 | 7NM70G-TMN2-T#C171512UTC · TO-251N | UTC | TO-251N | 1 | ₹63.48 · 1 in stock | View |
 | ASU65R550E#C19192891ANHI · TO-251 | ANHI | TO-251 | 64 | ₹73.18 · 64 in stock | View |
 | IPS70R1K4CEAKMA1#C3289107Infineon · TO-251-3-11 | Infineon | TO-251-3-11 | 15 | ₹262.92 · 15 in stock | View |
