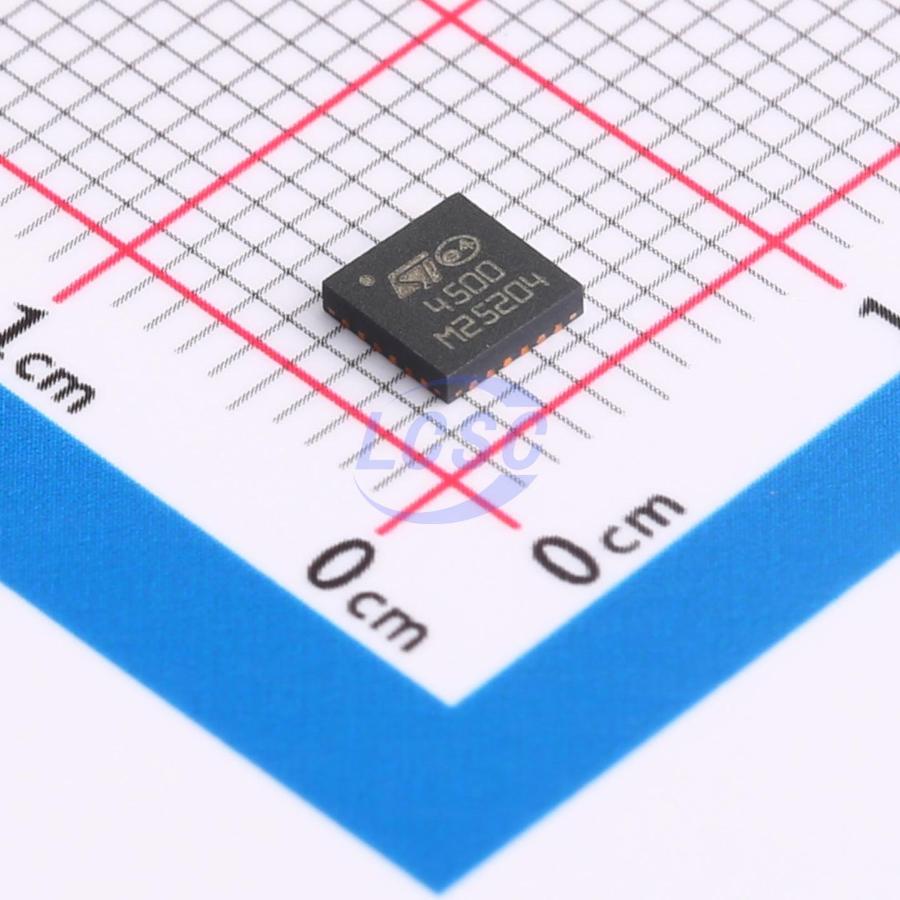

STUSB4500QTR

A USB power delivery controller that addresses sink devices. It implements a proprietary algorithm to allow the negotiation of a power delivery contract with a source without MCU support (auto-run mode). PDO profiles are configured in an integrated non-volatile memory. The device supports dead battery mode and is suited for sink devices powered from dead battery state and requiring high power charging profile to be fully operational. Thanks to its technology, it implements high voltage features to protect the CC pins against short-circuits to VBUS up to 22 V and to support high voltage on the VBUS pins directly connected to the VBUS power path up to 28 V.

Applications

• Printers, camcorders, cameras
• IoT, drones, accessories and battery powered devices
• LED lighting and industrial
• Toys, gaming, POS, scanner
• Healthcare and handheld devices
• Any Type-C sink device

Key features

• Auto-run Type-C and USB PD sink controller
• Dead battery mode support
• Up to 3 sink PDO configurable profiles
• Dual high power charging path support
• Integrated VBUS switch gate drivers (PMOS)
• Integrated VBUS voltage monitoring
• Internal and/or external VBUS discharge paths
• Short-to-VBUS protections on CC pins (22 V)
• High voltage capability on VBUS pins (28 V)
• Dual power supply (VSYS and/or VDD): VSYS = [3.0 V; 5.5 V], VDD = [4.1 V; 22 V]
• Debug accessory mode support
• Temperature range: -40 °C up to 105 °C
• ESD: 3 kV HBM - 1.5 kV CDM
• Certified: USB Type-C rev 1.2 USB PD rev 2.0 (TID #1000133)
• Interoperable with USB PD rev 3.0
