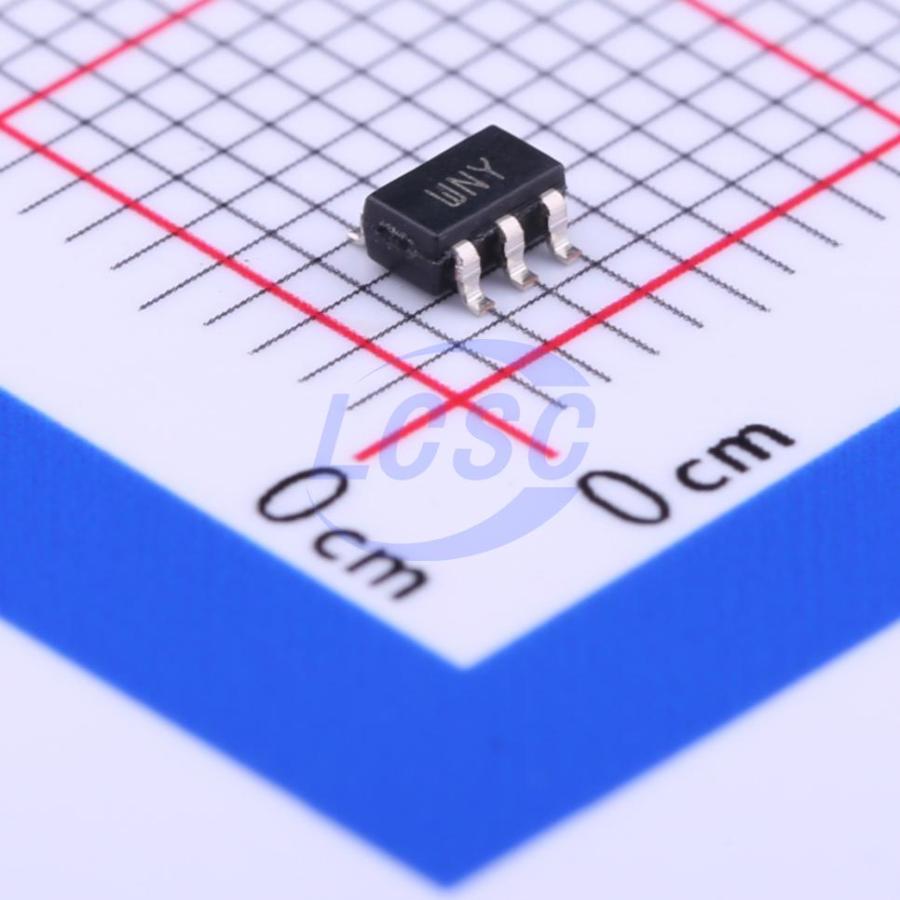

STWD100NYWY3F
210ms Active Low 2.7V~5.5V 1 SOT-23-5 Supervisors RoHS
Watchdog timer circuit
- Manufacturer
- ST
- Manufacturer part #
- STWD100NYWY3F
- Store part #
- C46043
- Package / case
- SOT-23-5
- Category
- Supervisors
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
35,099 in stock
#C46043
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹51.82 | ₹51.82 |
| 10+ | ₹39.90 | ₹399.00 |
| 30+ | ₹34.04 | ₹1,021.20 |
| 100+ | ₹28.84 | ₹2,884.00 |
| 500+ | ₹27.54 | ₹13,770.00 |
| 1,000+ | ₹26.67 | ₹26,670.00 |
1 × ₹51.82
₹51.82
excl. GST
₹61.15 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
STWD100NYWY3F
₹51.82 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+125℃@(TA)
- Reset Timeout
- 210ms
- output type
- Open-drain
- Function
- Watchdog timer;Manual reset input
- Reset Active Level
- Active Low
- standby current
- 13uA
- Voltage - Supply
- 2.7V~5.5V
- Number of Voltages Monitored
- 1
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.047 g
Overview
The STWD100 watchdog timer circuits are self-contained devices which prevent system failures that are caused by certain types of hardware errors (non-responding peripherals, bus contention, etc.) or software errors (bad code jump, code stuck in loop, etc.). The STWD100 watchdog timer has an input, WDl, and an output, WDO（overline）. The input is used to clear the internal watchdog timer periodically within the specified timeout period, twd. While the system is operating correctly, it periodically toggles the watchdog input, WDl. If the system fails, the watchdog timer is not reset, a system alert is generated and the watchdog output, WDO, is asserted. The STWD100 circuit also has an enable pin, EN, which can enable or disable the watchdog functionality. The EN（overline） pin is connected to the internal pull-down resistor. The device is enabled if the EN（overline） pin is left floating. WDO output is available in open drain or push-pull configuration.
Applications
- Telecommunications
- Alarm systems
- Industrial equipment
- Networking
- Medical equipment
- UPS (uninterruptible power supply)
Key features
- Current consumption 13 μA typ.
- Available watchdog timeout periods are 3.4 ms, 6.3 ms, 102 ms and 1.6 s
- Chip enable input
- Open drain or push-pull WDO output
- Operating temperature range: -40 to +125 °C
- Package SOT23-5, SC70-5 (SOT323-5)
- ESD performance - HBM: 2000 V, RCDM: 1000V
