MDD(Microdiode Semiconductor)
2N7002KN-Channel 60V 300mA 300mW Surface Mount SOT-23
From
₹2.32
25,99,250 in stock
VBsemi ElecDatasheet (PDF)

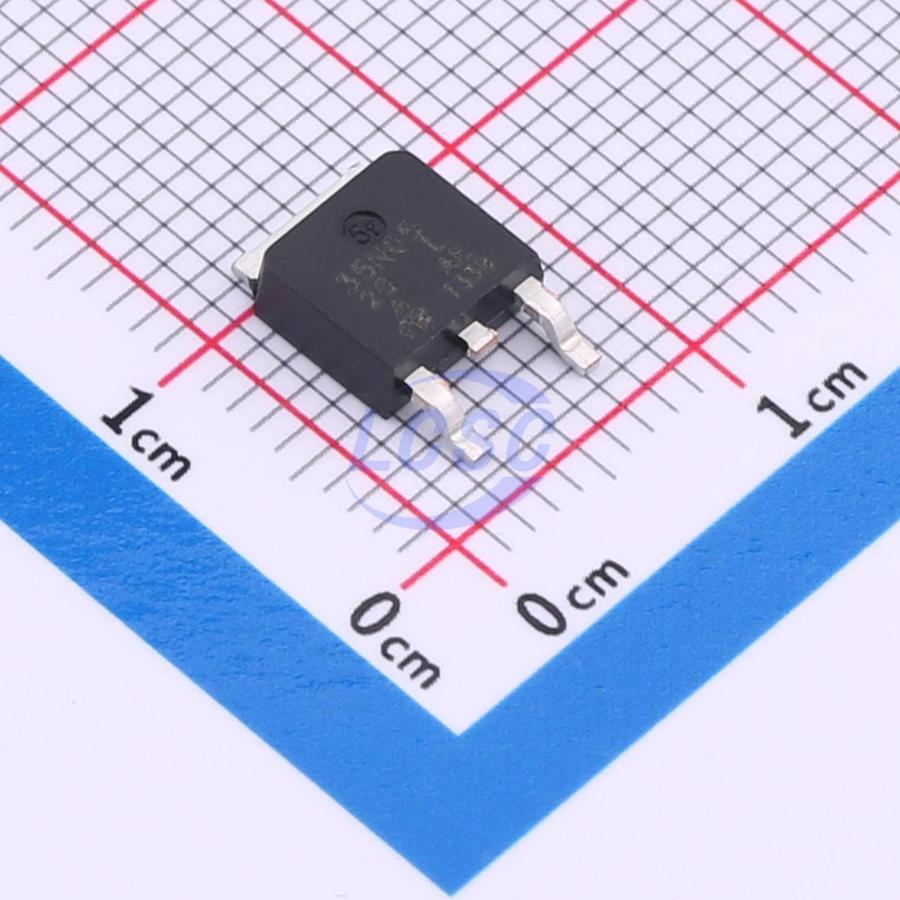

SUD35N05-26L-E3-VB
60V 58A 20mΩ@10V 1 N-channel N-Channel TO-252 Single FETs, MOSFETs
TO-252RoHSActive
MOSFET N-CH 60V 58A TO-252
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- SUD35N05-26L-E3-VB
- Store part #
- C19632170
- Package / case
- TO-252
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
38 in stock
#C19632170
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹110.44 | ₹110.44 |
| 10+ | ₹94.08 | ₹940.80 |
| 30+ | ₹85.69 | ₹2,570.70 |
| 100+ | ₹77.50 | ₹7,750.00 |
| 500+ | ₹57.48 | ₹28,740.00 |
| 1,000+ | ₹54.90 | ₹54,900.00 |
1 × ₹110.44
₹110.44
excl. GST
₹130.32 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
SUD35N05-26L-E3-VB
₹110.44 for 1 + GST
Specifications
- Drain to Source Voltage
- 60V
- Output Capacitance(Coss)
- 470pF
- Current - Continuous Drain(Id)
- 58A
- Ciss-Input Capacitance
- 2.65nF
- Reverse Transfer Capacitance (Crss)
- 225pF
- RDS(on)
- 20mΩ@10V
- Number
- 1 N-channel
- Gate Threshold Voltage (Vgs(th))
- 3V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.34 g
Overview
Key features
- Junction temperature 175 °C
- Trench power MOSFET
- RoHS compliant
- N-channel MOSFET
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LR2905Z-VB#C20417675VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 20 | ₹79.05 · 20 in stock | View |
 | NP52N06SLG-VB#C22389495VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 20 | ₹98.62 · 20 in stock | View |
 | IPD127N06LG-VB#C29778833VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 12 | ₹82.56 · 12 in stock | View |
 | 2SK3402-AZ-VB#C45350920VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 10 | ₹116.25 · 10 in stock | View |
 | AUIRFR2905ZTRL-VB#C45350923VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 10 | ₹116.25 · 10 in stock | View |
