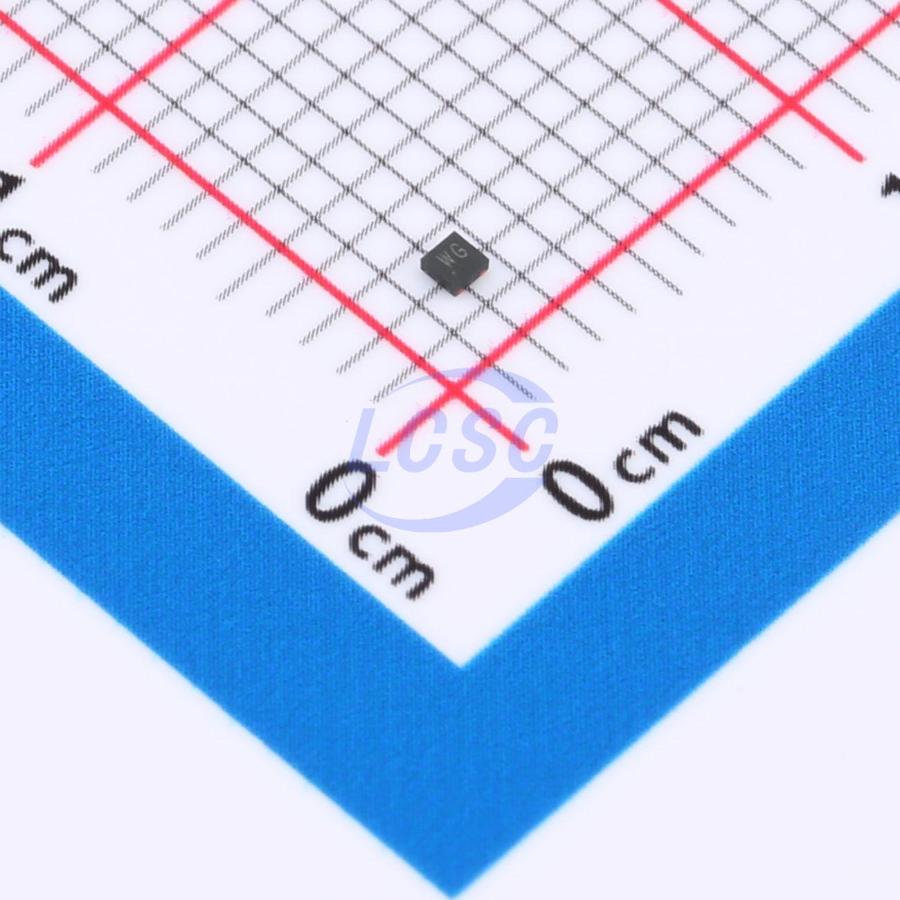

SUL6018D4-30
3V Positive Fixed DFN-4L(1x1) Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
DFN-4L(1x1)RoHSActive
IC REG LINEAR 3V 350mA DFN-4L(1x1)
- Manufacturer
- Suntek
- Manufacturer part #
- SUL6018D4-30
- Store part #
- C41365254
- Package / case
- DFN-4L(1x1)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,430 in stock
#C41365254
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹44.24 | ₹221.20 |
| 50+ | ₹34.74 | ₹1,737.00 |
| 150+ | ₹30.67 | ₹4,600.50 |
| 500+ | ₹25.59 | ₹12,795.00 |
| 2,500+ | ₹23.32 | ₹58,300.00 |
| 5,000+ | ₹21.98 | ₹1,09,900.00 |
5 × ₹44.24
₹221.20
excl. GST
₹261.02 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 10,000 per reel
SUL6018D4-30
₹221.20 for 5 + GST
Specifications
- Output Voltage
- 3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃
- Supply Current (Iq)
- 1.3uA
- Output Configuration
- Positive
- Operating Voltage
- 5.5V
- Output Current
- 350mA
- Output Type
- Fixed
- Features
- Enable control;Over Current Protection;Short Circuit Protection;Thermal shutdown;Output discharge
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 10,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.01 g
Overview
SUL6018 is an ultra-compact, ultra-low quiescent current LDO regulator capable of delivering 350mA output current with excellent transient performance. The device features a 1.3μA ultra-low quiescent current, designed specifically for applications where quiescent current is a critical parameter. Even in dropout mode, the device maintains low quiescent current consumption, further extending battery life. The 1.3μA low quiescent current and 0.05μA shutdown current make it ideal for battery-powered applications requiring long service life. Additional features include current limiting, over-temperature protection, and output discharge. The SUL6018 is available in SOT23-5 and DFN-1x1-4L packages. Standard products are lead-free and halogen-free.
Applications
- Portable battery-powered devices
- Ultra-low-power microcontrollers
- Laptop computers
Key features
- Input voltage range: 1.2V to 5.5V
- Ultra-low quiescent current: 1.3μA
- High PSRR: 85dB at 1KHz
- Output voltage range: Adjustable mode: 0.8V to 4.5V; Fixed mode: 0.8V~4.5V, 0.05V steps
- High output accuracy: ±1%
- Ultra-low dropout voltage: 150mV at VOUT ≥ 3V and 350mA output current
- Low noise: 30 µVrms
- Current limiting protection
- Over-temperature protection
- Output active discharge function
