Silergy

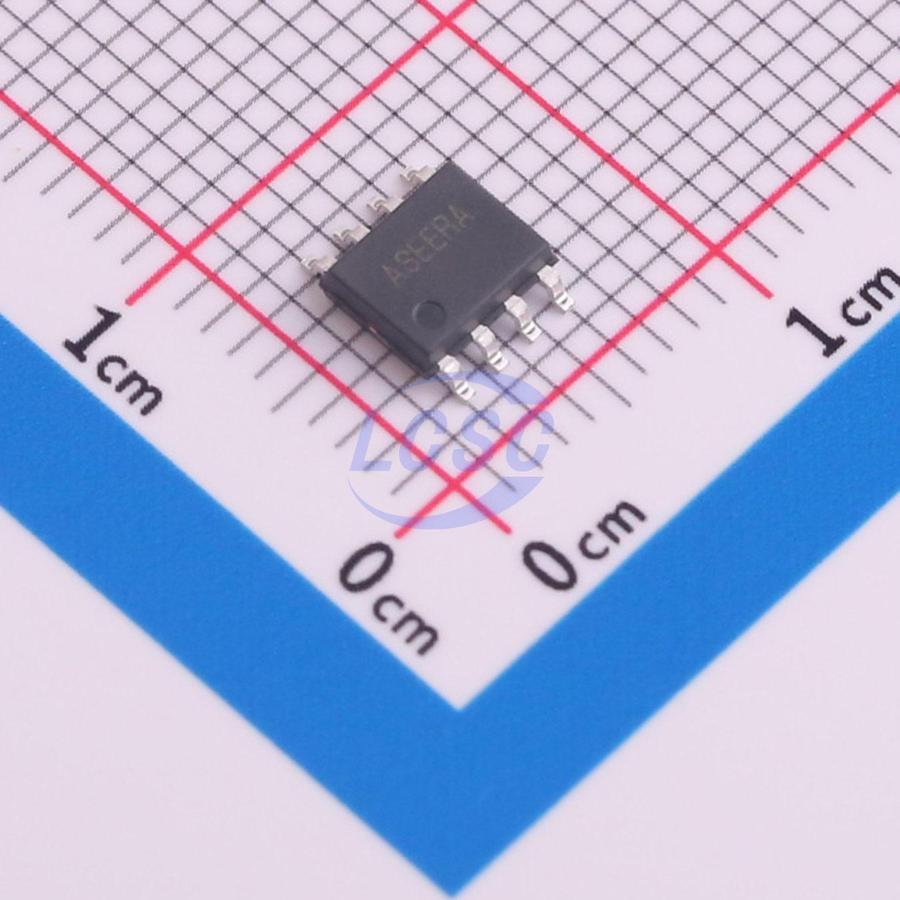

SY50583FAC

45kHz 350mA 1.1W 700V 9V~16V Buck 12V SOP-8 AC DC Converters, Offline Switchers

SOP-8RoHSActive

Buck Regulator with CC/CV control

Manufacturer: Silergy
Manufacturer part #: SY50583FAC
Store part #: C21726211
Package / case: SOP-8
Category: AC DC Converters, Offline Switchers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,334 in stock

#C21726211

Stock & price checked 18 h ago

Quantity	Unit price	Pack price
1+	₹55.39	₹55.39
10+	₹49.60	₹496.00
30+	₹46.60	₹1,398.00
100+	₹43.58	₹4,358.00
500+	₹41.87	₹20,935.00
1,000+	₹41.01	₹41,010.00

Quantity (min 1)

1 × ₹55.39

₹55.39

excl. GST

₹65.36 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

SY50583FAC

₹55.39 for 1 + GST

Specifications

Operating Temperature: -40℃~+125℃
Frequency - Switching: 45kHz
Output Current: 350mA
Pd - Power Dissipation: 1.1W
Voltage - Breakdown: 700V
Voltage - Supply: 9V~16V
Topology: Buck
Features: Quasi-resonant/valley switching;Adjustable current limiting;Under-voltage lockout;Hiccup current limiting;Over Voltage Protection;Short Circuit Protection;Overtemperature protection (OTP)
Output Voltage: 12V
Working Mode: QR

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.303 g

Overview

The SY50583 is a high performance controller with constant current and constant voltage. It integrates a 700V MOSFET to decrease physical volume. In order to reduce the switching losses and improve EMI performance, Quasi-Resonant switching mode is applied, which means to turn on the power MOSFET at valley of drain voltage; the start up current of SY50583 is rather small (15μA typically) to reduce the standby power loss further; the maximum switching frequency is clamped to 45kHz to reduce switching losses and improve EMI performance when the converter is operated at light load condition. SY50583 provides reliable protections such as Short Circuit Protection (SCP), Over Voltage Protection (OVP), Over Temperature Protection (OTP), etc. SY50583 is available with SO8 package.

Key features

Integrated 700V MOSFET
CC/CV control eliminates Aux-winding Quasi-Resonant (QR) mode to achieve low switching losses
Low start up current: 15μA typical
Maximum frequency limit: 45kHz
Compact package: SO8
