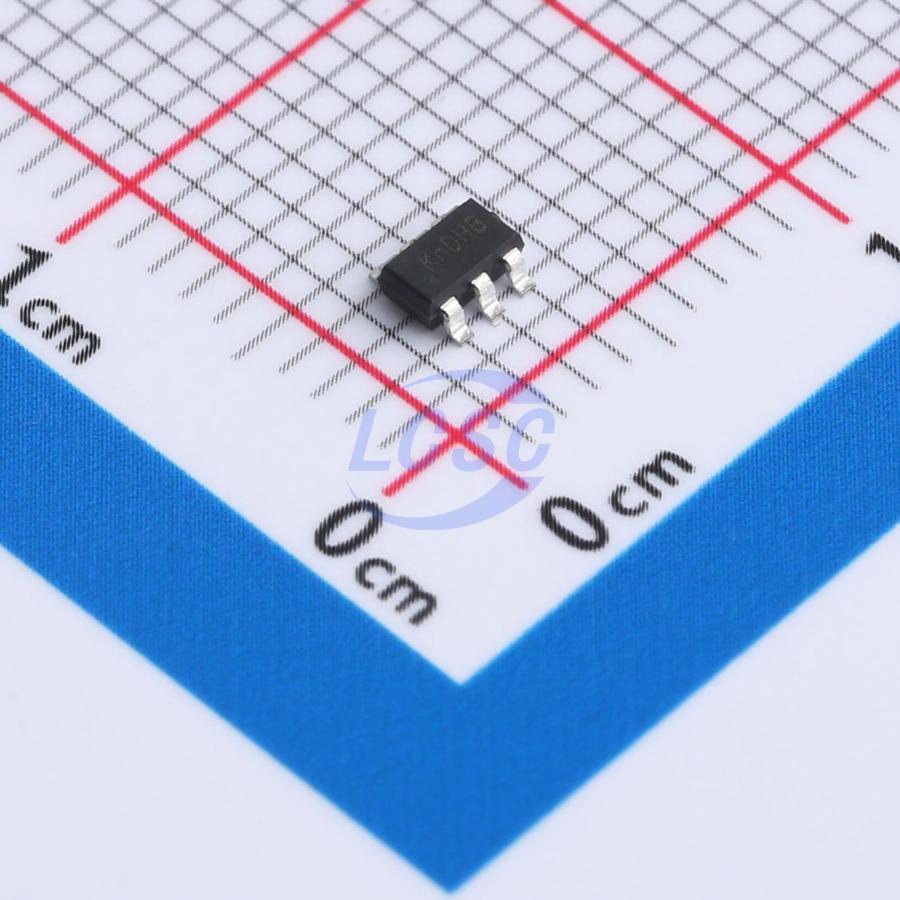

SY6288F1ABC
1 3A Active High Load Switch SOT-23-6 Power Distribution Switches, Load Drivers
SOT-23-6RoHSActive
3A Low Loss Power Distribution Switch
- Manufacturer
- Silergy
- Manufacturer part #
- SY6288F1ABC
- Store part #
- C2875458
- Package / case
- SOT-23-6
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,620 in stock
#C2875458
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹23.76 | ₹118.80 |
| 50+ | ₹18.63 | ₹931.50 |
| 150+ | ₹16.43 | ₹2,464.50 |
| 500+ | ₹13.68 | ₹6,840.00 |
| 3,000+ | ₹12.46 | ₹37,380.00 |
| 6,000+ | ₹11.72 | ₹70,320.00 |
5 × ₹23.76
₹118.80
excl. GST
₹140.18 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SY6288F1ABC
₹118.80 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+150℃
- Features
- Overcurrent Protection;Short-Circuit Protection;Over temperature protection;Reverse current blocking;Output discharge function;Soft-start;Under-voltage lockout
- number of channels
- 1
- Maximum Continuous Current
- 3A
- Control Input Logic
- Active High
- RDS(on)
- 45mΩ
- Operating Voltage
- 2.5V~5.5V
- Type
- Load Switch
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.025 g
Overview
SY6288F1/F2 is an ultra-low RDS(ON), 3A Low Loss Power Distribution switch with current limit to protect the power source from over current and short circuit conditions. It incorporates over temperature protection and reverse blocking function.
Applications
- USB 3.1 Application
- USB 3G Datacard
- USB Dongle
- MiniPCI Accessories
- USB Charger
- Public Place Multi - USB Charger
Key features
- Extremely Low Power Path Resistance: 45 mΩ (typ.)
- 3A load current capability
- Two Enable polarities: SY6288F1ABC: Active High SY6288F2ABC: Active Low
- Over temperature shutdown and automatic retry
- Reverse blocking (no body diode)
- Fault flag (OCB) output for over current and fault conditions
- Programmable current limitation
- At shutdown, OUT can be forced higher than IN
- Built-in soft-start
- Compact package minimizes the board space: SOT23 - 6
- RoHS Compliant and Halogen Free
- UL certification NO. 20160229 - E333762
