SilergyDatasheet (PDF)

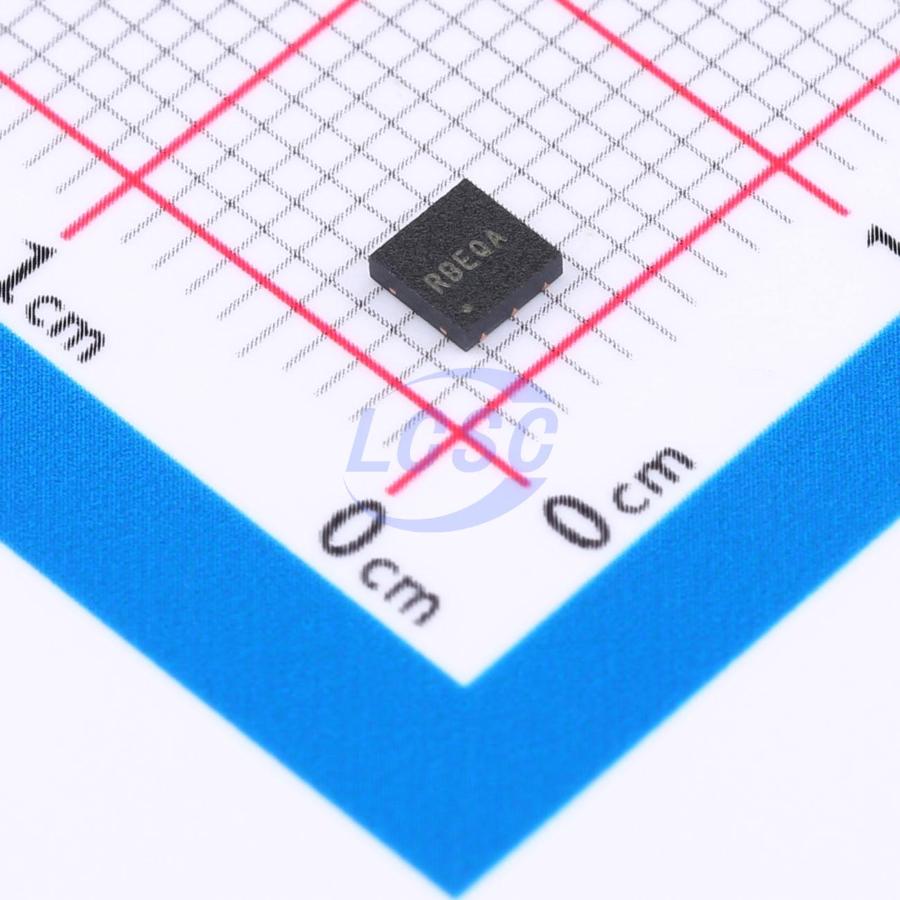

SY6301DSC
1V~5.5V Positive Adjustable DFN-6(3x3) Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
DFN-6(3x3)RoHSActive
Super Low Dropout 1A LDO Regulator
- Manufacturer
- Silergy
- Manufacturer part #
- SY6301DSC
- Store part #
- C2856238
- Package / case
- DFN-6(3x3)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,155 in stock
#C2856238
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹45.64 | ₹228.20 |
| 50+ | ₹36.03 | ₹1,801.50 |
| 150+ | ₹31.90 | ₹4,785.00 |
| 500+ | ₹26.76 | ₹13,380.00 |
| 2,500+ | ₹23.32 | ₹58,300.00 |
| 5,000+ | ₹21.95 | ₹1,09,750.00 |
5 × ₹45.64
₹228.20
excl. GST
₹269.28 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
SY6301DSC
₹228.20 for 5 + GST
Specifications
- Output Voltage
- 1V~5.5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Ta)
- Supply Current (Iq)
- 60uA
- Output Configuration
- Positive
- Operating Voltage
- 5.5V
- Output Current
- 1A
- Output Type
- Adjustable
- Features
- Enable control;Over Current Protection;Short Circuit Protection;Output discharge;Thermal shutdown
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.11 g
Overview
The SY6301 is a super low dropout LDO regulator with small package, capable of delivering up to 1A output current.
Applications
- Portable Communication Equipments
- Hand - Held Instruments, Notebook PC
- Camcorders and Cameras
Key features
- Input Voltage Range: 1.6 - 5.5V
- Output Voltage Accuracy: ±3%
- Up to 1A Output Current
- Low Dropout Voltage: Typ. 0.32V at IoUT = 1A, VOUT = 1.5V; Typ. 0.18V at IoUT = 1A, VOUT = 2.8V
- Current Limiting Protection
- Thermal Shutdown Protection
- Quiescent Current: 60μA
- Output Auto - discharge Function
- Over Temperature Protection
- RoHS Compliant and Halogen Free
- Compact Package: DFN3×3 - 6
