SilergyDatasheet (PDF)

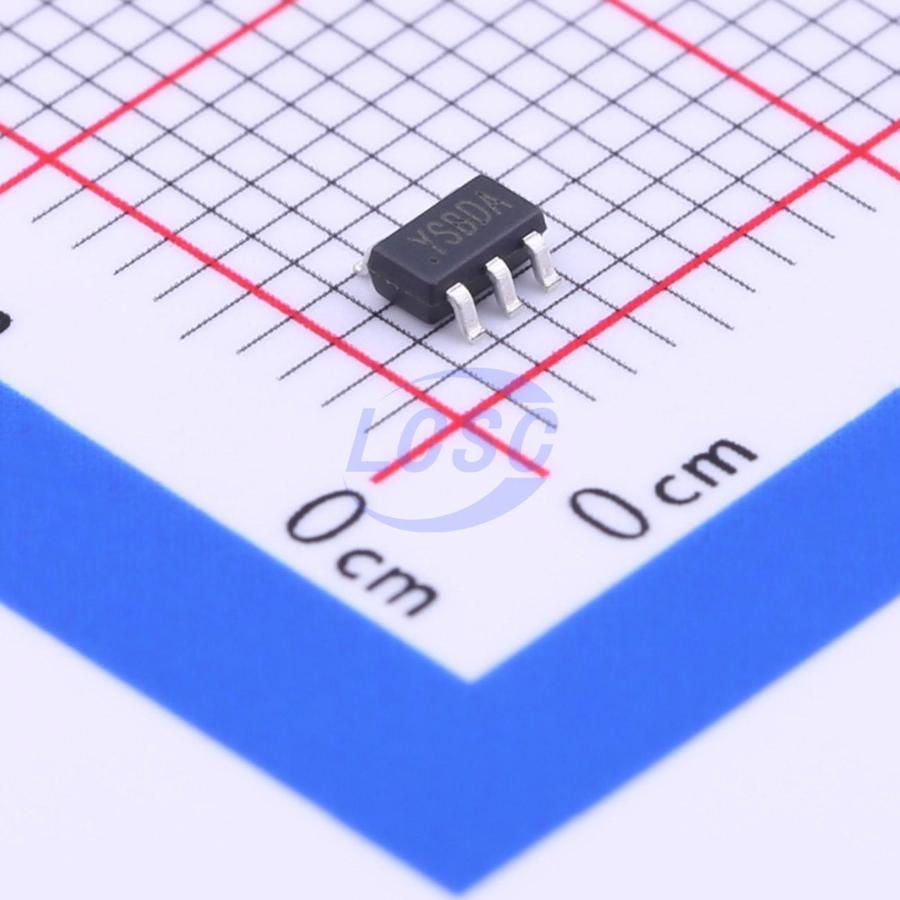

SY6345AAC
600mV~39.7V Positive Adjustable SOT-23-5 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT-23-5RoHSActive
40V, 300mA LDO Regulator
- Manufacturer
- Silergy
- Manufacturer part #
- SY6345AAC
- Store part #
- C98119
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,900 in stock
#C98119
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹34.93 | ₹174.65 |
| 50+ | ₹27.07 | ₹1,353.50 |
| 150+ | ₹23.71 | ₹3,556.50 |
| 500+ | ₹19.51 | ₹9,755.00 |
| 3,000+ | ₹17.64 | ₹52,920.00 |
| 6,000+ | ₹16.52 | ₹99,120.00 |
5 × ₹34.93
₹174.65
excl. GST
₹206.09 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SY6345AAC
₹174.65 for 5 + GST
Specifications
- Output Voltage
- 600mV~39.7V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 7uA
- Output Configuration
- Positive
- Output Current
- 300mA
- Operating Voltage
- 40V
- Features
- Enable control;Over Current Protection;Thermal shutdown;Input under-voltage protection;Short Circuit Protection
- Output Type
- Adjustable
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.049 g
Overview
SY6345 is an efficient, precise LDO designed for high input voltage and ultra low quiescent current applications. SY6345 provides adjustable output voltage with +/-2% accuracy and very low drop out (300mV at 300mA). Other features include the operation stability with low ESR ceramic or tantalum capacitors due to the optimized internal compensation, over current protection and thermal shutdown. SY6345 is available in SOT23 - 5 package.
Applications
- Battery powered Applications
- Automotive Applications
- Gateway Applications
- Remote Keyless Entry Systems
- SMPS post - regulator/DC - DC modules
Key features
- Wide input voltage range: 4V to 40V
- Low Dropout Voltage (300mV @ 300mA)
- Ultra-low quiescent current
- Extremely low shutdown current
- Stability with tantalum or ceramic capacitors
- Excellent load and line regulation
- +/-2%/0.6V reference accuracy
- 300mA maximum load current
- Enable control input
- Over current protection
- Thermal shutdown
- Compact SOT23 - 5 package
