SilergyDatasheet (PDF)

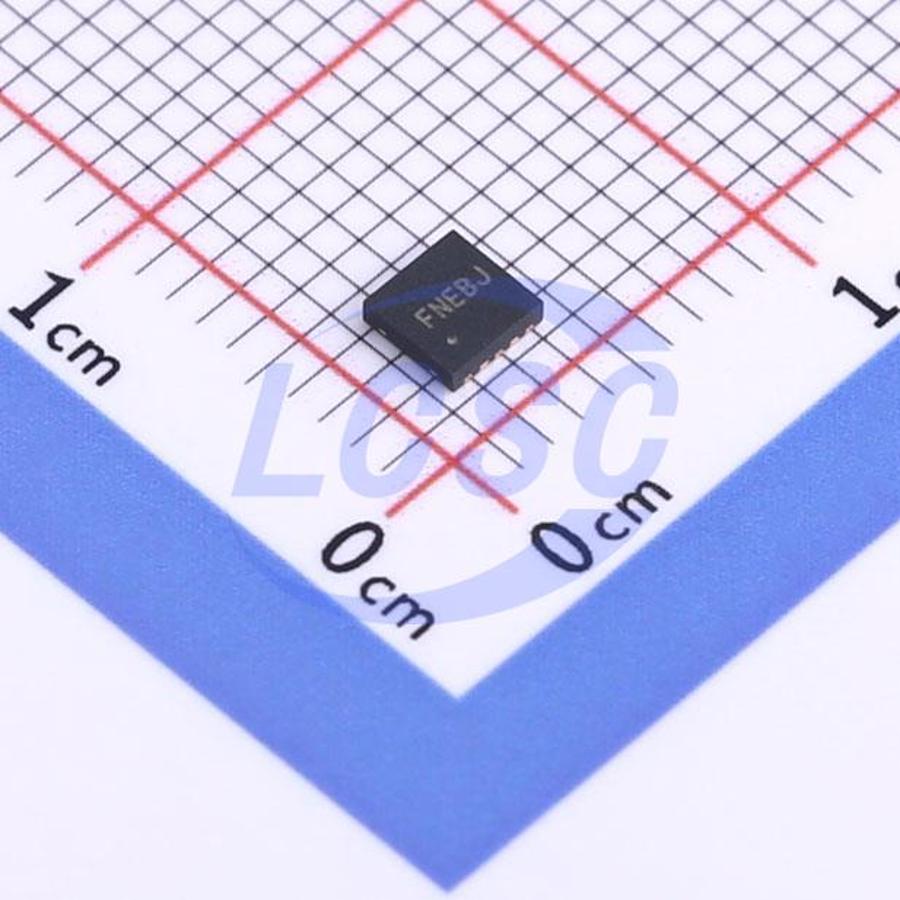

SY6875ADBC
1 Active High Load Switch DFN-10-EP(3x3) Power Distribution Switches, Load Drivers
DFN-10-EP(3x3)RoHSActive
SY6875A Programmable Current Limit Switch with Input Voltage Range Selection and Output Voltage Clamping
- Manufacturer
- Silergy
- Manufacturer part #
- SY6875ADBC
- Store part #
- C3030895
- Package / case
- DFN-10-EP(3x3)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,087 in stock
#C3030895
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹79.79 | ₹79.79 |
| 10+ | ₹64.22 | ₹642.20 |
| 30+ | ₹56.44 | ₹1,693.20 |
| 100+ | ₹48.66 | ₹4,866.00 |
| 500+ | ₹44.11 | ₹22,055.00 |
| 1,000+ | ₹41.74 | ₹41,740.00 |
1 × ₹79.79
₹79.79
excl. GST
₹94.15 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
SY6875ADBC
₹79.79 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+125℃
- Features
- Overcurrent Protection;Short-Circuit Protection;Over temperature protection;Under-voltage lockout;Soft-start;Output discharge function
- number of channels
- 1
- Control Input Logic
- Active High
- Operating Voltage
- 2.5V~15V
- RDS(on)
- 40mΩ
- Type
- Load Switch
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.25 g
Overview
SY6875A is a programmable current limit switch with input voltage range selection and output voltage clamping. Extremely low RDS(ON) of the integrated protection N-channel FET helps to reduce power loss during the normal operation. Programmable soft-start time controls the slew rate of the output voltage during the start-up time. Independent enable control allows the complicated system sequencing control. It integrates the over-temperature protection shutdown and autorecovery with hystersis. This IC along with small DFN3X3-10 footprint provides small PCB area application.
Applications
- Notebook PC
- I-pad Mini
- Server
- Service PC
Key features
- Wide Input Voltage Range from 2.5V to 15V with surge up to 30V
- Extremely Low RDS(ON) for the Integrated Protection Switch: 40 mΩ
- Programmable Soft-Start Time
- Programmable Current Limit
- Short-circuit Protection
- Selectable Input Range and Clamping Output Voltage Threshold
- Enable Interface Pin
- Thermal Shutdown Protection & Auto Recovery
- RoHS Compliant and Halogen Free
- Compact package: DFN3X3-10
