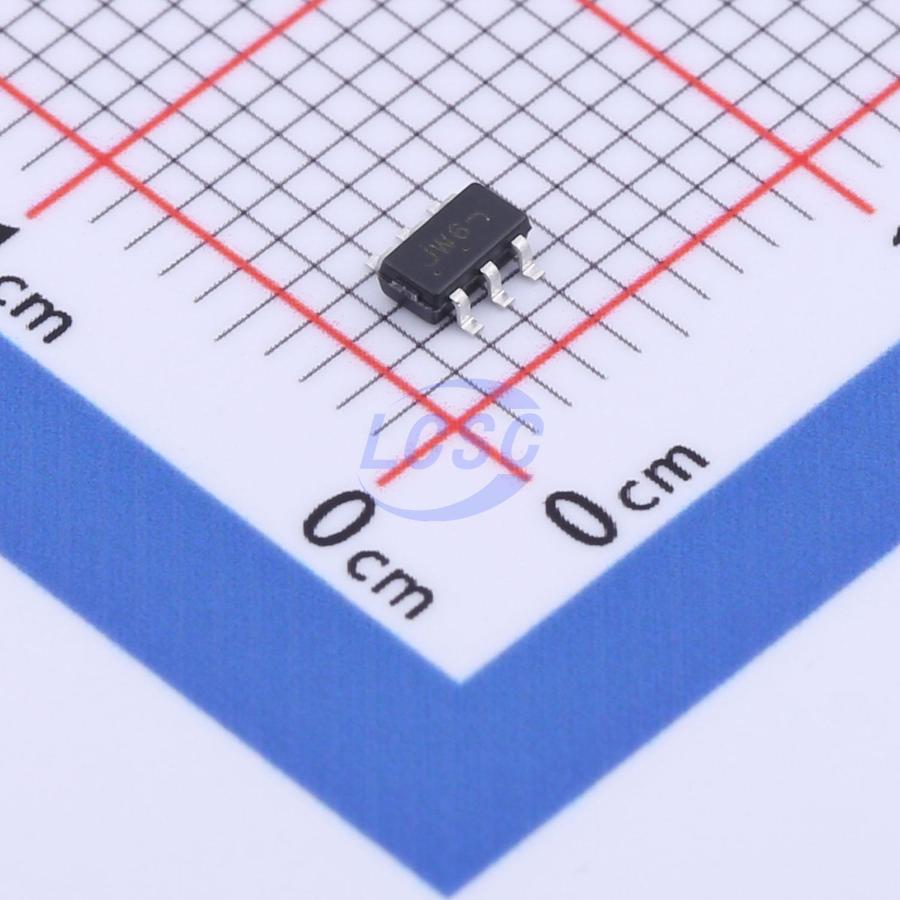

SZNUD3124DMT1G

This micro−integrated part provides a single component solution to switch inductive loads such as relays, solenoids, and small DC motors without the need of a free−wheeling diode. It accepts logic level inputs, thus allowing it to be driven by a large variety of devices including logic gates, inverters, and microcontrollers.

Applications

• Automotive and Industrial Environment
• Drives Window, Latch, Door, and Antenna Relays

Key features

• Provides Robust Interface between D.C. Relay Coils and Sensitive Logic
• Capable of Driving Relay Coils Rated up to 150 mA at 12 Volts
• Replaces 3 or 4 Discrete Components for Lower Cost
• Internal Zener Eliminates Need for Free−Wheeling Diode
• Meets Load Dump and other Automotive Specs
• SZ Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q101 Qualified and PPAP Capable
• These are Pb−Free Devices
