TOSHIBADatasheet (PDF)

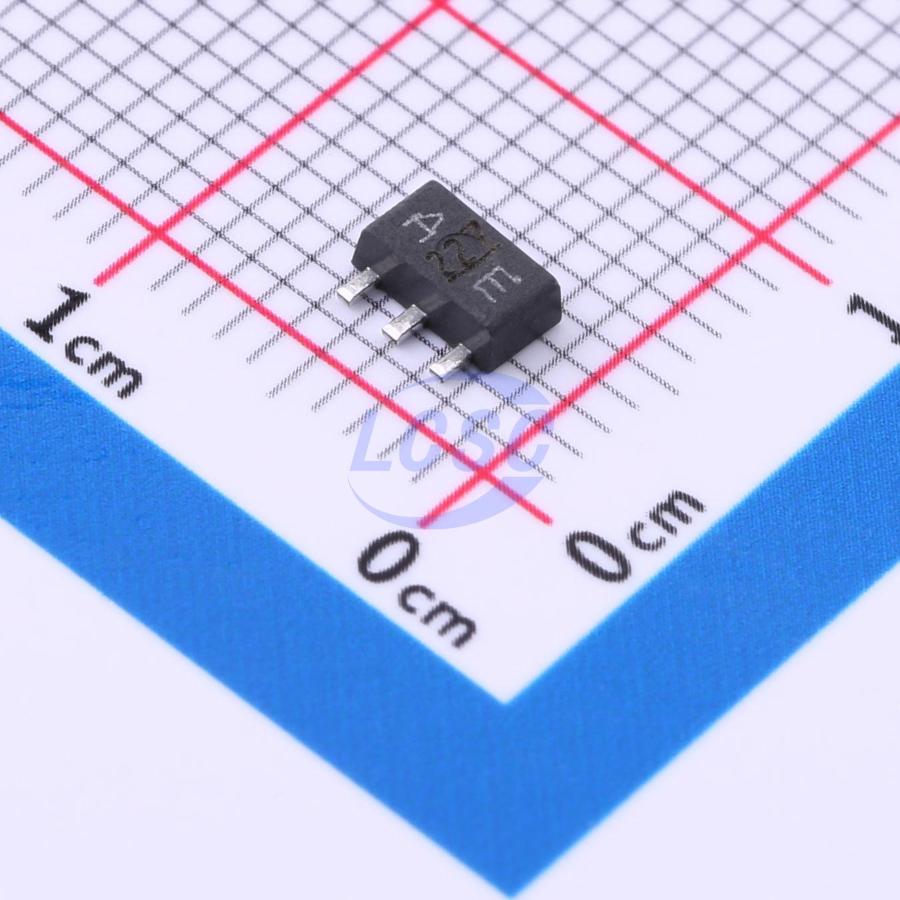

TA78L05F(TE12L,F)
Linear Voltage Regulator IC Positive Fixed 1 Output 150mA SOT-89-3
SOT-89-3RoHSActive
3-Terminal Positive Voltage Regulators
- Manufacturer
- TOSHIBA
- Manufacturer part #
- TA78L05F(TE12L,F)
- Store part #
- C4153784
- Package / case
- SOT-89-3
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
11,280 in stock
#C4153784
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹37.26 | ₹186.30 |
| 50+ | ₹29.05 | ₹1,452.50 |
| 150+ | ₹25.53 | ₹3,829.50 |
| 1,000+ | ₹21.15 | ₹21,150.00 |
| 2,000+ | ₹19.20 | ₹38,400.00 |
| 5,000+ | ₹18.02 | ₹90,100.00 |
5 × ₹37.26
₹186.30
excl. GST
₹219.83 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
TA78L05F(TE12L,F)
₹186.30 for 5 + GST
Specifications
- Output Voltage
- 5V
- Number of Outputs
- 1
- Operating Temperature
- -30℃~+85℃@(Ta)
- Supply Current (Iq)
- 3.1mA
- Output Configuration
- Positive
- Output Current
- 150mA
- Operating Voltage
- 35V
- Output Type
- Fixed
- Features
- Over Current Protection;Thermal shutdown
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.12 g
Overview
Key features
- Best suited to power supply for TTL/CMOS.
- No external parts needed.
- Built-in overheating protection.
- Built-in overcurrent protection.
- Max output current of 150 mA (Tj = 25°C).
- Packaged in PW-mini (SOT-89).
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | KIA78L05F-RTF/P#C125245KEC · SOT-89-3 | KEC | SOT-89-3 | 3,300 | ₹21.04 · 3,300 in stock | View |
 | TA78L05F(TE12L.F)#C2762680TOSHIBA · HSOP-3 | TOSHIBA | HSOP-3 | 136 | ₹79.70 · 136 in stock | View |
 | 78L05(SOT89-3)#C49374769HEERMICR · SOT-89-3 | HEERMICR | SOT-89-3 | 930 | ₹5.97 · 930 in stock | View |
 | 78L05#C112446Shikues · SOT-89-3 | Shikues | SOT-89-3 | 780 | ₹10.90 · 780 in stock | View |
 | 78S05M#C400136UNI-SEMIC · SOT-89-3 | UNI-SEMIC | SOT-89-3 | 3,955 | ₹16.70 · 3,955 in stock | View |
