TOSHIBADatasheet (PDF)

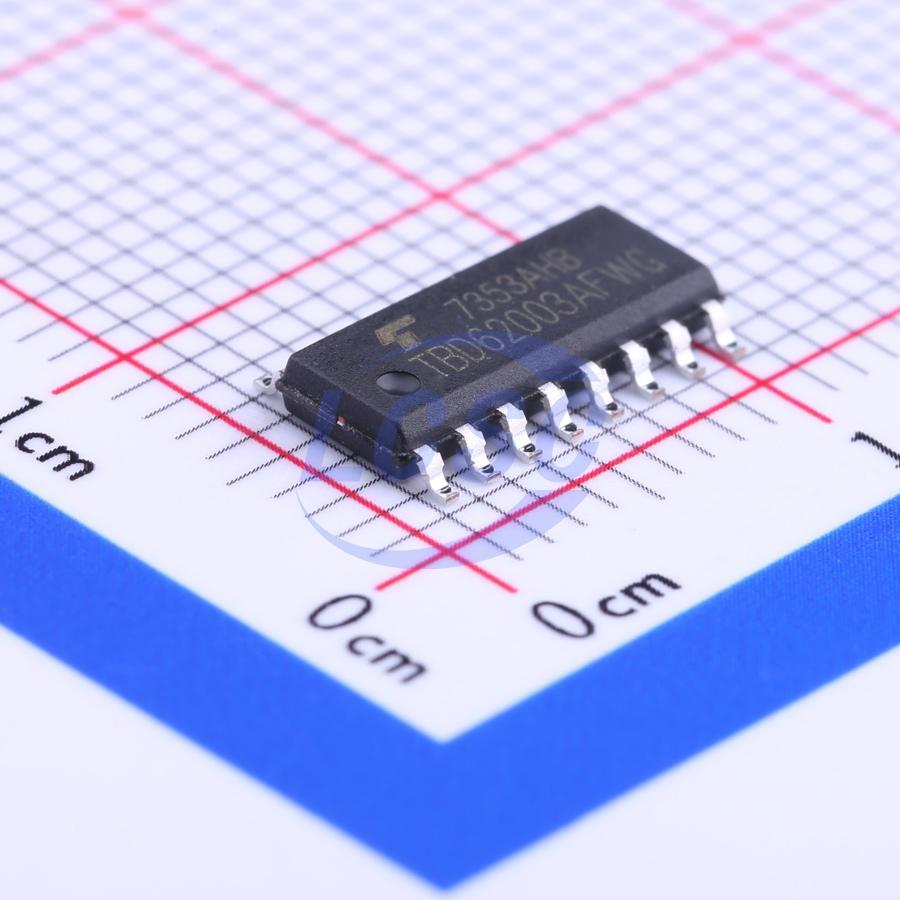

TBD62003AFWG
Seven channels 50V 500mA SOP-16 Power Distribution Switches, Load Drivers RoHS
SOP-16ROHS3 CompliantActive
7 channel sink type DMos transistor array
- Manufacturer
- TOSHIBA
- Manufacturer part #
- TBD62003AFWG
- Store part #
- C114084
- Package / case
- SOP-16
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
12,470 in stock
#C114084
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹114.39 | ₹114.39 |
| 10+ | ₹92.85 | ₹928.50 |
| 30+ | ₹81.99 | ₹2,459.70 |
| 100+ | ₹71.32 | ₹7,132.00 |
| 500+ | ₹64.80 | ₹32,400.00 |
| 1,000+ | ₹54.36 | ₹54,360.00 |
1 × ₹114.39
₹114.39
excl. GST
₹134.98 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
TBD62003AFWG
₹114.39 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- number of channels
- Seven channels
- Input Current(on)
- 0.1mA
- Voltage - Forward(Vf)
- 2V
- Operating Voltage
- 30V
- Input Current(off)
- 1uA
- Collector - Emitter Voltage VCEO
- 50V
- Current - Collector(Ic)
- 500mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.409 g
Overview
TBD62003A series and TBD62004A series are DMOS transistor array with 7 circuits. It has a clamp diode for switching inductive loads built-in in each output.
Key features
- 7 circuits built-in
- High voltage : VOUT = 50 V (MAX)
- High current : lour = 500 mA/ch (MAX)
- Input voltage(output on) : TBD62003A series 2.5 V (MIN) TBD62004A series 7.0 V (MIN)
- Input voltage(output off) : TBD62003A series 0.6 V (MAX) TBD62004A series 1.0 V (MAX)
- Package : PG type DIP16 - P - 300 - 2.54A FG type SOP16 - P - 225 - 1.27 FNG type SSOP16 - P - 225 - 0.65B FWG type P - SOP16 - 0410 - 1.27 - 002
