TOSHIBA

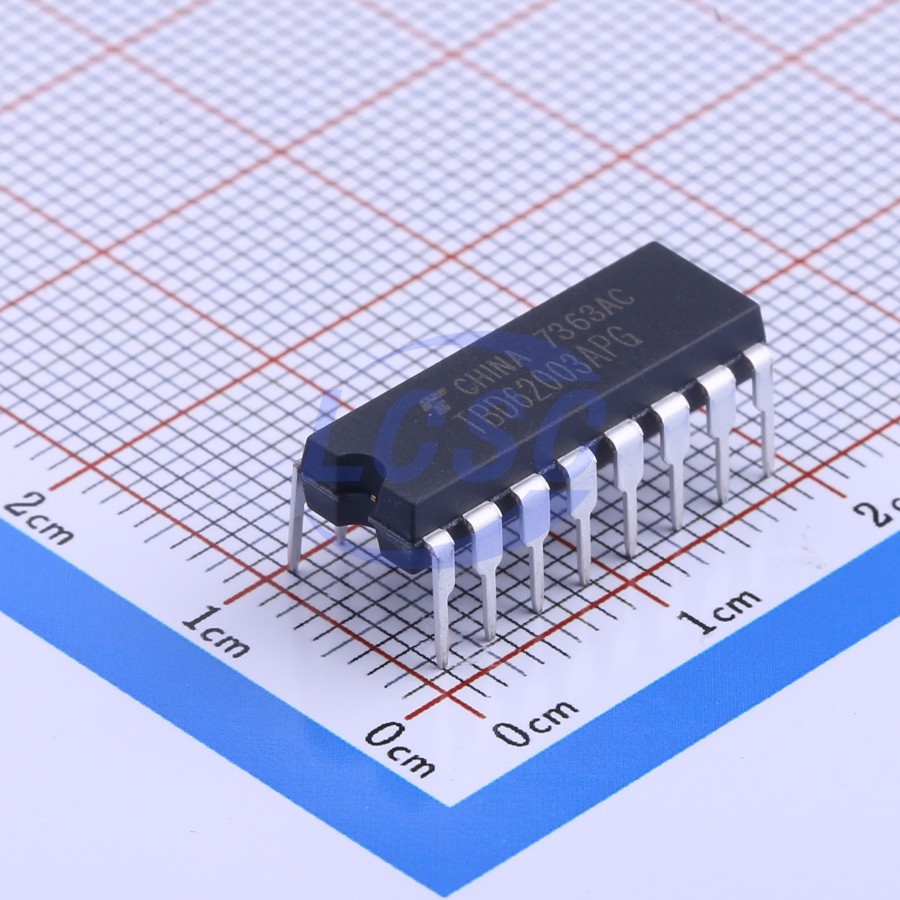

TBD62003APG(Z,HZ)

7 500mA DIP-16 Power Distribution Switches, Load Drivers RoHS

DIP-16ROHS CompliantActive

7 channel sink type DMos transistor array

Manufacturer: TOSHIBA
Manufacturer part #: TBD62003APG(Z,HZ)
Store part #: C146373
Package / case: DIP-16
Category: Power Distribution Switches, Load Drivers
Packaging: Tube-packed

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

6,212 in stock

#C146373

Stock & price checked 24 h ago

Quantity	Unit price	Pack price
1+	₹58.50	₹58.50
10+	₹45.67	₹456.70
25+	₹40.23	₹1,005.75
100+	₹33.27	₹3,327.00
500+	₹30.23	₹15,115.00
1,000+	₹28.27	₹28,270.00

Quantity (min 1)

1 × ₹58.50

₹58.50

excl. GST

₹69.03 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 25 per tube

TBD62003APG(Z,HZ)

₹58.50 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -40℃~+85℃
number of channels: 7
Maximum Continuous Current: 500mA
Operating Voltage: 2.5V~30V
RDS(on): 2Ω

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
ECCN: EAR99
Packaging: Tube-packed
Standard pack: 25 / Tube
Sold per: Piece
Minimum order: 1
Unit weight: 1.72 g

Overview

TBD62003A series and TBD62004A series are DMOS transistor array with 7 circuits. It has a clamp diode for switching inductive loads built-in in each output.

Key features

7 circuits built-in
High voltage : VOUT = 50 V (MAX)
High current : lour = 500 mA/ch (MAX)
Input voltage(output on) : TBD62003A series 2.5 V (MIN) TBD62004A series 7.0 V (MIN)
Input voltage(output off) : TBD62003A series 0.6 V (MAX) TBD62004A series 1.0 V (MAX)
Package : PG type DIP16 - P - 300 - 2.54A FG type SOP16 - P - 225 - 1.27 FNG type SSOP16 - P - 225 - 0.65B FWG type P - SOP16 - 0410 - 1.27 - 002
