TOSHIBADatasheet (PDF)

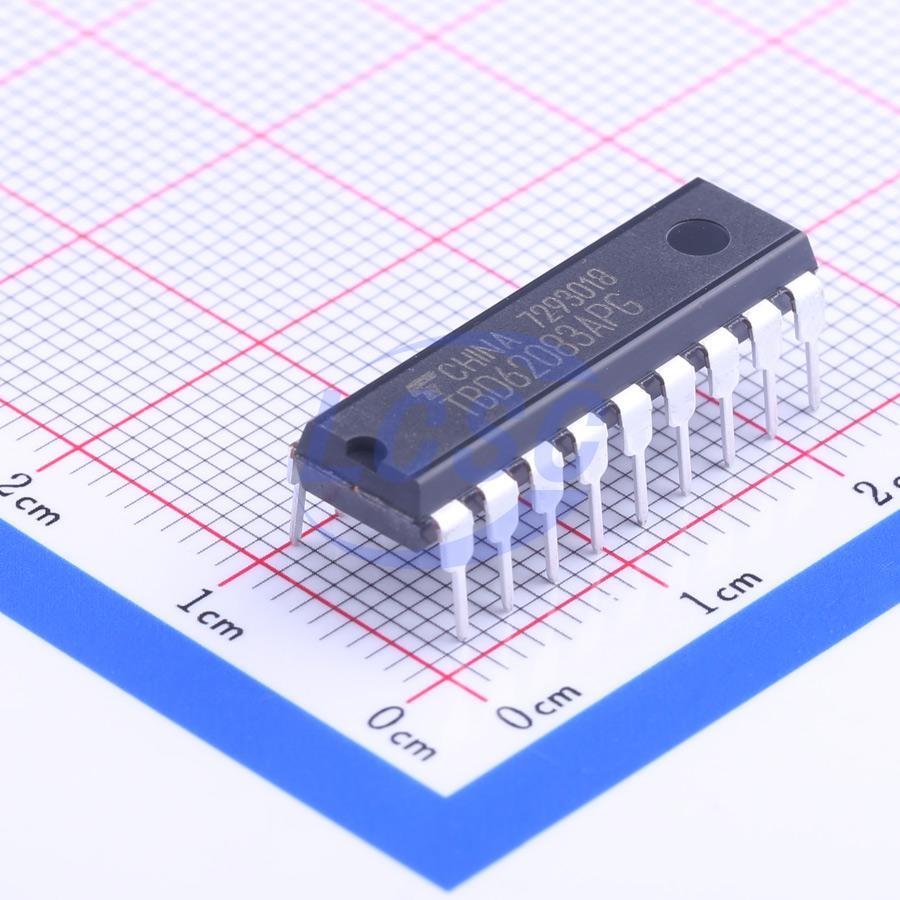

TBD62083APG
8 50V 500mA DIP-18 Power Distribution Switches, Load Drivers RoHS
DIP-18ROHS3 CompliantActive
8 channel sink type DMoS transistor array
- Manufacturer
- TOSHIBA
- Manufacturer part #
- TBD62083APG
- Store part #
- C114143
- Package / case
- DIP-18
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,801 in stock
#C114143
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹304.73 | ₹304.73 |
| 10+ | ₹256.77 | ₹2,567.70 |
| 40+ | ₹226.60 | ₹9,064.00 |
| 100+ | ₹195.78 | ₹19,578.00 |
| 500+ | ₹181.89 | ₹90,945.00 |
| 800+ | ₹175.81 | ₹1,40,648.00 |
1 × ₹304.73
₹304.73
excl. GST
₹359.58 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 20 per tube
TBD62083APG
₹304.73 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- number of channels
- 8
- Input Current(on)
- 0.1mA
- Voltage - Forward(Vf)
- 2V
- Operating Voltage
- 30V
- Input Current(off)
- 1uA
- Collector - Emitter Voltage VCEO
- 50V
- Current - Collector(Ic)
- 500mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 20 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.1 g
Overview
TB62083A series and TB62084A series are DMOS transistor array with 8 circuits. It has a clamp diode for switching inductive loads built-in in each output.
Key features
- 8 circuits built-in
- High voltage : V = 50V (MAX)
- High current : IOUT = 500 mA/ch (MAX)
- Input voltage(output on) : TBD62083A series 2.5 V (MIN) TBD62084A series 7.0 V (MIN)
- Input voltage(output off) : TBD62083A series 0.6 V (MAX) TBD62084A series 1.0 V (MAX)
- Package : PG type P-DIP18-300-2.54-001 FG type SOP18-P-375-1.27 FNG type SSOP18-P-225-0.65 FWG type P-SOP18-0812-1.27-001
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TD62783APG(O.J.S)#C2762706TOSHIBA · DIP-18 | TOSHIBA | DIP-18 | 1,733 | ₹134.07 · 1,733 in stock | View |
 | HX2803-P#C20625092ZHHXDZ · DIP-18 | ZHHXDZ | DIP-18 | 865 | ₹36.63 · 865 in stock | View |
 | Aip2803DA18.TB#C5139007Wuxi I-core Elec · DIP-18 | Wuxi I-core Elec | DIP-18 | 1,240 | ₹42.75 · 1,240 in stock | View |
 | IK62083N#C5157590IKSEMICON · DIP-18 | IKSEMICON | DIP-18 | 1,041 | ₹79.58 · 1,041 in stock | View |
 | ULN2803ALN(XBLW)#C45351499XBLW · DIP-18 | XBLW | DIP-18 | 10,810 | ₹26.00 · 10,810 in stock | View |
