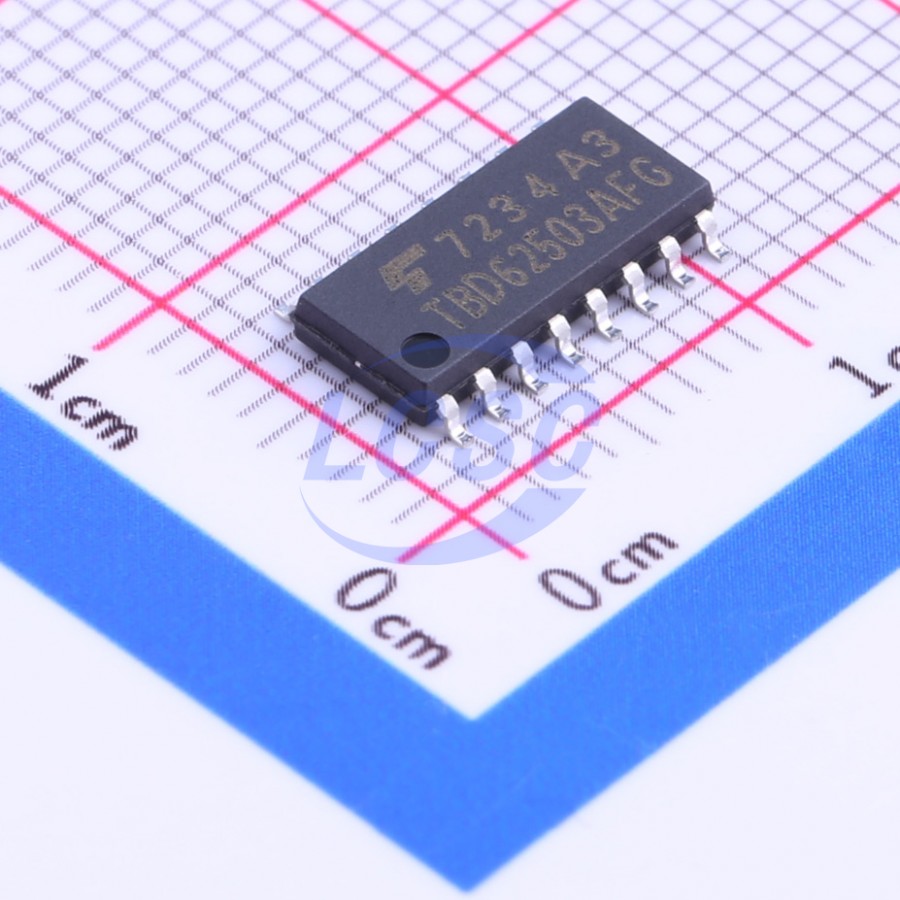

TBD62503AFG,EL
Seven channels MOS SOIC-16-175mil Power Distribution Switches, Load Drivers RoHS
SOIC-16-175milROHS3 CompliantActive
7 channel sink type DMos transistor array
- Manufacturer
- TOSHIBA
- Manufacturer part #
- TBD62503AFG,EL
- Store part #
- C146320
- Package / case
- SOIC-16-175mil
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,000 in stock
#C146320
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹207.96 | ₹207.96 |
| 10+ | ₹172.76 | ₹1,727.60 |
| 30+ | ₹153.42 | ₹4,602.60 |
| 100+ | ₹131.69 | ₹13,169.00 |
| 500+ | ₹121.91 | ₹60,955.00 |
| 1,000+ | ₹117.56 | ₹1,17,560.00 |
1 × ₹207.96
₹207.96
excl. GST
₹245.39 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
TBD62503AFG,EL
₹207.96 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- number of channels
- Seven channels
- Input Current(on)
- 0.1mA
- Operating Voltage
- 30V
- Input Current(off)
- 1uA
- Type
- MOS
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.355 g
Overview
TBD62502A series and TBD62503A series are DMOS transistor array with 7 circuits.
Key features
- 7 circuits built-in
- High voltage : VOUT = 50 V (MAX)
- High current : IOUT = 300 mA/ch (MAX)
- Input voltage(output on) : TBD62502A series 14 V (MIN), TBD62503A series 2.5 V (MIN)
- Input voltage(output off) : TBD62502A series 7.0 V (MAX), TBD62503A series 0.6 V (MAX)
- Package : PG type DIP16-P-300-2.54A, FG type SOP16-P-225-1.27, FNG type SSOP16-P-225-0.65B, FWG type P-SOP16-0410-1.27-002
