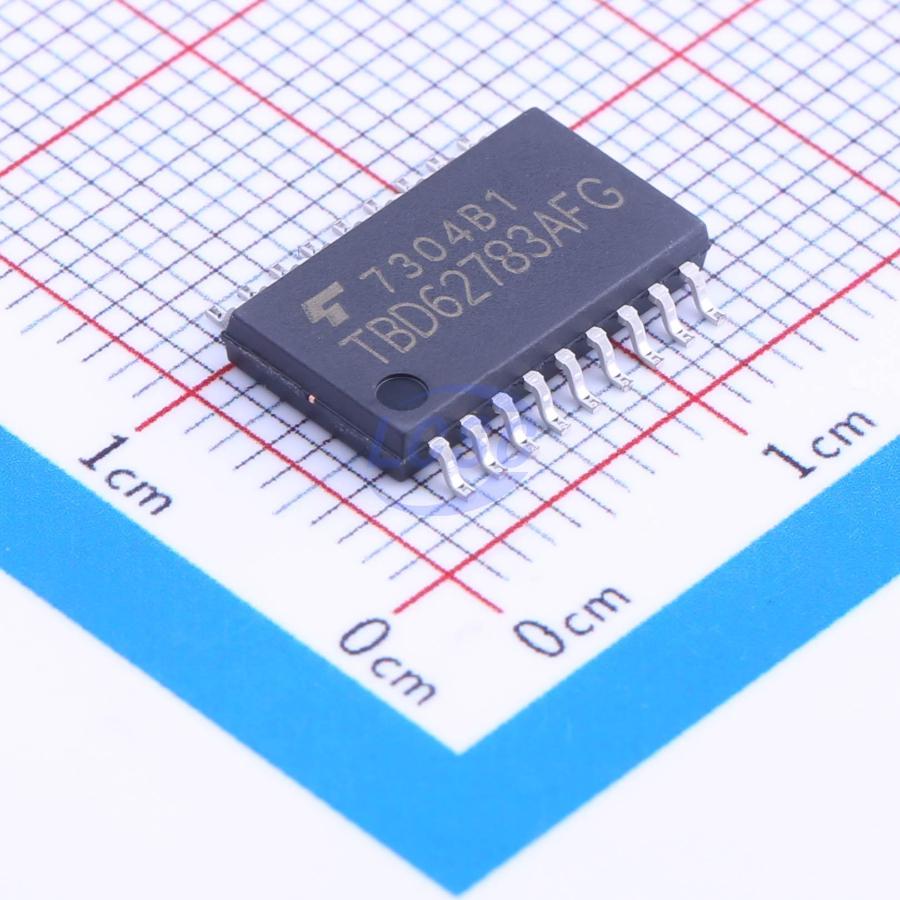

TBD62783AFG,EL
8 500mA MOS SOP-18-300mil Power Distribution Switches, Load Drivers RoHS
SOP-18-300milROHS3 CompliantActive
8channel source type DMos transistor array
- Manufacturer
- TOSHIBA
- Manufacturer part #
- TBD62783AFG,EL
- Store part #
- C97745
- Package / case
- SOP-18-300mil
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,119 in stock
#C97745
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹218.81 | ₹218.81 |
| 10+ | ₹184.44 | ₹1,844.40 |
| 30+ | ₹162.69 | ₹4,880.70 |
| 100+ | ₹140.73 | ₹14,073.00 |
| 500+ | ₹130.73 | ₹65,365.00 |
| 1,000+ | ₹126.37 | ₹1,26,370.00 |
1 × ₹218.81
₹218.81
excl. GST
₹258.20 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
TBD62783AFG,EL
₹218.81 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- number of channels
- 8
- Input Current(on)
- 0.1mA
- Voltage - Forward(Vf)
- 2V
- Operating Voltage
- 30V
- Input Current(off)
- 1uA
- Current - Collector(Ic)
- 500mA
- Type
- MOS
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 1.111 g
Overview
TBD62783A series are DMOS transistor array with 8 circuits. It has a clamp diode for switching inductive loads built-in in each output.
Key features
- 8 circuits built-in
- High voltage : VoUT = 50 V (MAX)
- High current : |Iour| = -500 mA (MAX for each channel)
- Input voltage(output on) : 2.0 V (MIN)
- Input voltage(output off) : 0.6 V (MAX)
- Package : PG type P-DIP18-300-2.54-001
- FG type SOP18-P-375-1.27
- FNG type SSOP18-P-225-0.65
- FWG type P-SOP18-0812-1.27-001
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | HT62783ARWZ#C2834485HTCSEMI · SOP-18-300mil | HTCSEMI | SOP-18-300mil | 2,860 | ₹42.92 · 2,860 in stock | View |
