UNI-ROYALDatasheet (PDF)
TC0625F5103T5J

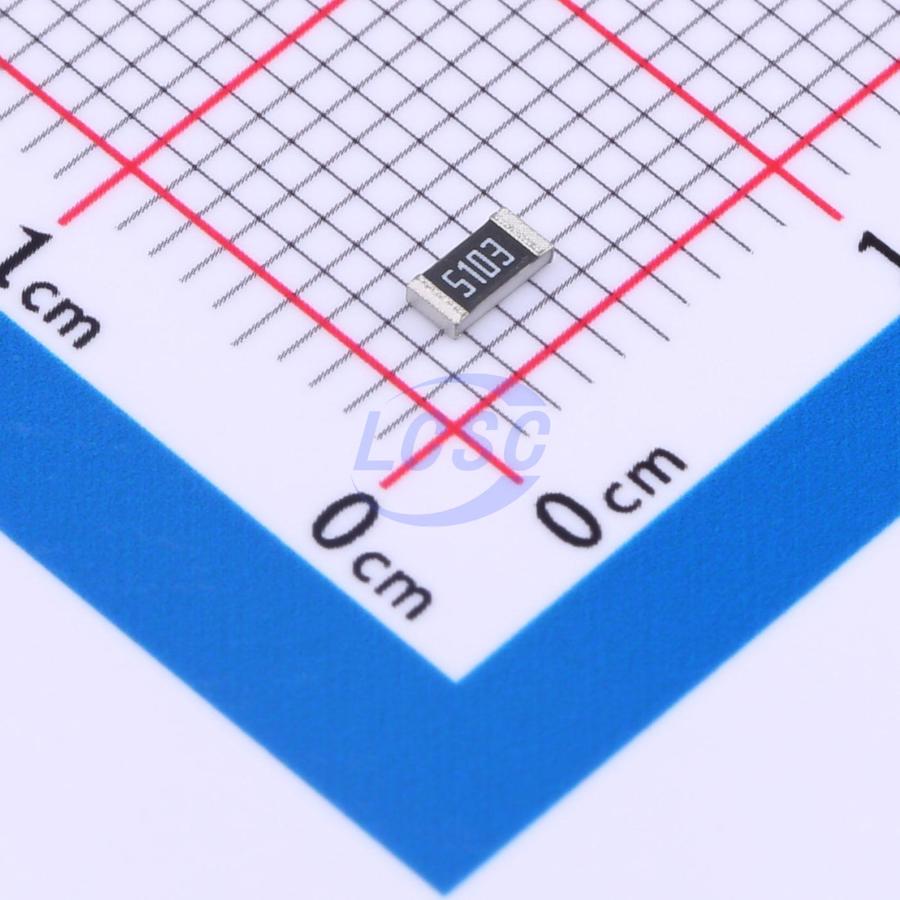

510kΩ ±1% 250mW 1206 Thin Film Resistor
1206RoHSActive
RES 510kΩ ±1% 250mW 1206
- Manufacturer
- UNI-ROYAL
- Manufacturer part #
- TC0625F5103T5J
- Store part #
- C2989164
- Package / case
- 1206
- Category
- Chip Resistor - Surface Mount
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,520 in stock
#C2989164
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹4.01 | ₹80.20 |
| 200+ | ₹3.16 | ₹632.00 |
| 600+ | ₹2.69 | ₹1,614.00 |
| 5,000+ | ₹2.32 | ₹11,600.00 |
| 10,000+ | ₹2.06 | ₹20,600.00 |
| 20,000+ | ₹1.93 | ₹38,600.00 |
| 40,000+ | ₹1.91 | ₹76,400.00 |
| 80,000+ | ₹1.89 | ₹1,51,200.00 |
20 × ₹4.01
₹80.20
excl. GST
₹94.64 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
TC0625F5103T5J
₹80.20 for 20 + GST
Specifications
- Power(Watts)
- 250mW
- Resistance
- 510kΩ
- Voltage Rating
- 200V
- Operating Temperature
- -55℃~+155℃
- Type
- Thin Film Resistor
- Tolerance
- ±1%
- Temperature Coefficient
- ±25ppm/℃
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.03 g
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 1206W4F5103T5E#C17990UNI-ROYAL · 1206 | UNI-ROYAL | 1206 | 3,20,900 | ₹0.5821 · 3,20,900 in stock | View |
 | HP06W2F5103T5E#C2774961UNI-ROYAL · 1206 | UNI-ROYAL | 1206 | 4,700 | ₹0.9923 · 4,700 in stock | View |
 | HV06W4F5103T5E#C414783UNI-ROYAL · 1206 | UNI-ROYAL | 1206 | 3,050 | ₹1.27 · 3,050 in stock | View |
 | TC0650B5103T5J#C50670536UNI-ROYAL · 1206 | UNI-ROYAL | 1206 | 3,080 | ₹5.19 · 3,080 in stock | View |
| NQ06W4F5103T5E#C2780845UNI-ROYAL · 1206 | UNI-ROYAL | 1206 | On request | Price on request | Quote | |
