TOSHIBA

TC4069UBF(EL,N,F)

3V~18V 50ns@15V,50pF 1uA 6 SOIC-14-208mil Gates and Inverters RoHS

SOIC-14-208milROHS CompliantActive

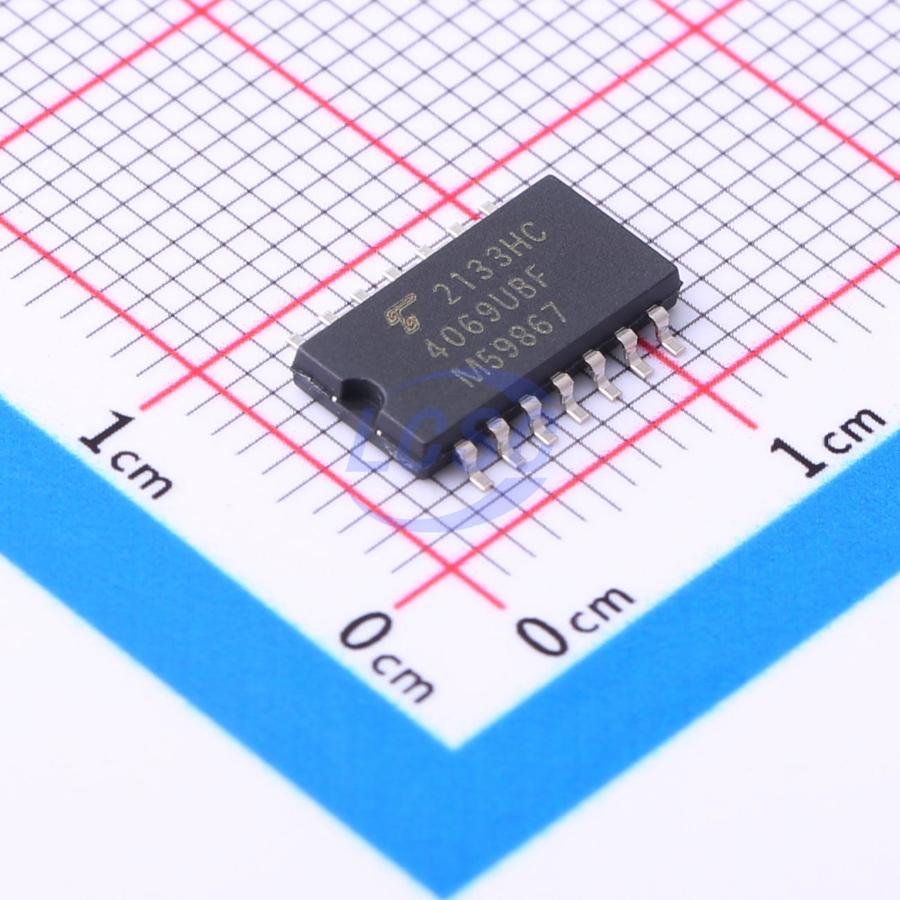

TC4069UB Hex Inverter

Manufacturer: TOSHIBA
Manufacturer part #: TC4069UBF(EL,N,F)
Store part #: C2897656
Package / case: SOIC-14-208mil
Category: Gates and Inverters
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,320 in stock

#C2897656

Stock & price checked 2 days ago

Quantity	Unit price	Pack price
5+	₹32.48	₹162.40
50+	₹28.74	₹1,437.00
150+	₹27.13	₹4,069.50
500+	₹25.14	₹12,570.00
2,000+	₹24.24	₹48,480.00
4,000+	₹23.71	₹94,840.00

Quantity (min 5, multiples of 5)

5 × ₹32.48

₹162.40

excl. GST

₹191.63 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 2,000 per reel

TC4069UBF(EL,N,F)

₹162.40 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Logic Family: 4000B
Voltage - Supply: 3V~18V
Propagation Delay: 50ns@15V,50pF
Operating Temperature: -40℃~+85℃
Input Logic Level - Low: 1V~3V
Input Logic Level - High: 4V~12V
Quiescent Current(Iq): 1uA
Current - Output High(IOH): 3.4mA
Number of Channels: 6
Current - Output Low(IOL): 3.4mA

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 2,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.401 g

Overview

TC4069UB Hex Inverter TC4069UB contains six circuits of inverters. Since the internal circuit is composed of a single stage inverter, this is suitable for the applications of CR oscillator circuits, crystal oscillator circuits and linear amplifiers in addition to its application as inverters. Because of one stage gate configuration, the propagation time has been reduced.
