lingxingicDatasheet (PDF)

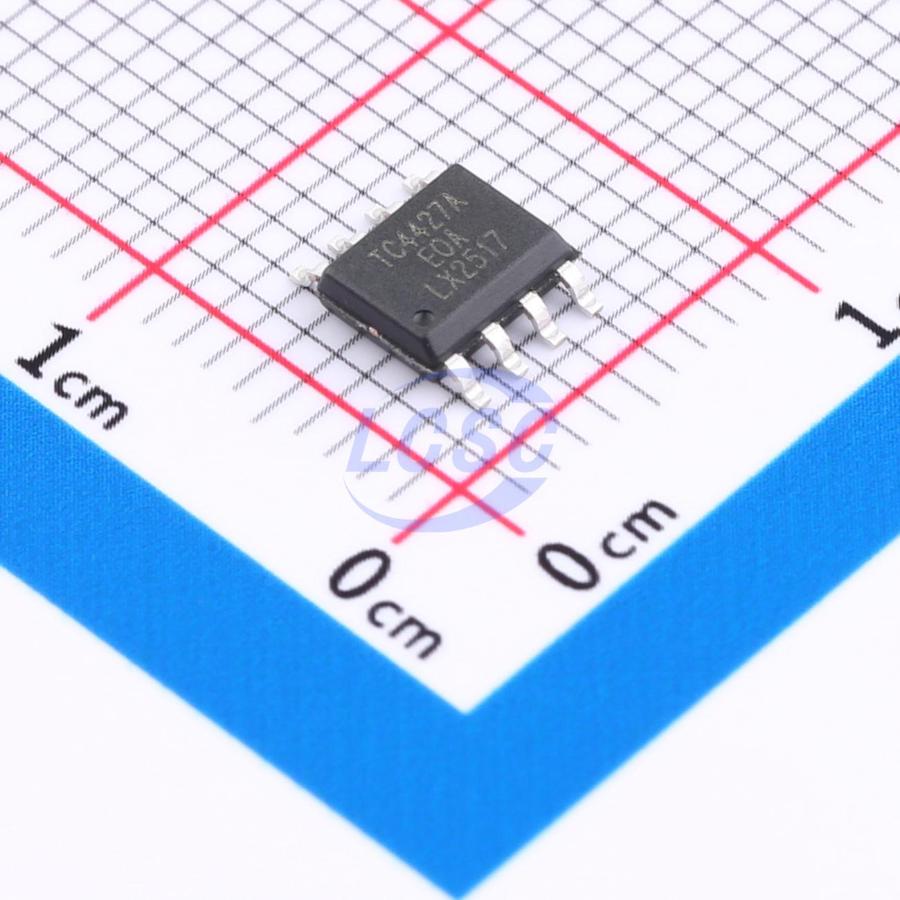

TC4427A (LX)
2 Active High SOP-8 Power Distribution Switches, Load Drivers
SOP-8RoHSActive
- Manufacturer
- lingxingic
- Manufacturer part #
- TC4427A (LX)
- Store part #
- C49246860
- Package / case
- SOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,810 in stock
#C49246860
Stock & price checked 34 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹38.25 | ₹191.25 |
| 50+ | ₹29.87 | ₹1,493.50 |
| 150+ | ₹26.27 | ₹3,940.50 |
| 500+ | ₹21.80 | ₹10,900.00 |
| 2,500+ | ₹19.81 | ₹49,525.00 |
| 4,000+ | ₹18.60 | ₹74,400.00 |
5 × ₹38.25
₹191.25
excl. GST
₹225.68 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
TC4427A (LX)
₹191.25 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- number of channels
- 2
- Control Input Logic
- Active High
- Operating Voltage
- 4.5V~18V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.101 g
Overview
The circuit's primary function is to convert dual TTL-compatible inputs into dual high-current, high-voltage outputs, providing substantial drive capability. The two channels operate independently, with input and output in phase.
Key features
- Operating voltage range: 4.5~18V
- Logic input voltage range: -5V~VDD+0.3V
- Input high level: VIH ≥ 2.4V, input low level: VIL ≤ 0.8V
- Quiescent supply current: ≤ 2mA (VIN = 3V), ≤ 200μA (VIN = 0V)
- Peak output current: 1.5A (VDD = 18V)
- Output impedance: ≤ 12Ω (VDD = 18V)
- Rise/fall time: ≤ 40ns (CL = 1000pF)
- Propagation delay time: ≤ 50ns (CL = 1000pF)
- Operating temperature range: -40~85℃
- Package: SOP8
