TC74AC14F(EL,F)
Schmitt trigger 2V~5.5V 9.7ns@5V,50pF 4uA 6 SOIC-14-208mil Gates and Inverters RoHS
SOIC-14-208milROHS CompliantActive
CMOS Digital Integrated Circuits Hex Schmitt Inverter
- Manufacturer
- TOSHIBA
- Manufacturer part #
- TC74AC14F(EL,F)
- Store part #
- C6880151
- Package / case
- SOIC-14-208mil
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,712 in stock
#C6880151
Stock & price checked 2 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹69.62 | ₹69.62 |
| 10+ | ₹61.45 | ₹614.50 |
| 30+ | ₹57.37 | ₹1,721.10 |
| 100+ | ₹53.29 | ₹5,329.00 |
| 500+ | ₹50.92 | ₹25,460.00 |
| 1,000+ | ₹49.63 | ₹49,630.00 |
1 × ₹69.62
₹69.62
excl. GST
₹82.15 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,000 per reel

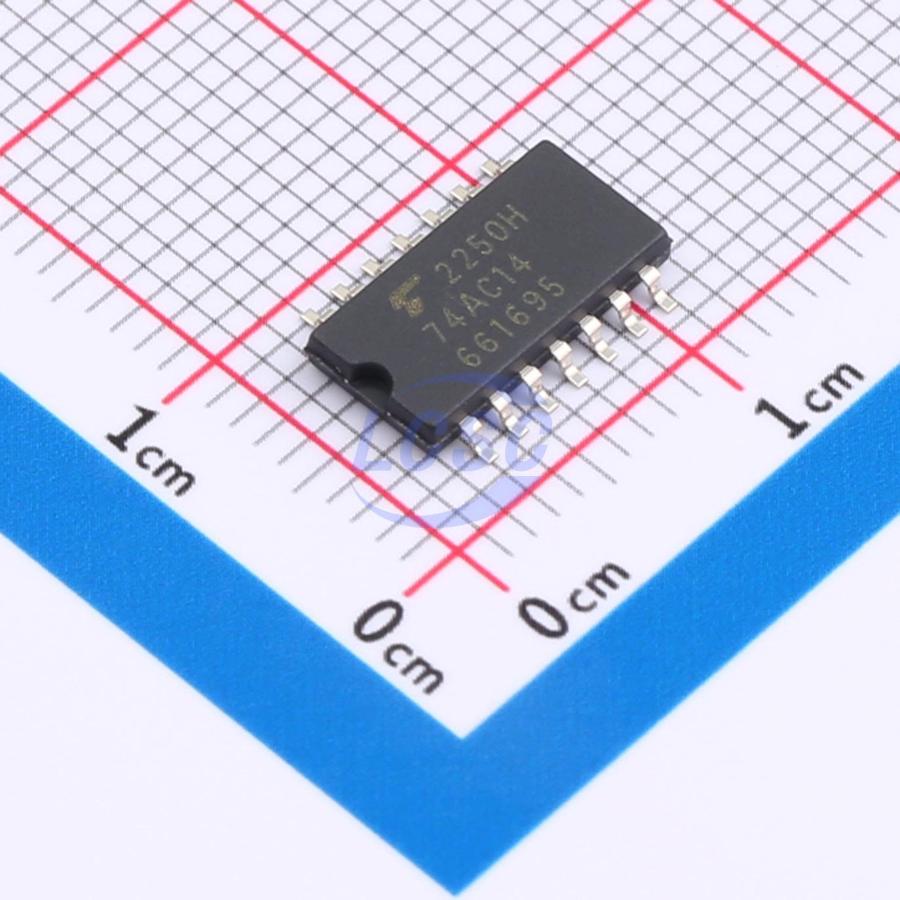

TC74AC14F(EL,F)
₹69.62 for 1 + GST
Specifications
- Logic Family
- TC74AC
- Input Type
- Schmitt trigger
- Voltage - Supply
- 2V~5.5V
- Output Logic Level - Low
- 360mV
- Propagation Delay
- 9.7ns@5V,50pF
- Features
- Noise suppression function
- Input Logic Level - Low
- 500mV~1.1V
- Input Logic Level - High
- 2.2V~3.9V
- Operating Temperature
- -40℃~+85℃
- Output Logic Level - High
- 3.94V
- Quiescent Current(Iq)
- 4uA
- Current - Output High(IOH)
- 24mA
- Number of Channels
- 6
- Current - Output Low(IOL)
- 24mA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.278 g
Overview
Hex Schmitt Inverter The TC74AC14F is an advanced high speed CMOS SCHMITT INVERTER fabricated with silicon gate and doublelayer metal wiring C2MOS technology. It achieves the high speed operation similar to equivalent Bipolar Schottky TTL while maintaining the CMOS low pwer dissipation. Pin configuration and function are the same as the TC74AC04F but the inputs have hysteresis and with its schmitt trigger function, the TC74AC14F can be used as a line receivers which will receive slow input signals. All inputs are equipped with protection circuits against static discharge or transient excess voltage.
Key features
- High speed: tpd = 5.3 ns (typ.) at VCC = 5.0 V
- Low power dissipation: ICC = 4.0 μA (max) at Ta = 25 °C
- Output current: | IOH |/IOL = 24 mA (min) (VCC = 4.5 V)
- Balanced propagation delays: tpH_L ≈ tpH_L
- Wide operating voltage range: VCC(opr) = 2.0 V to 5.5 V
- Pin and function compatible with 74F14
