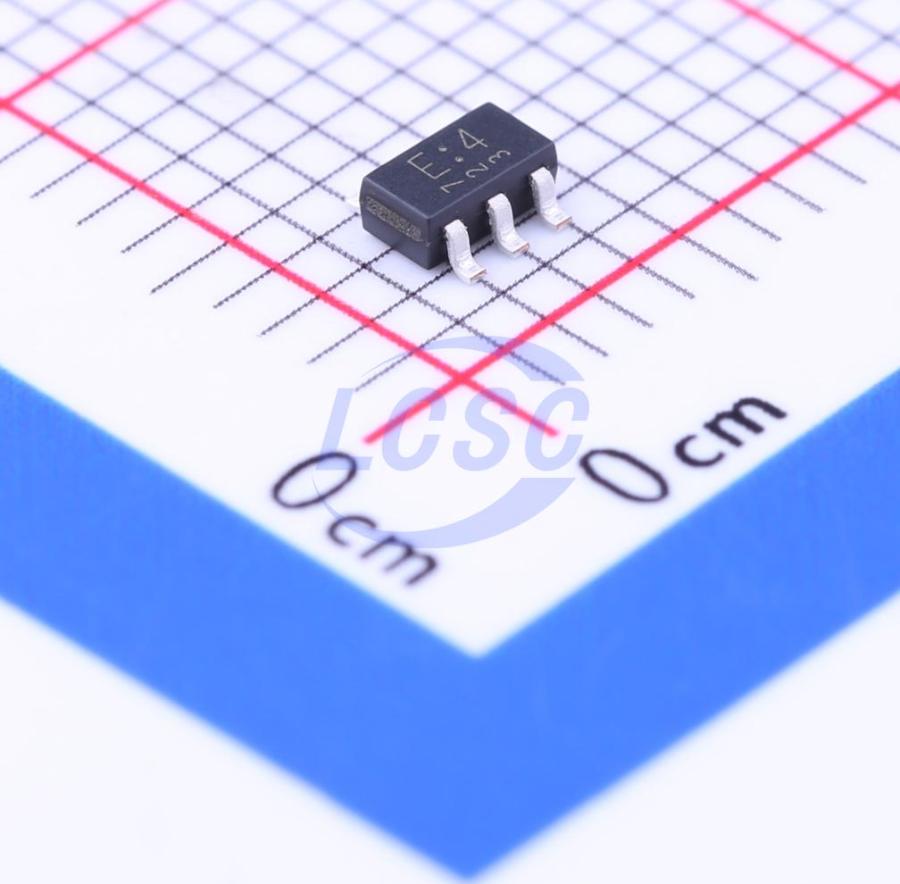

TC7S32F

10uA 2V~6V 7ns@5V,15pF SOT-23-5 Gates and Inverters

SOT-23-5RoHSActive

2-INPUT OR GATE

Manufacturer: TOSHIBA
Manufacturer part #: TC7S32F
Store part #: C6943
Package / case: SOT-23-5
Category: Gates and Inverters
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,935 in stock

#C6943

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹12.40	₹62.00
50+	₹9.79	₹489.50
150+	₹8.49	₹1,273.50
500+	₹7.51	₹3,755.00
3,000+	₹6.47	₹19,410.00
6,000+	₹6.07	₹36,420.00

Quantity (min 5, multiples of 5)

5 × ₹12.40

₹62.00

excl. GST

₹73.16 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

TC7S32F

₹62.00 for 5 + GST

Specifications

Operating Temperature: -40℃~+85℃
Input Logic Level - High: 1.5V;3.15V;4.2V
Input Logic Level - Low: 500mV;1.35V;1.8V
Logic Family: TC7S Series
Output Logic Level - High: 1.9V~2V;4.18V;5.63V~5.8V
Quiescent Current(Iq): 10uA
Voltage - Supply: 2V~6V
Current - Output High(IOH): 2.6mA
Number of Channels: 2;2
Propagation Delay: 7ns@5V,15pF
Output Logic Level - Low: 100mV;330mV
Current - Output Low(IOL): 2.6mA

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.036 g

Overview

The TC7S32 is a high speed C2MOS 2-INPUT OR GATE fabricated with silicon gate C2Mos technology. It achieves high speed operation similar to equivalent LSTTL while maintaining the C?MOs low power dissipation. The internal circuit is composed of 2 stages including buffer output, which enables high noise immunity and stable output. All inputs are equipped with protection circuits against static discharge or transient excess voltage. Output currents are 1/2 compared to TC74HC series models.

Key features

High Speed propagation delay (tpd) = 7 ns (Typ.) at inverted supply voltage (VCC (overline)) = 5 V
Low Power Dissipation supply current (ICC) = 1 μA (Max.) at ambient temperature (Ta) = 25 ℃
High Noise Immunity high-level noise immunity voltage (VNIH) = low-level noise immunity voltage (VNIL) = 28% VCC (Min.)
Output Drive Capability... 5 LSTTL Loads
Symmetrical Output Impedance absolute value of high-level output current (|IoH|) = low-level output current (IoL) = 2 mA (Min.)
Balanced Propagation Delays .... ΔpLH Δ FpHL
Wide Operating Voltage Range.. operating supply voltage (VCC (opr)) = 2 ~ 6 V
