TOSHIBADatasheet (PDF)

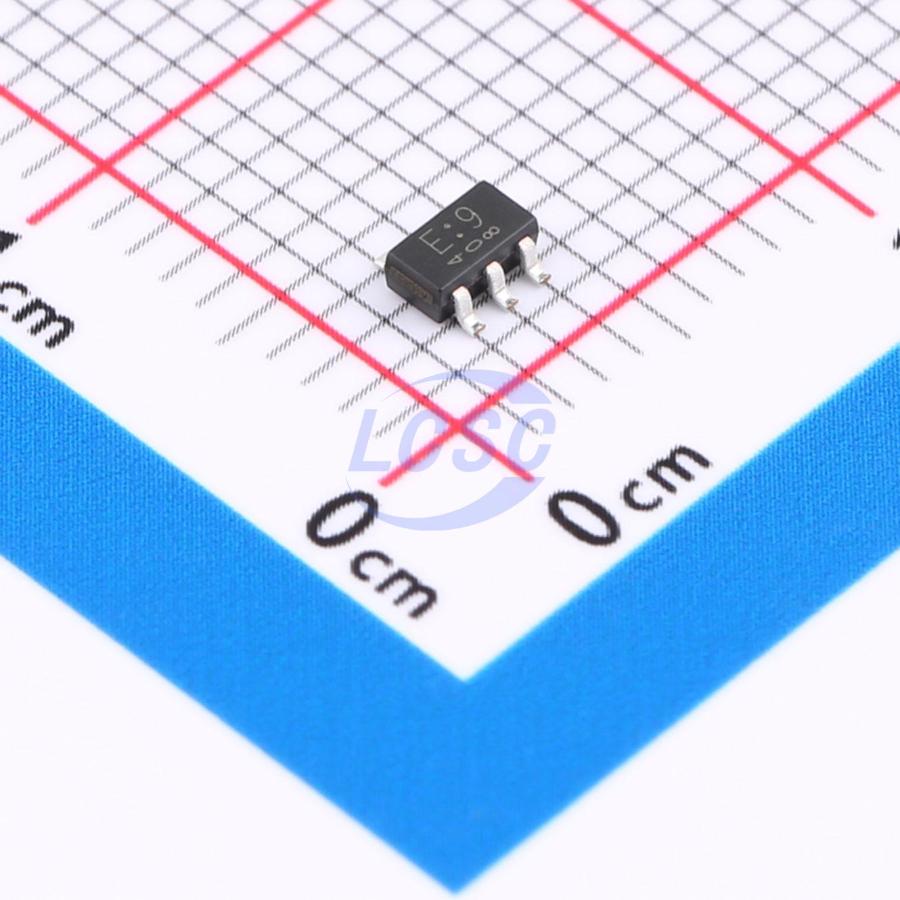

TC7S66F,LF
1/1 2V~12V 1uA 7ns@5V,50pF SSOP-5 Signal Switches, Multiplexers, Decoders
SSOP-5RoHSSold out at source
CMOS Bilateral Switch
- Manufacturer
- TOSHIBA
- Manufacturer part #
- TC7S66F,LF
- Store part #
- C22764371
- Package / case
- SSOP-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,560 in stock
#C22764371
Stock & price checked 23 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹16.96 | ₹84.80 |
| 50+ | ₹14.94 | ₹747.00 |
| 150+ | ₹14.06 | ₹2,109.00 |
| 500+ | ₹12.98 | ₹6,490.00 |
| 3,000+ | ₹12.50 | ₹37,500.00 |
| 6,000+ | ₹12.21 | ₹73,260.00 |
5 × ₹16.96
₹84.80
excl. GST
₹100.06 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TC7S66F,LF
₹84.80 for 5 + GST
Specifications
- Number of Channels
- 1/1
- Voltage - Supply
- 2V~12V
- Operating Temperature
- -40℃~+85℃
- Quiescent Current
- 1uA
- Propagation Delay
- 7ns@5V,50pF
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Sold out at source
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.041 g
Overview
The TC7S66 is a high Speed C²MOS Bilateral Switch fabricated with silicon gate C²MOS technology. It consists of a high speed switch capable of controlling either digital or analog signals while maintaining the C²MOS low power dissipation. Control input (C) is provided to control the switch. The switch turns ON while the C input is high, and the switch turns OFF while low. Input is equipped with protection circuits against static discharge or transient excess voltage.
Key features
- High speed: tpd = 7 ns (typ.) @ VCC = 5 V
- Low power dissipation: ICC = 1 μA (max) @ Ta = 25℃
- High noise immunity: ΔVNIH = VNIL = 28% VCC (min)
- Low ON resistance: RON = 100 Ω (typ.) @ VCC = 9 V
- Low T.H.D: THD = 0.05% (typ.) @ VCC = 5 V
- Pin and function compatible with TC4S66F
