TOSHIBADatasheet (PDF)

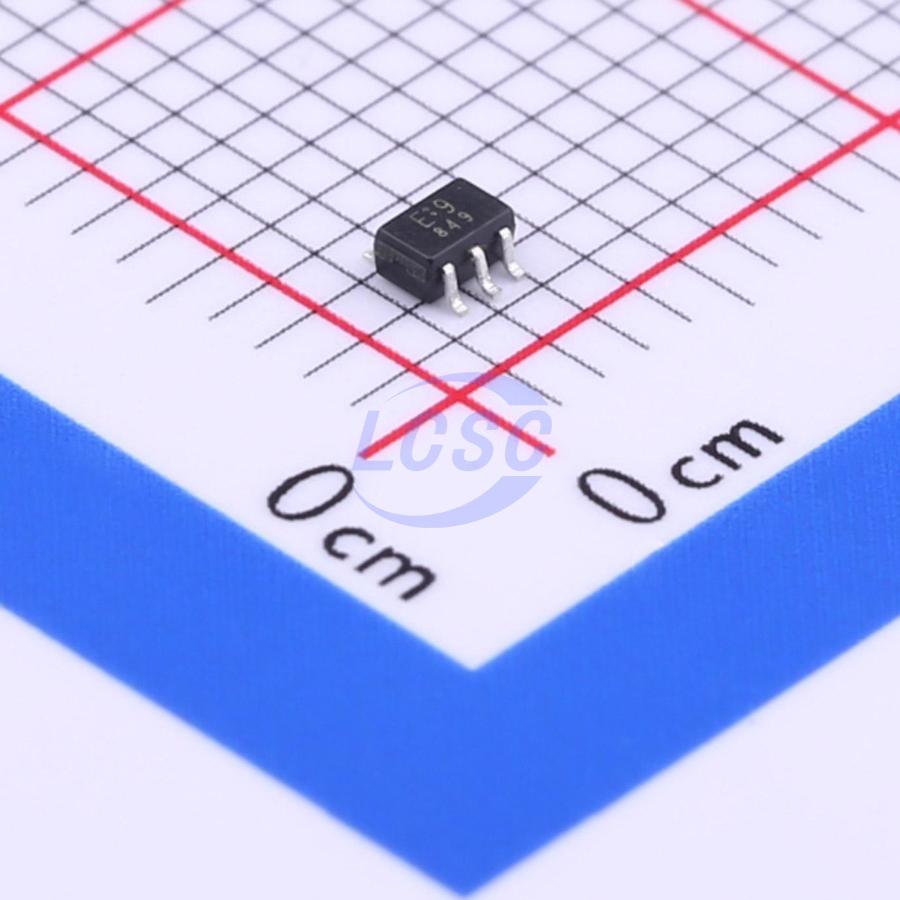

TC7S66FU,LF
400Ω@4.5V 2V~12V 7ns SSOP-5 Signal Switches, Multiplexers, Decoders
SSOP-5RoHSActive
Bilateral Switch
- Manufacturer
- TOSHIBA
- Manufacturer part #
- TC7S66FU,LF
- Store part #
- C261924
- Package / case
- SSOP-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,050 in stock
#C261924
Stock & price checked 31 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹14.87 | ₹74.35 |
| 50+ | ₹11.75 | ₹587.50 |
| 150+ | ₹10.19 | ₹1,528.50 |
| 500+ | ₹9.01 | ₹4,505.00 |
| 3,000+ | ₹8.07 | ₹24,210.00 |
| 6,000+ | ₹7.59 | ₹45,540.00 |
5 × ₹14.87
₹74.35
excl. GST
₹87.73 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TC7S66FU,LF
₹74.35 for 5 + GST
Specifications
- Ron
- 400Ω@4.5V
- Voltage - Supply
- 2V~12V
- Operating Temperature
- -40℃~+85℃
- Con
- 0.5pF
- Propagation Delay
- 7ns
- Function
- Bidirectional analog channel;Fault protection
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.028 g
Overview
The TC7S66 is a high Speed C²MOS Bilateral Switch fabricated with silicon gate C²MOS technology. It consists of a high speed switch capable of controlling either digital or analog signals while maintaining the C²MOS low power dissipation. Control input (C) is provided to control the switch. The switch turns ON while the C input is high, and the switch turns OFF while low. Input is equipped with protection circuits against static discharge or transient excess voltage.
Key features
- High speed: tpd = 7 ns (typ.) @VCC = 5 V
- Low power dissipation: ICC = 1 μA (max) @Ta = 25℃
- High noise immunity: ΔVNIH = VNIL = 28% VCC (min)
- Low ON resistance: RON = 100 Ω (typ.) @VCC = 9 V
- Low T.H.D: THD = 0.05% (typ.) @VCC = 5 V
- Pin and function compatible with TC4S66F
