TOSHIBADatasheet (PDF)

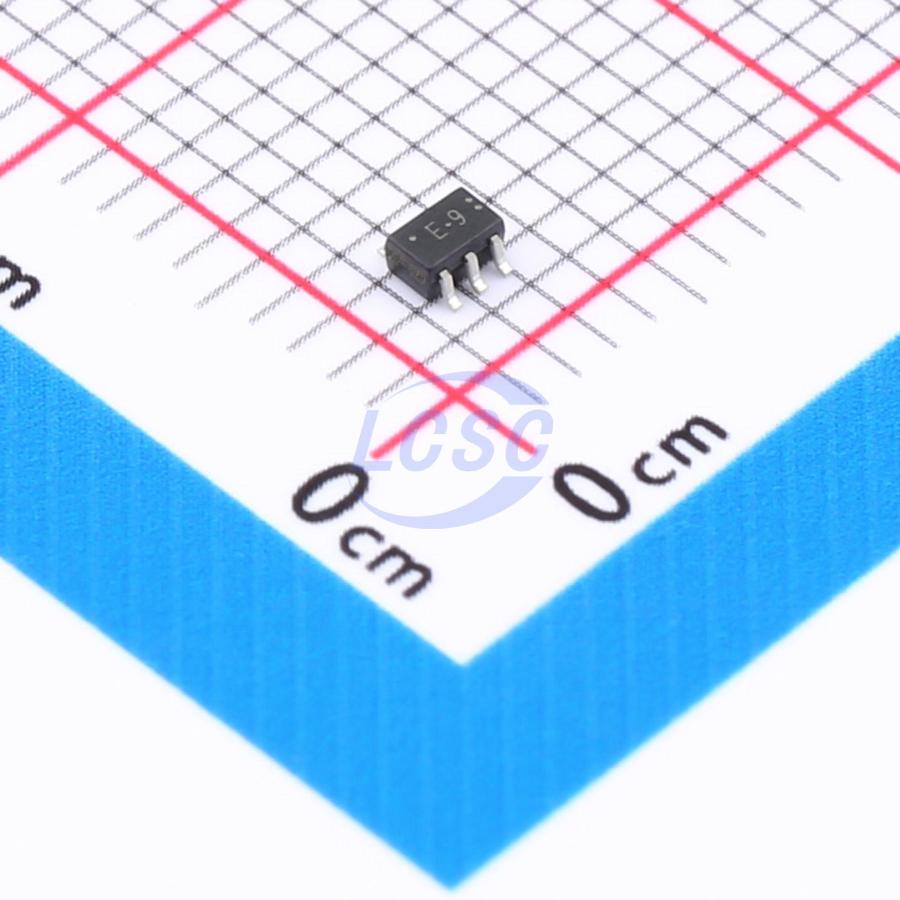

TC7S66FU(TE85L,F)
1uA 2V~12V 4ns@12V,50pF SOT-353 Gates and Inverters
SOT-353RoHSActive
CMOS Bilateral Switch
- Manufacturer
- TOSHIBA
- Manufacturer part #
- TC7S66FU(TE85L,F)
- Store part #
- C7421340
- Package / case
- SOT-353
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,730 in stock
#C7421340
Stock & price checked 35 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹18.51 | ₹92.55 |
| 50+ | ₹14.39 | ₹719.50 |
| 150+ | ₹12.62 | ₹1,893.00 |
| 500+ | ₹10.41 | ₹5,205.00 |
| 3,000+ | ₹9.43 | ₹28,290.00 |
| 6,000+ | ₹8.85 | ₹53,100.00 |
5 × ₹18.51
₹92.55
excl. GST
₹109.21 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TC7S66FU(TE85L,F)
₹92.55 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Input Logic Level - Low
- 500mV;1.35V;2.7V;3.6V
- Input Logic Level - High
- 1.5V;3.15V;6.3V;8.4V
- Quiescent Current(Iq)
- 1uA
- Voltage - Supply
- 2V~12V
- Number of Channels
- 2;1
- Propagation Delay
- 4ns@12V,50pF
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.028 g
Overview
The TC7S66 is a high Speed C²MOS Bilateral Switch fabricated with silicon gate C²MOS technology. It consists of a high speed switch capable of controlling either digital or analog signals while maintaining the C²MOS low power dissipation. Control input (C) is provided to control the switch. The switch turns ON while the C input is high, and the switch turns OFF while low. Input is equipped with protection circuits against static discharge or transient excess voltage.
Key features
- High speed: tpd = 7 ns (typ.) @ VCC = 5 V
- Low power dissipation: ICC = 1 μA (max) @ Ta = 25℃
- High noise immunity: ΔVNIH = VNIL = 28% VCC (min)
- Low ON resistance: RON = 100 Ω (typ.) @ VCC = 9 V
- Low T.H.D: THD = 0.05% (typ.) @ VCC = 5 V
- Pin and function compatible with TC4S66F
