TOSHIBADatasheet (PDF)

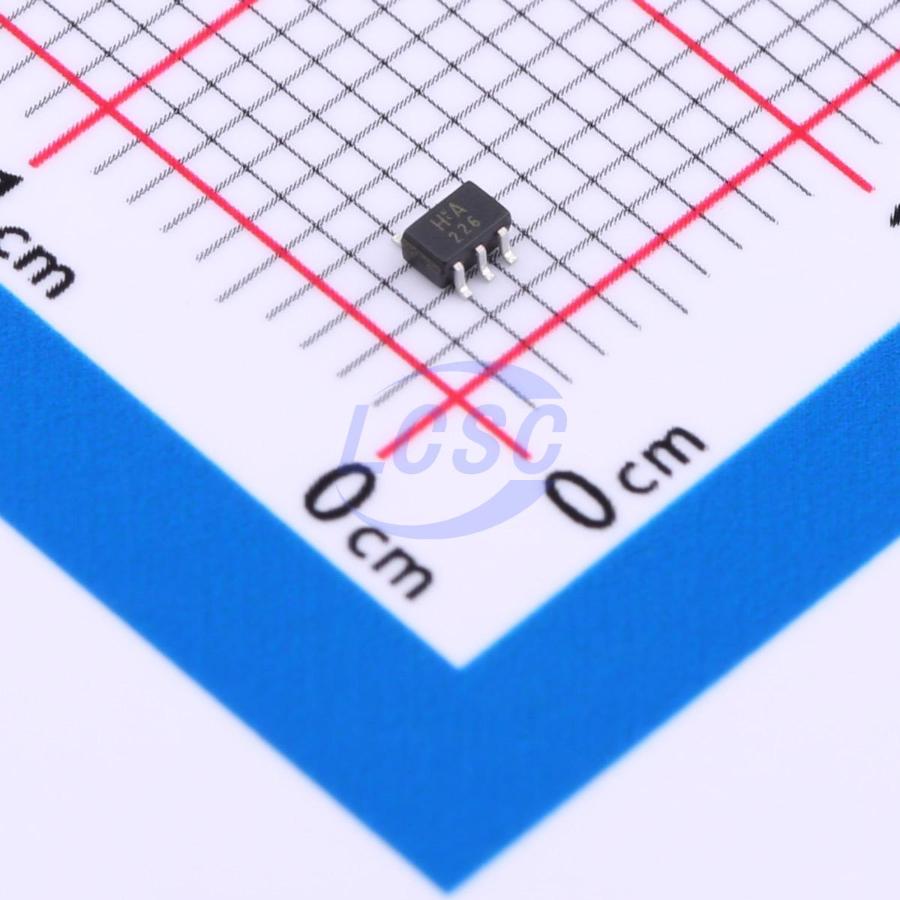

TC7SH14FU,LJ
Schmitt trigger 2V~5.5V 5.5ns@5V,15pF 2uA 1 SOT-353 Gates and Inverters
SOT-353RoHSActive
CMOS Digital Integrated Circuits Schmitt Inverter
- Manufacturer
- TOSHIBA
- Manufacturer part #
- TC7SH14FU,LJ
- Store part #
- C5221346
- Package / case
- SOT-353
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,240 in stock
#C5221346
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹15.72 | ₹78.60 |
| 50+ | ₹12.65 | ₹632.50 |
| 150+ | ₹11.11 | ₹1,666.50 |
| 500+ | ₹9.96 | ₹4,980.00 |
| 3,000+ | ₹8.67 | ₹26,010.00 |
| 6,000+ | ₹8.20 | ₹49,200.00 |
5 × ₹15.72
₹78.60
excl. GST
₹92.75 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TC7SH14FU,LJ
₹78.60 for 5 + GST
Specifications
- Logic Family
- TC7SH
- Input Type
- Schmitt trigger
- Voltage - Supply
- 2V~5.5V
- Propagation Delay
- 5.5ns@5V,15pF
- Features
- Noise suppression function
- Operating Temperature
- -40℃~+125℃
- Output Logic Level - High
- 1.9V;2.9V;4.4V
- Quiescent Current(Iq)
- 2uA
- Number of Channels
- 1
- Current - Output High(IOH)
- 8mA
- Current - Output Low(IOL)
- 8mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.04 g
Overview
Key features
- AEC-Q100 (Rev. H)
- Wide operating temperature range: Topr = -40 to 125 ℃
- High speed operation: tpd = 5.5 ns (typ.) (VCC = 5.0 V, CL = 15 pF)
- Low power dissipation: ICC = 2.0 μA (max) (Ta = 25 ℃)
- High noise immunity: VNI H = VNIL = 28 % VCC (min)
- 5.5 V tolerant inputs
- Wide operating voltage range: VCC = 2.0 to 5.5 V
