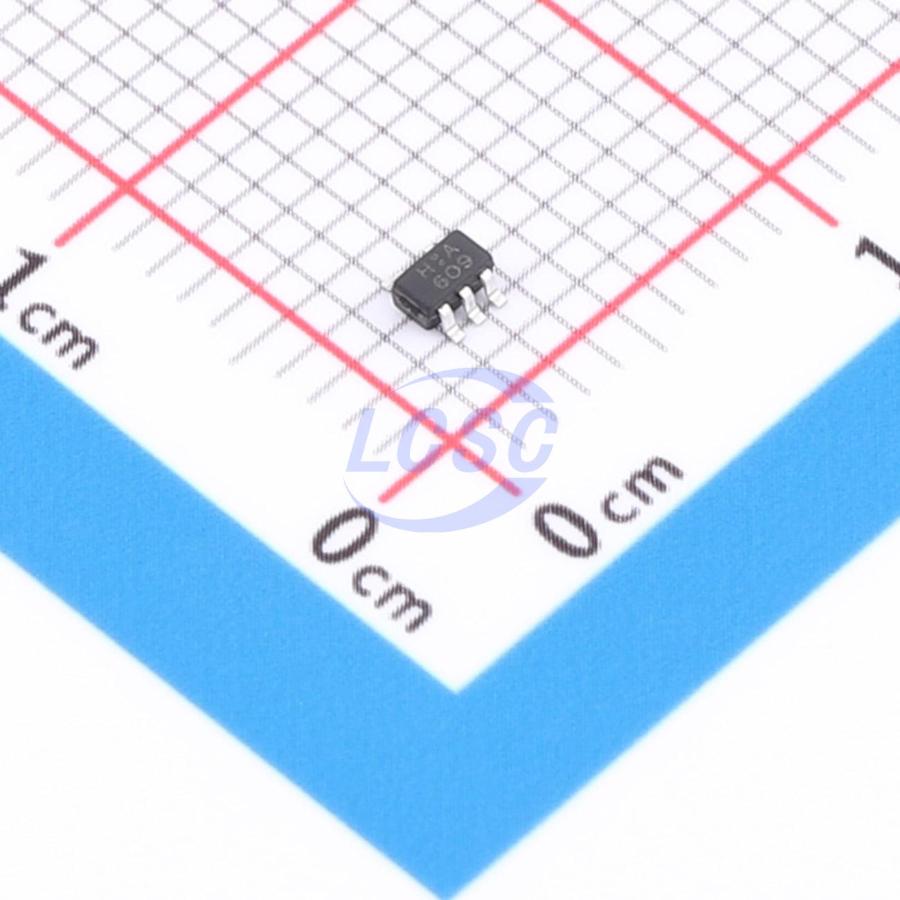

TC7SH14FU-TP
Schmitt trigger 2V~5.5V 900ps@5V,15pF 10uA 1 SOT-353 Gates and Inverters
SOT-353RoHSActive
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TC7SH14FU-TP
- Store part #
- C54195018
- Package / case
- SOT-353
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,390 in stock
#C54195018
Stock & price checked 19 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹6.34 | ₹63.40 |
| 100+ | ₹5.00 | ₹500.00 |
| 300+ | ₹4.33 | ₹1,299.00 |
| 3,000+ | ₹3.82 | ₹11,460.00 |
| 6,000+ | ₹3.43 | ₹20,580.00 |
| 9,000+ | ₹3.23 | ₹29,070.00 |
10 × ₹6.34
₹63.40
excl. GST
₹74.81 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TC7SH14FU-TP
₹63.40 for 10 + GST
Specifications
- Input Type
- Schmitt trigger
- Logic Family
- TC7SH
- Voltage - Supply
- 2V~5.5V
- Output Logic Level - Low
- 100mV;450mV;300mV;400mV;550mV
- Propagation Delay
- 900ps@5V,15pF
- Operating Temperature
- -40℃~+125℃
- Output Logic Level - High
- 1.2V;1.9V;2.4V;2.3V;3.8V
- Quiescent Current(Iq)
- 10uA
- Number of Channels
- 1
- Current - Output High(IOH)
- 32mA
- Current - Output Low(IOL)
- 32mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 1 g
Overview
The TC7SH14 is a single Schmitt-trigger inverter. The device is designed for operation with VCC ranging from 2V to 5.5V and can be driven by 3.3V or 5V devices. This feature allows these devices to be used as level translators in mixed 3.3V and 5V environments. The TC7SH14 contains one inverter that performs the Boolean function Y = A. The device operates as a standalone inverter with Schmitt-trigger inputs, providing different input threshold levels for the positive-going input (VT+), which enables the device to tolerate slow or noisy input signals. The device is fully specified for partial-power-down applications using Ioff. The Ioff circuit disables the outputs when the device is powered down, preventing reverse current flow into the device and protecting it from damage. The TC7SH14 is available in SOT23-5 and SOT353 packages.
Applications
- Active Noise Cancellation (ANC)
- Blood Pressure Monitor
- Embedded PC
- SSD: Client and Enterprise
- TV: LCD/Digital and HDTV
- Tablet: Enterprise
- Video Analytics: Server
- Wireless Headset, Keyboard and Mouse
- Power Supply: Telecom/Server AC/DC Controller
Key features
- Wide supply voltage range: 2V to 5.5V
- Maximum propagation delay (TPD) of 4.6 ns at VCC = 3.3V
- Low power consumption, maximum quiescent current (ICC) of 10 μA
- Output drive current of ±24 mA at VCC = 3.3V
- Latch-up performance exceeds 100 mA per JESD 78 Class II
- ESD protection exceeds JESD 22 standards
- Human Body Model (A114-A): 2000 V
- Charged Device Model (C101): 1000 V
- Operating temperature range: -40°C to 125°C
- Available packages: SOT23-5 and SOT353
