TOSHIBADatasheet (PDF)

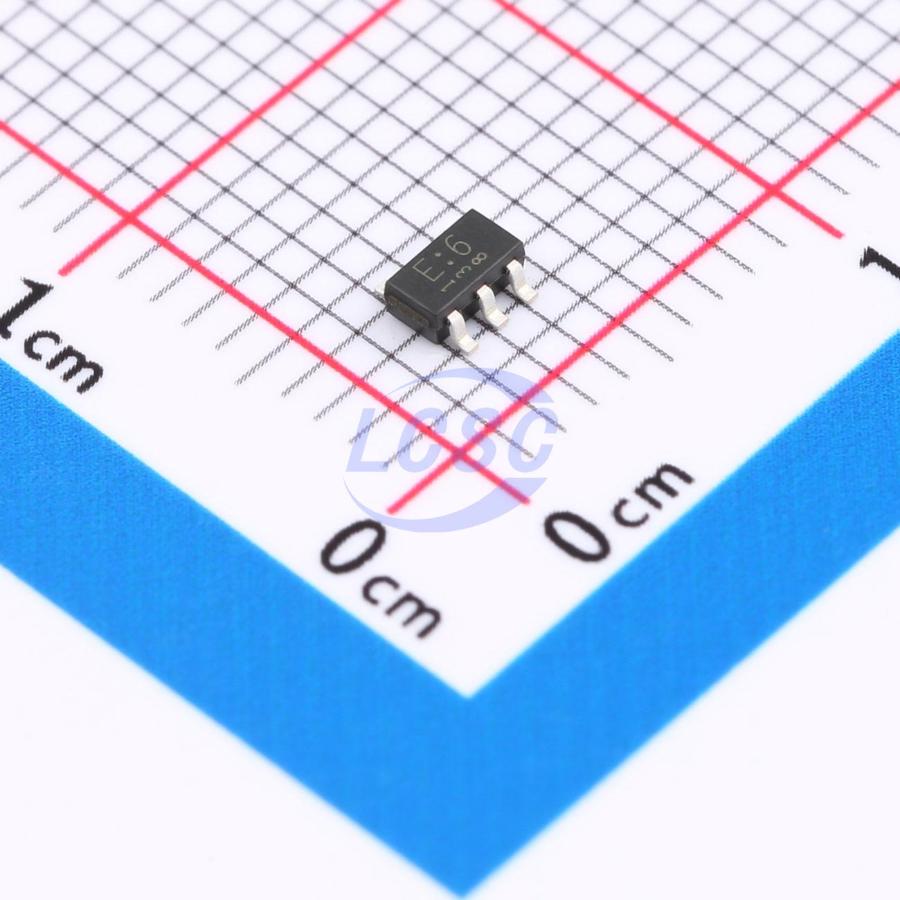

TC7SU04F,LF
2V~6V 17ns@6V,50pF 1uA 1 SOT-25-5 Gates and Inverters RoHS
SOT-25-5ROHS3 CompliantActive
C2MOS High-Speed Inverter
- Manufacturer
- TOSHIBA
- Manufacturer part #
- TC7SU04F,LF
- Store part #
- C6944
- Package / case
- SOT-25-5
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,140 in stock
#C6944
Stock & price checked 46 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹20.89 | ₹104.45 |
| 50+ | ₹16.51 | ₹825.50 |
| 150+ | ₹14.63 | ₹2,194.50 |
| 500+ | ₹12.28 | ₹6,140.00 |
| 3,000+ | ₹11.23 | ₹33,690.00 |
| 6,000+ | ₹10.61 | ₹63,660.00 |
5 × ₹20.89
₹104.45
excl. GST
₹123.25 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TC7SU04F,LF
₹104.45 for 5 + GST
Specifications
- Logic Family
- TC7SU
- Voltage - Supply
- 2V~6V
- Output Logic Level - Low
- 200mV;500mV;330mV
- Propagation Delay
- 17ns@6V,50pF
- Operating Temperature
- -40℃~+85℃
- Input Logic Level - Low
- 300mV~1.2V
- Input Logic Level - High
- 1.7V~4.8V
- Output Logic Level - High
- 1.8V;4.13V;5.68V
- Quiescent Current(Iq)
- 1uA
- Number of Channels
- 1
- Current - Output High(IOH)
- 2.6mA
- Current - Output Low(IOL)
- 2.6mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.2 g
Overview
The TC7SUO4 is a high speed C2MOS INVERTER fabricated with silicon gate C2Mos technology. It achieves high speed operation similar to equivalent LSTTL while maintaining the C2MOs low power dissipation. The internal circuit is composed of single stages inverter, it can be applied for crystal oscillation. The input is equipped with protection circuits against static discharge or transient excess voltage. Output currents are 1/2 compared to TC74HC series models.
Key features
- High Speed td = 7ns (Typ.) at Vcc = 5V
- Low Power Dissipation. ICC = 1μA (Max.) at Ta = 25°C
- High Noise Immunity VNIH = VNIL = 28% Vcc (Min.)
- Output Drive Capability ... 5 LSTTL Loads
- Symmetrical Output Impedance |IOH| = |IOL| = 2mA (Min.)
- Balanced Propagation Delays ...... tpLH = tpHL
- Wide Operating Voltage Range.. Vcc(opr) = 2 ~ 6V
