TOSHIBADatasheet (PDF)

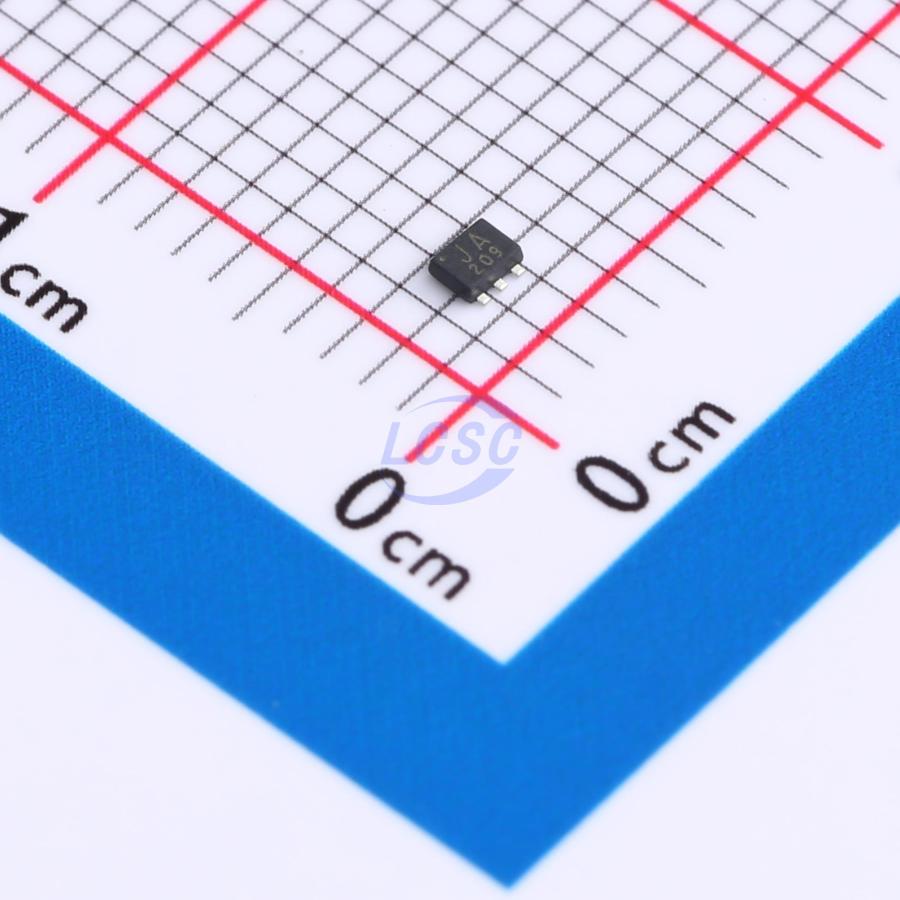

TC7SZ14FE,LJ(CT
Schmitt trigger 1.65V~5.5V 5.9ns@5V,50pF 2uA 1 SOT-553 Gates and Inverters RoHS
SOT-553ROHS3 CompliantActive
CMOS Digital Integrated Circuits Schmitt Inverter
- Manufacturer
- TOSHIBA
- Manufacturer part #
- TC7SZ14FE,LJ(CT
- Store part #
- C5156513
- Package / case
- SOT-553
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,750 in stock
#C5156513
Stock & price checked 23 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹16.29 | ₹81.45 |
| 50+ | ₹13.12 | ₹656.00 |
| 150+ | ₹11.55 | ₹1,732.50 |
| 500+ | ₹9.98 | ₹4,990.00 |
| 2,500+ | ₹9.02 | ₹22,550.00 |
| 4,000+ | ₹8.55 | ₹34,200.00 |
5 × ₹16.29
₹81.45
excl. GST
₹96.11 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
TC7SZ14FE,LJ(CT
₹81.45 for 5 + GST
Specifications
- Input Type
- Schmitt trigger
- Logic Family
- TC7SZ
- Voltage - Supply
- 1.65V~5.5V
- Propagation Delay
- 5.9ns@5V,50pF
- Features
- Power shutdown protection;Noise suppression function
- Input Logic Level - Low
- 200mV~1.2V
- Operating Temperature
- -40℃~+85℃
- Input Logic Level - High
- 1.4V~3.6V
- Quiescent Current(Iq)
- 2uA
- Number of Channels
- 1
- Current - Output High(IOH)
- 32mA
- Current - Output Low(IOL)
- 32mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.065 g
Overview
Schmitt Inverter
Key features
- AEC-Q100 (Rev. H)
- Wide operating temperature range: T(opr) = -40 to 125 °C
- High output current: ±24 mA (min) at V(CC) = 3.0 V
- Super high speed operation: t(pd) = 3.7 ns (typ.) at V(CC) = 5.0 V, C(L) = 50 pF
- Operation voltage range: V(CC) = 1.65 to 5.5 V
- 5.5 V tolerant inputs
- 5.5 V power down protection output
- Matches the performance of TC74LCX series when operated at 3.3 V V(CC)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| NL17SZ14XV5T2G#C464079onsemi · SOT-553 | onsemi | SOT-553 | On request | ₹15.02 · 0 in stock | View | |
