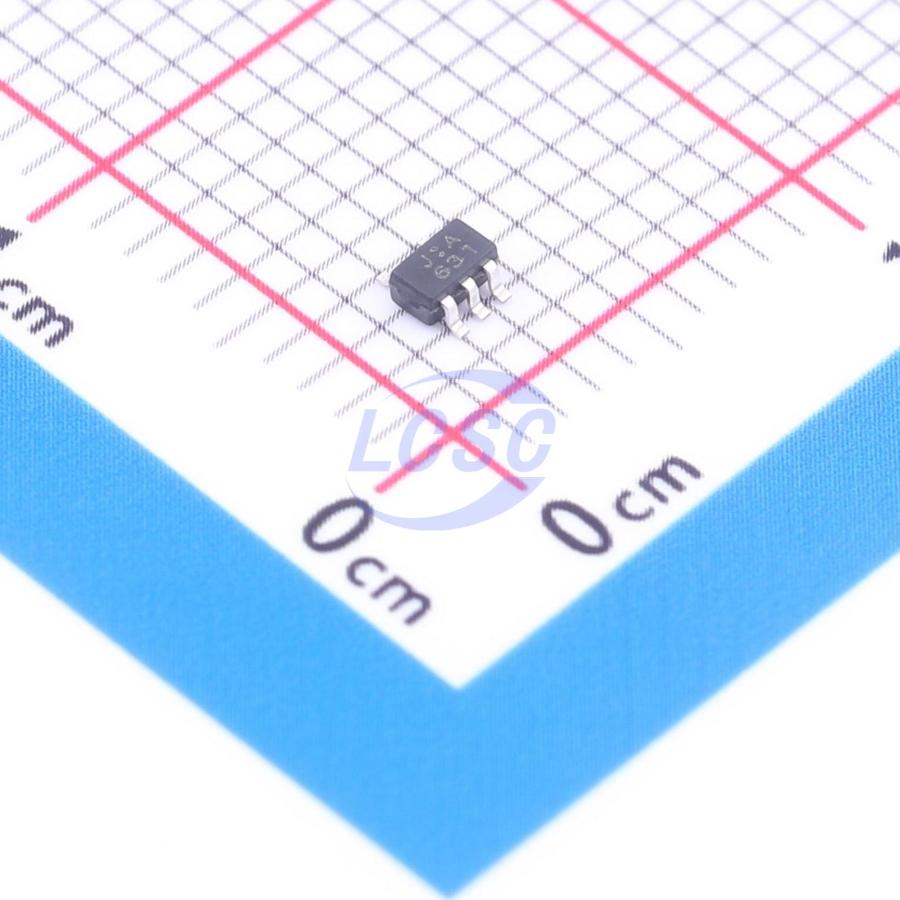

TC7SZ14FU-TP
Schmitt trigger 1.65V~5.5V 4.6ns@3.3V,15pF 10uA 1 SOT-353 Gates and Inverters
SOT-353RoHSActive
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TC7SZ14FU-TP
- Store part #
- C54195042
- Package / case
- SOT-353
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,830 in stock
#C54195042
Stock & price checked 2 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹6.34 | ₹63.40 |
| 100+ | ₹5.00 | ₹500.00 |
| 300+ | ₹4.33 | ₹1,299.00 |
| 3,000+ | ₹3.82 | ₹11,460.00 |
| 6,000+ | ₹3.43 | ₹20,580.00 |
| 9,000+ | ₹3.23 | ₹29,070.00 |
10 × ₹6.34
₹63.40
excl. GST
₹74.81 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TC7SZ14FU-TP
₹63.40 for 10 + GST
Specifications
- Input Type
- Schmitt trigger
- Voltage - Supply
- 1.65V~5.5V
- Propagation Delay
- 4.6ns@3.3V,15pF
- Output Logic Level - Low
- 100mV;450mV;300mV;400mV;550mV
- Operating Temperature
- -40℃~+125℃
- Output Logic Level - High
- 1.2V;1.9V;2.4V;2.3V;3.8V
- Quiescent Current(Iq)
- 10uA
- Number of Channels
- 1
- Current - Output High(IOH)
- 32mA
- Current - Output Low(IOL)
- 32mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.029 g
Overview
TC7SZ14 is a single Schmitt-trigger inverter. The device is designed for operation with Vcc between 1.65V and 5.5V and can be driven by 3.3V or 5V devices. This feature allows these devices to be used as translators in mixed 3.3V and 5V environments. The TC7SZ14 device contains one inverter that performs the Boolean function γ̄ = Ā. The device operates as a standalone inverter with Schmitt-trigger inputs, providing different input threshold levels for the positive-going input (Vt+), which enables the device to tolerate slow or noisy input signals. The device is fully specified for partial-power-down applications using Ioff. The Ioff circuit disables the outputs when the device is powered down, preventing current backflow into the device and avoiding damage to the device. The TC7SZ14 is offered in SOT23-5 and SOT353 packages.
Applications
- Active Noise Cancellation (ANC)
- Blood Pressure Monitor
- Embedded PC
- SSD: Client and Enterprise
- TV: LCD/Digital and HDTV
- Tablet: Enterprise
- Video Analytics: Server
- Wireless Headset, Keyboard and Mouse
- Power Supply: Telecom/Server AC/DC Controller
Key features
- Wide supply voltage range: 1.65V to 5.5V
- Maximum propagation delay of 4.6ns at Vcc = 3.3V
- Low power consumption, maximum quiescent current of 10μA
- Output drive current of ±24mA at Vcc = 3.3V
- Latch-up performance exceeds 100mA per JESD 78 Class II
- ESD protection exceeds JESD 22 standard
- Human Body Model ESD protection 2000V (A114-A)
- Charged Device Model ESD protection 1000V (C101)
- Operating temperature range: -40℃ to 125℃
- Available packages: SOT23-5 and SOT353
