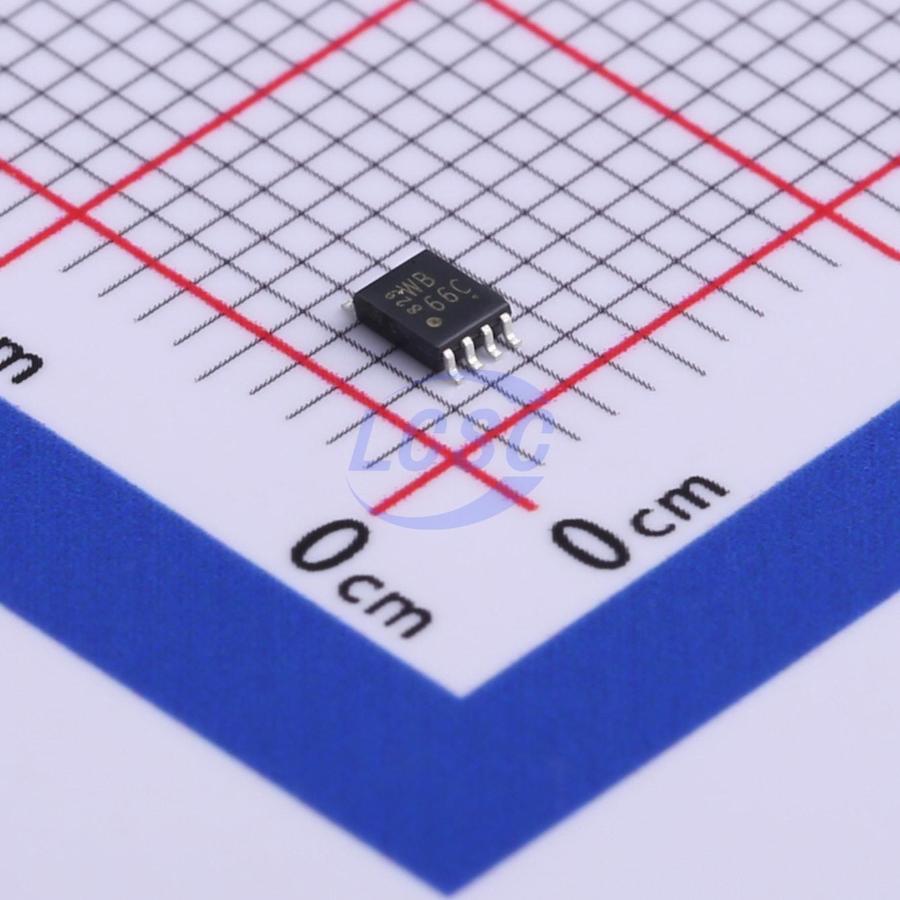

TC7WB66CFK,LF

The TC7WB66CFK/L8X and TC7WB67CFK/L8X are low ON-resistance, high-speed CMOS 2-bit bus switches. These bus switches allow connections or disconnections to be made with minimal propagation delay while maintaining Low power dissipation which is the feature of CMOS. TC7WB66CFK/L8X requires the output enable (OE) input to be set low to place the output into the high impedance state,whereas the TC7WB67CFK/L8X requires the output enable (OE(overline)) input to be set high to place the output into the high impedance. These Bus switches consist of P-MOS and N-MOS structure, meaning these devices are suitable for analog signal transmission. All inputs are equipped with protector circuits to protect the device from static discharge.

Key features

• Operating voltage: VCC = 1.65 to 5.5 V
• ON capacitance: CI/O = 10 pF Switch On (typ.) ΔωCC = 5.0 V
• ON resistance: RON = 4 Ω (typ.) @VCC = 4.5 V, VIS = 0 V
• ESD performance: Machine model ≥ ±200 V, Human body model ≥ ±2000 V
• Package: US8, MP8
