TOSHIBADatasheet (PDF)

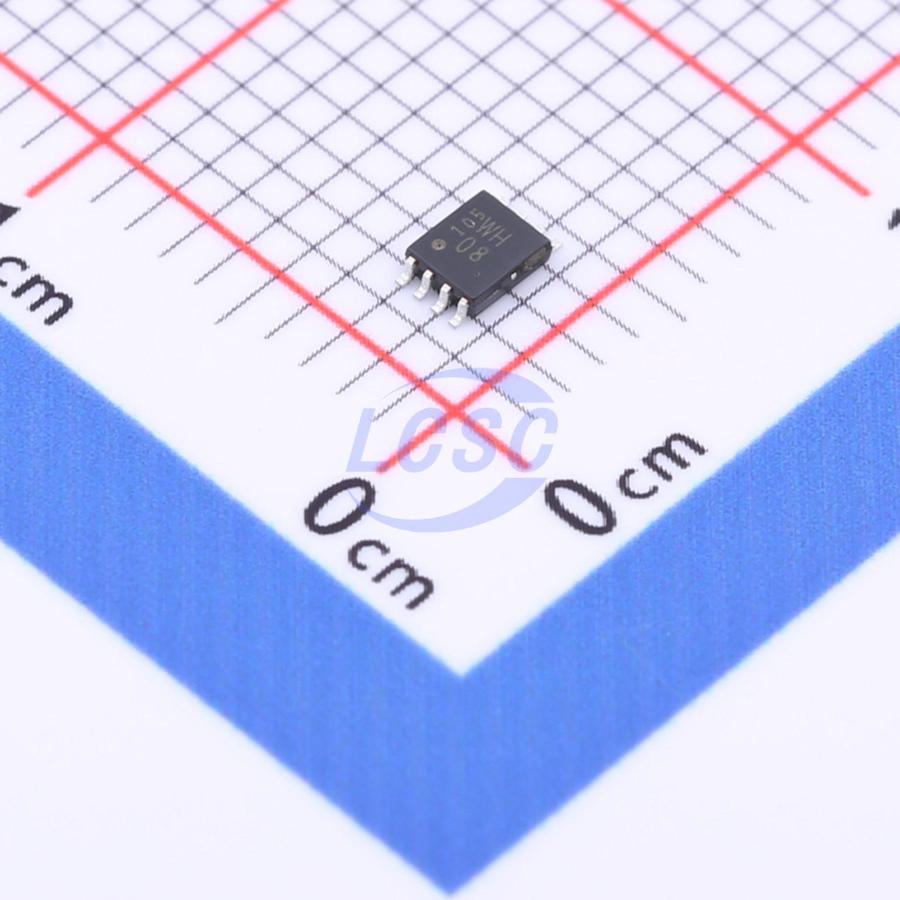

TC7WH08FK,LJ(CT
2V~5.5V 7.9ns@5V,50pF 2uA US-8 Gates and Inverters RoHS
US-8ROHS3 CompliantActive
CMOS Digital Integrated Circuits Dual 2-Input AND Gate
- Manufacturer
- TOSHIBA
- Manufacturer part #
- TC7WH08FK,LJ(CT
- Store part #
- C2880449
- Package / case
- US-8
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,540 in stock
#C2880449
Stock & price checked 2 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹19.47 | ₹97.35 |
| 50+ | ₹16.84 | ₹842.00 |
| 150+ | ₹15.70 | ₹2,355.00 |
| 500+ | ₹14.29 | ₹7,145.00 |
| 3,000+ | ₹13.65 | ₹40,950.00 |
| 6,000+ | ₹13.28 | ₹79,680.00 |
5 × ₹19.47
₹97.35
excl. GST
₹114.87 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TC7WH08FK,LJ(CT
₹97.35 for 5 + GST
Specifications
- Logic Family
- TC7WH Series
- Voltage - Supply
- 2V~5.5V
- Output Logic Level - Low
- 0V~100mV;360mV
- Propagation Delay
- 7.9ns@5V,50pF
- Features
- Overvoltage-tolerant input
- Input Logic Level - Low
- 500mV
- Operating Temperature
- -40℃~+85℃
- Input Logic Level - High
- 1.5V
- Output Logic Level - High
- 3.94V;4.4V~4.5V
- Quiescent Current(Iq)
- 2uA
- Current - Output High(IOH)
- 8mA
- Number of Channels
- 2;2
- Current - Output Low(IOL)
- 8mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.023 g
Overview
Dual 2-Input AND Gate
Key features
- AEC-Q100 (Rev. H)
- Wide operating temperature range: T_opr = -40 to 125 °C
- High speed operation: t_pd = 4.3 ns (typ.) (V_CC = 5.0 V, C_L = 15 pF)
- Low power dissipation: I_CC = 2.0 μA (max) (T_a = 25 °C)
- High noise immunity: V_NIH = V_NIL = 28 % V_CC (min)
- 5.5 V tolerant inputs
- Balanced Propagation delay: t_pLH ≈ t_pHL
- Wide operating voltage range: V_CC = 2.0 to 5.5 V
- Identical pin assignment and function with TC7W08
