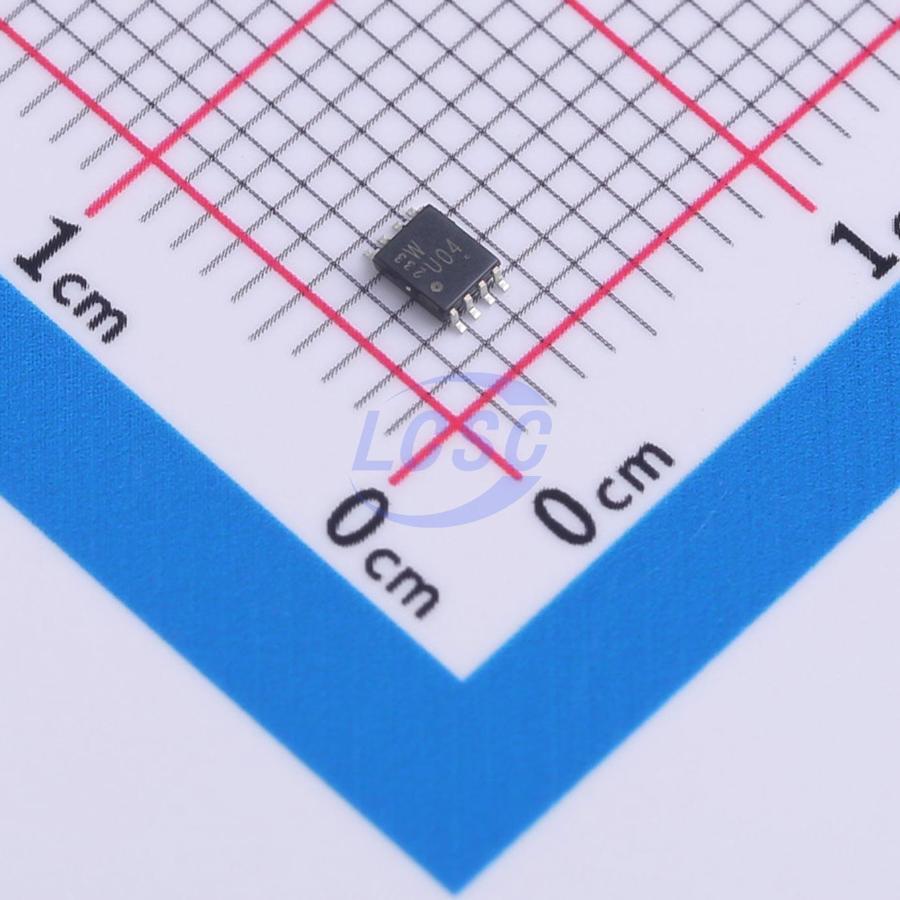

TC7WU04FK,LF
2V~6V 10ns@6V,50pF 1uA 3 US-8 Gates and Inverters RoHS
US-8ROHS3 CompliantActive
3 Inverters
- Manufacturer
- TOSHIBA
- Manufacturer part #
- TC7WU04FK,LF
- Store part #
- C6716826
- Package / case
- US-8
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,525 in stock
#C6716826
Stock & price checked 46 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹37.03 | ₹185.15 |
| 50+ | ₹28.81 | ₹1,440.50 |
| 150+ | ₹25.30 | ₹3,795.00 |
| 500+ | ₹20.90 | ₹10,450.00 |
| 3,000+ | ₹18.95 | ₹56,850.00 |
| 6,000+ | ₹17.77 | ₹1,06,620.00 |
5 × ₹37.03
₹185.15
excl. GST
₹218.48 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TC7WU04FK,LF
₹185.15 for 5 + GST
Specifications
- Logic Family
- TC7WU
- Voltage - Supply
- 2V~6V
- Propagation Delay
- 10ns@6V,50pF
- Input Logic Level - Low
- 300mV~1.2V
- Operating Temperature
- -40℃~+85℃
- Input Logic Level - High
- 1.7V~4.8V
- Output Logic Level - High
- 1.8V;4V;5.5V
- Quiescent Current(Iq)
- 1uA
- Number of Channels
- 3
- Current - Output High(IOH)
- 5.2mA
- Current - Output Low(IOL)
- 5.2mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.044 g
Overview
The TC7WU04 is a high speed CMOS Inverter fabricated with silicon gate CMOS technology. It achieves the high speed operation similar to equivalent LSTTL while maintaining the CMOS low power dissipation. As the internal circuit is composed of single stage inverter, it can be applied for crystal oscillation. All inputs are equipped with protection circuits against static discharge or transient excess voltage.
Key features
- High speed: tpd = 6 ns (typ.) at VCC = 4.5 V
- Low power dissipation: Icc = 1 μA (max) at Ta = 25℃
- High noise immunity: VNIH = VNIL = 10% VCC (min)
- Output drive capability: 10 LSTTL loads
- Symmetrical output impedance: | IOH | = IOL = 4 mA (min)
- Balanced propagation delays: tpLH ≃ tpHL
- Wide operating voltage range: VCC(opr) = 2 to 6 V
