TOSHIBADatasheet (PDF)

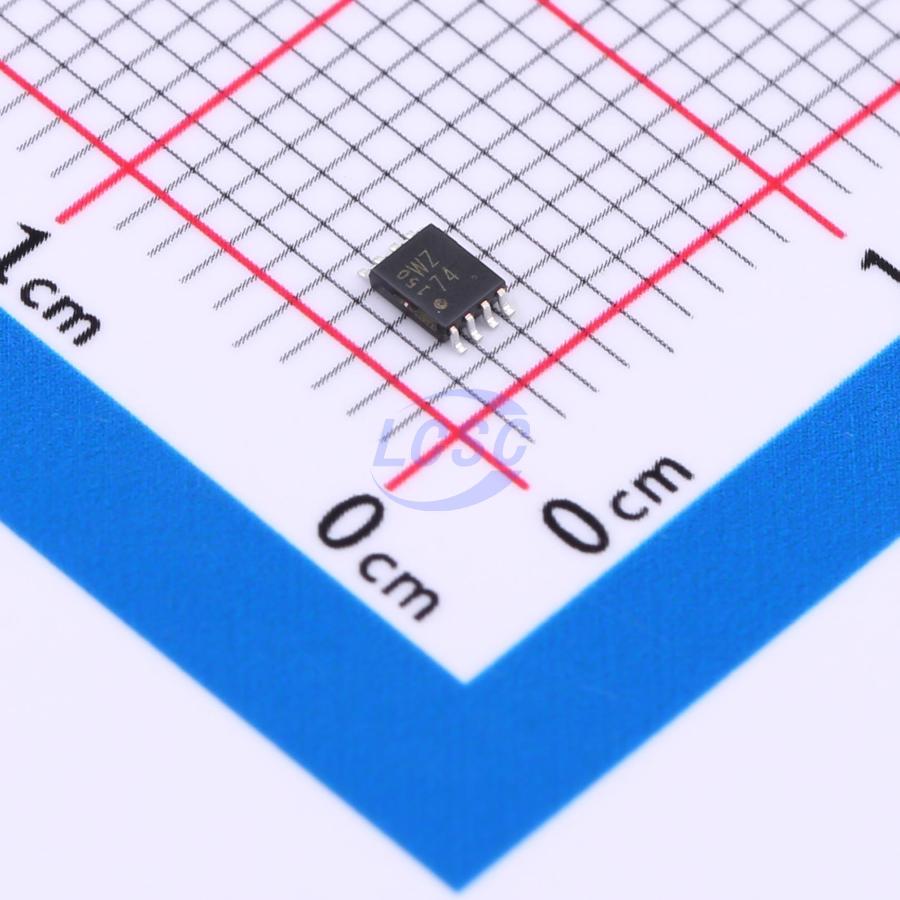

TC7WZ74FK,LJ(CT
1.65V~5.5V 1 1 4ns@5V,50pF US-8 Flip Flops RoHS
US-8ROHS3 CompliantActive
CMOS Digital Integrated Circuits Silicon Monolithic
- Manufacturer
- TOSHIBA
- Manufacturer part #
- TC7WZ74FK,LJ(CT
- Store part #
- C2652815
- Package / case
- US-8
- Category
- Flip Flops
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,340 in stock
#C2652815
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹21.84 | ₹109.20 |
| 50+ | ₹17.46 | ₹873.00 |
| 150+ | ₹15.58 | ₹2,337.00 |
| 500+ | ₹13.24 | ₹6,620.00 |
| 3,000+ | ₹12.20 | ₹36,600.00 |
| 6,000+ | ₹11.56 | ₹69,360.00 |
5 × ₹21.84
₹109.20
excl. GST
₹128.86 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TC7WZ74FK,LJ(CT
₹109.20 for 5 + GST
Specifications
- Voltage - Supply
- 1.65V~5.5V
- Number of Bits per Element
- 1
- Operating Temperature
- -40℃~+85℃
- Series
- TC7WZ Series
- Synchronous/Asynchronous
- Asynchronous
- Number of Elements
- 1
- Current - Output High(IOH)
- 32mA
- Current - Output Low(IOL)
- 32mA
- Setup Time
- 1.5ns
- Quiescent Current
- 10uA
- Hold Time
- 1ns
- Propagation Delay
- 4ns@5V,50pF
- Trigger Type
- Rising Edge
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.06 g
Overview
Key features
- AEC-Q100 (Rev. H)
- Wide operating temperature range: T opr = -40 to 125 °C
- High output current: ±24 mA (min) (V CC = 3.0 V)
- High speed operation: t pd = 2.8 ns (typ.) (V CC = 5.0 V, C L = 50 pF)
- Wide operating voltage range: V CC = 1.65 to 5.5 V
- 5.5 V tolerant inputs
- 5.5 V power down protection output
- Matches the performance of TC74LCX series when operated at 3.3 V V CC
