TIDatasheet (PDF)

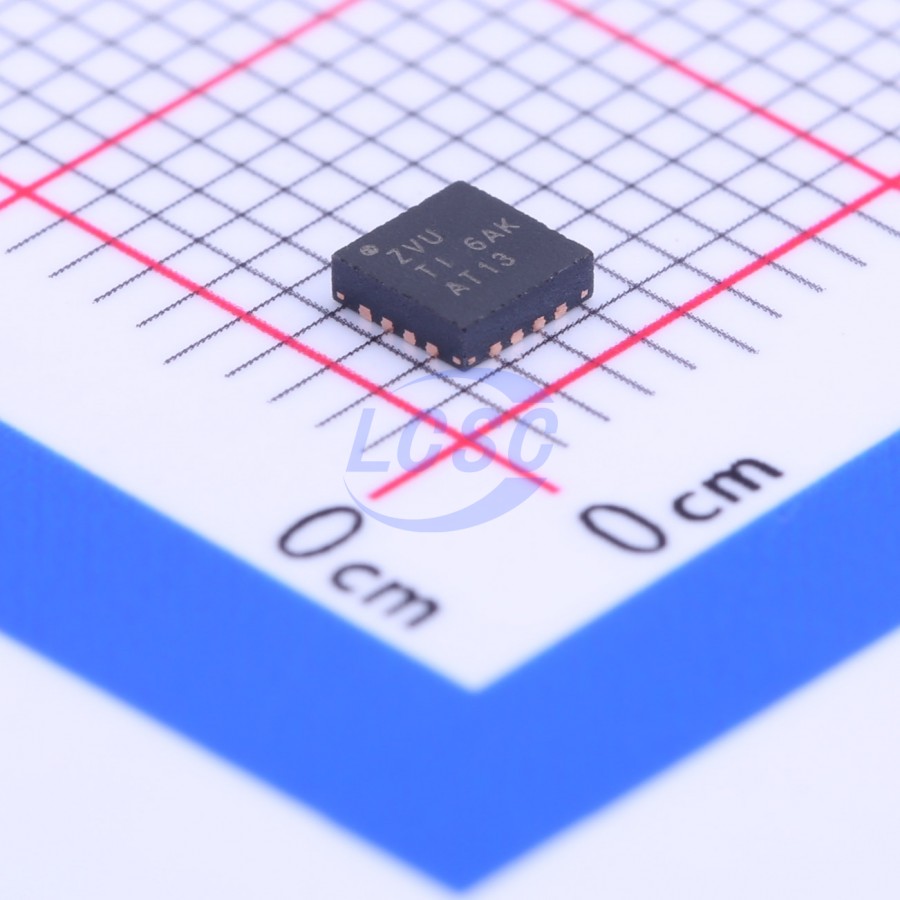

TCA6408ARGTR
8 QFN-16-EP(3x3) I/O Expanders RoHS
QFN-16-EP(3x3)ROHS3 CompliantActive
Low-Voltage 8-Bit I²C and SMBus I/O Expander With Interrupt Output, Reset, and Configuration Registers
- Manufacturer
- TI
- Manufacturer part #
- TCA6408ARGTR
- Store part #
- C181499
- Package / case
- QFN-16-EP(3x3)
- Category
- I/O Expanders
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
15,193 in stock
#C181499
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹117.35 | ₹117.35 |
| 10+ | ₹94.32 | ₹943.20 |
| 30+ | ₹82.79 | ₹2,483.70 |
| 100+ | ₹71.49 | ₹7,149.00 |
| 500+ | ₹58.68 | ₹29,340.00 |
| 1,000+ | ₹55.20 | ₹55,200.00 |
1 × ₹117.35
₹117.35
excl. GST
₹138.47 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TCA6408ARGTR
₹117.35 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Interrupt Output
- Interrupt Output
- Number of I/O
- 8
- Features
- Reset function;Built-in LED driver;IO level configurable;Cascade and address expansion
- Voltage - Supply
- 1.65V~5.5V
- Quiescent Supply Current
- 1.5uA
- Number of Supporting Devices
- 2
- Current - Output High(IOH)
- 10mA
- Interface
- I2C;SMBus
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.035 g
Overview
The TCA6408A is a 16-pin device that provides 8-bit general-purpose parallel I/O expansion for the two-wire bidirectional I2C bus (or SMBus) protocol. During device operation, both the I2C bus side (VCCI) and the P-port side (VCCP) can be powered by supplies ranging from 1.65V to 5.5V. This allows the TCA6408A to interface with next-generation microprocessors and microcontrollers on the SDA/SCL side, where supply voltages are being reduced to save power. Unlike the trend toward lower supply voltages for microprocessors and microcontrollers, some PCB components (such as LEDs) still require a 5V supply. The device supports clock frequencies of 100kHz (standard mode) and 400kHz (fast mode). When additional I/O is needed for devices such as switches, sensors, buttons, LEDs, and fans, I/O expanders like the TCA6408A provide a simple solution.
Applications
- Servers
- Routers (telecom switching equipment)
- Personal computers
- Personal electronics (gaming consoles)
- Industrial automation
- Products with GPIO-constrained processors
Key features
- I2C-to-parallel port expander
- Operating supply voltage range: 1.65V to 5.5V
- Supports bidirectional voltage-level translation and GPIO expansion between 1.8V, 2.5V, 3.3V, and 5V I2C bus and P-port
- 1μA low standby current consumption
- 5V-tolerant I/O ports
- 400kHz fast-mode I2C bus
- Hardware address pins allowing two TCA6408A devices on the same I2C/SMBus
- Active-low reset (RESET) input
- Open-drain active-low interrupt (INT) output
- Input and output configuration registers
- Polarity inversion register
- Internal power-on reset
- All channels configured as inputs at power-up
- Glitch-free power-up
- Noise filters on SCL and SDA inputs
- Latched outputs with maximum high-current drive capability for direct LED driving
- Latch-up performance exceeding 100mA per JESD78 Class II
- Schmitt-trigger inputs on SCL and SDA for slow input transitions and improved switching noise immunity
- ESD protection exceeding JESD22
- 2000V Human Body Model (A114-A)
- 1000V Charged Device Model (C101)
