UMW

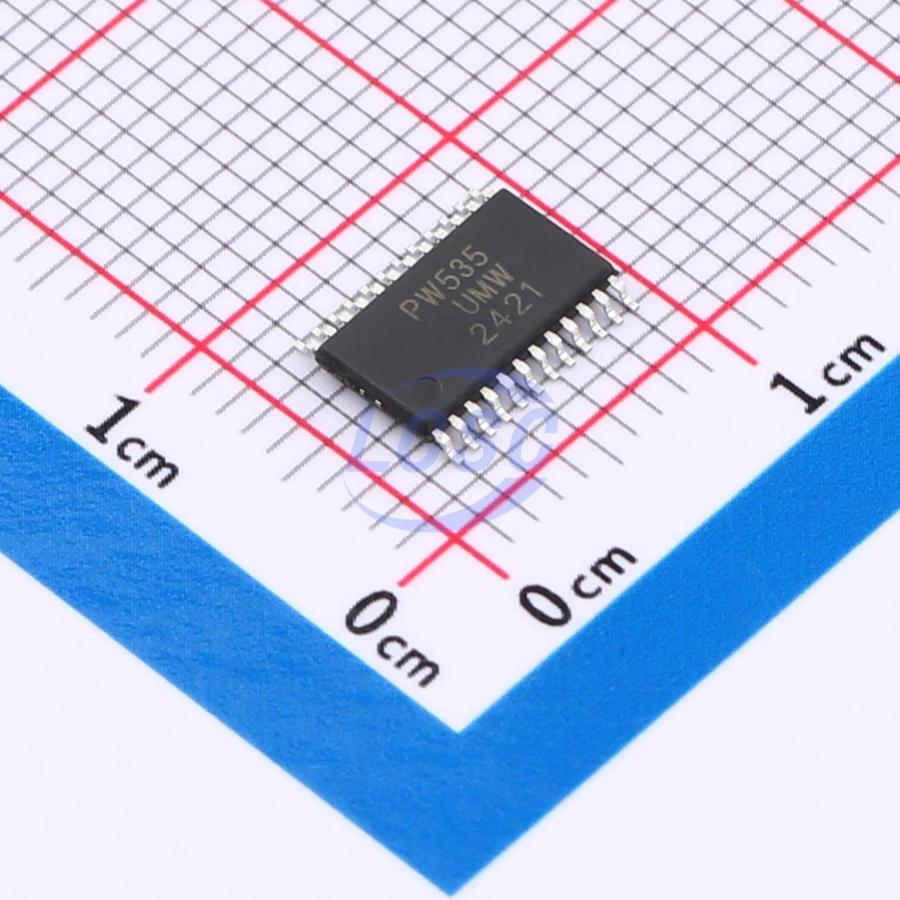

TCA9535PWR(UMW)

16 I2C TSSOP-24 I/O Expanders RoHS

TSSOP-24ROHS CompliantActive

16-bit I²C-bus I/O Expander with Interrupt Output

Manufacturer: UMW
Manufacturer part #: TCA9535PWR(UMW)
Store part #: C22396388
Package / case: TSSOP-24
Category: I/O Expanders
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

11,710 in stock

#C22396388

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
1+	₹65.24	₹65.24
10+	₹49.03	₹490.30
30+	₹41.04	₹1,231.20
100+	₹34.13	₹3,413.00
500+	₹32.19	₹16,095.00
1,000+	₹31.10	₹31,100.00

Quantity (min 1)

1 × ₹65.24

₹65.24

excl. GST

₹76.98 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 4,000 per reel

TCA9535PWR(UMW)

₹65.24 for 1 + GST

Specifications

Interrupt Output: Interrupt Output
Operating Temperature: -40℃~+85℃
Number of I/O: 16
Features: Built-in LED driver
Voltage - Supply: 1.4V~5.5V
Quiescent Supply Current: 500nA
Number of Supporting Devices: 8
Current - Output High(IOH): 10mA
Interface: I2C

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 4,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.213 g

Overview

The TCA9535 series provides general-purpose parallel input/output (GPIO) expansion. Port data is transmitted via the standard I²C protocol, supporting communication rates up to 1MHz (up to 2MHz with High-Speed mode enabled). The series features 16-bit totem-pole I/O ports (P07–P00, P17–P10) capable of directly driving LEDs. Each bit of the GPIO port can be individually configured as input or output. Upon power-up, the I/Os are configured as inputs.
