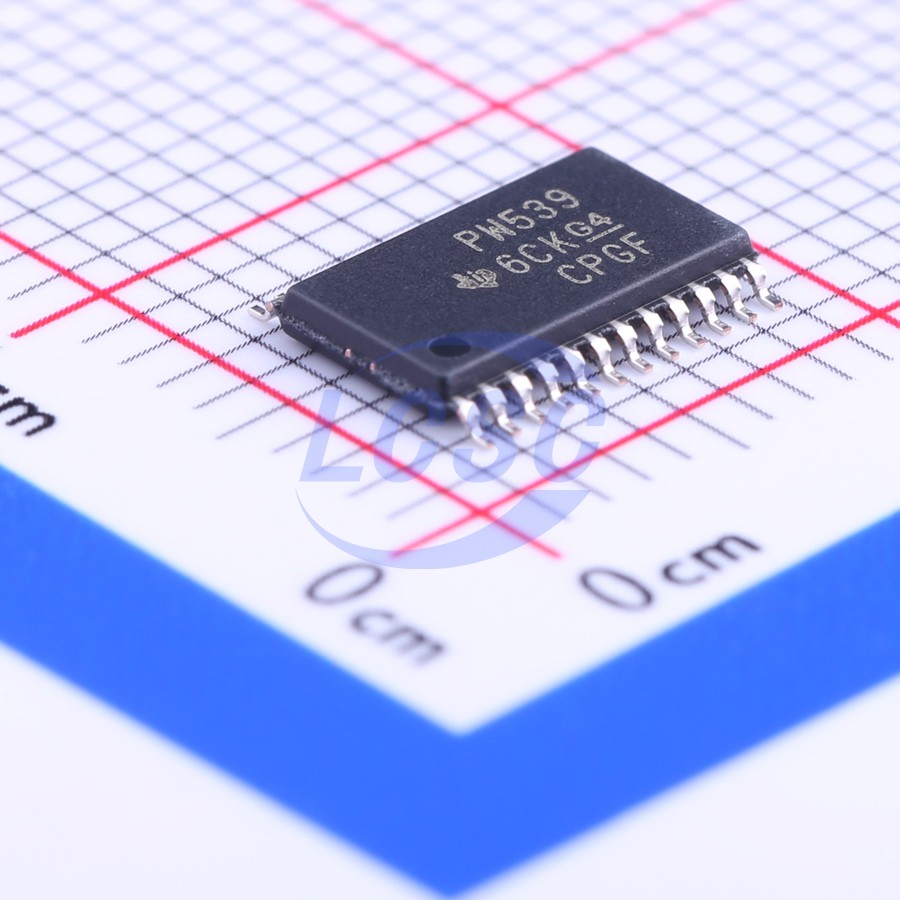

TCA9539PWR
16 TSSOP-24 I/O Expanders RoHS
TSSOP-24ROHS CompliantActive
Low Voltage 16-Bit I²C and SMBus Low-Power I/O Expander with Interrupt Output, Reset Pin, and Configuration Registers
- Manufacturer
- TI
- Manufacturer part #
- TCA9539PWR
- Store part #
- C131972
- Package / case
- TSSOP-24
- Category
- I/O Expanders
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5,584 in stock
#C131972
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹155.12 | ₹155.12 |
| 10+ | ₹130.14 | ₹1,301.40 |
| 30+ | ₹116.45 | ₹3,493.50 |
| 100+ | ₹101.02 | ₹10,102.00 |
| 500+ | ₹94.29 | ₹47,145.00 |
| 1,000+ | ₹91.25 | ₹91,250.00 |
1 × ₹155.12
₹155.12
excl. GST
₹183.04 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
TCA9539PWR
₹155.12 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Interrupt Output
- Interrupt Output
- Number of I/O
- 16
- Features
- Reset function;Cascade and address expansion;Built-in LED driver
- Voltage - Supply
- 1.65V~5.5V
- Quiescent Supply Current
- 1.5uA
- Number of Supporting Devices
- 4
- Current - Output High(IOH)
- 10mA
- Interface
- I2C;SMBus
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.07 g
Overview
The TCA9539 is a 24-pin device that provides 16 bits of general purpose parallel input and output (I/O) expansion for the two-line bidirectional I²C bus (or SMBus protocol). The device can operate with a power supply voltage (VCC) range from 1.65 V to 5.5 V. The device supports 100-kHz (I²C Standard mode) and 400-kHz (I²C Fast mode) clock frequencies. I/O expanders such as the TCA9539 provide a simple solution when additional I/Os are needed for switches, sensors, push-buttons, LEDs, fans, and other similar devices. The features of the TCA9539 include an interrupt that is generated on the INT pin whenever an input port changes state. The A0 and A1 hardware selectable address pins allow up to four TCA9539 devices on the same I²C bus. The device can be reset to its default state by cycling the power supply and causing a power-on-reset. Also, the TCA9539 has a hardware RESET pin that can be used to reset the device to its default state.
Applications
- Servers
- Routers (Telecom Switching Equipment)
- Personal Computers
- smartphones
- Industrial Automation
- I²C GPIO Expansion
Key features
- I²C to Parallel Port Expander
- Low Standby-Current Consumption
- Open-Drain Active-Low Interrupt Output
- Active-Low Reset Input
- 5-V Tolerant I/O Ports
- Compatible With Most Microcontrollers
- 400-kHz Fast I²C Bus
- Input and Output Configuration Register
- Polarity Inversion Register
- Internal Power-on Reset
- No Glitch on Power Up
- Noise Filter on SCL and SDA Inputs
- Address by Two Hardware Address Pins for Use of up to Four Devices
- Latched Outputs With High-Current Drive Capability for Directly Driving LEDs
- Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II
- ESD Protection Exceeds JESD 22
- 2000-V Human-Body Model (A114-A)
- 1000-V Charged-Device Model (C101)
