UMW

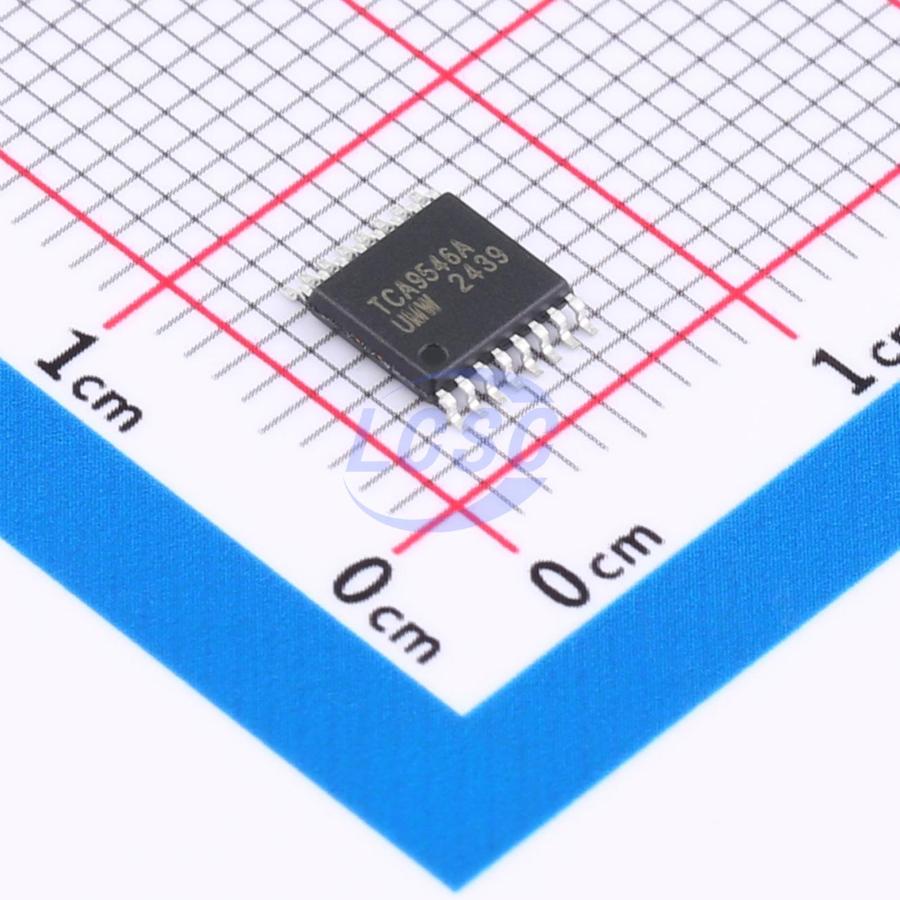

TCA9546APWR(UMW)

1.65V~5.5V 2uA TSSOP-16 Signal Switches, Multiplexers, Decoders RoHS

TSSOP-16ROHS CompliantActive

4-Channel SMBus and I2C Switch

Manufacturer: UMW
Manufacturer part #: TCA9546APWR(UMW)
Store part #: C42420613
Package / case: TSSOP-16
Category: Signal Switches, Multiplexers, Decoders
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,249 in stock

#C42420613

Stock & price checked 21 h ago

Quantity	Unit price	Pack price
1+	₹43.39	₹43.39
10+	₹37.81	₹378.10
30+	₹35.23	₹1,056.90
100+	₹32.23	₹3,223.00
500+	₹30.93	₹15,465.00
1,000+	₹30.07	₹30,070.00

Quantity (min 1)

1 × ₹43.39

₹43.39

excl. GST

₹51.20 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 5,000 per reel

TCA9546APWR(UMW)

₹43.39 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Voltage - Supply: 1.65V~5.5V
Operating Temperature: -40℃~+85℃
Quiescent Current: 2uA
Function: Level shifting;Hot-swap protection
Current - Output Low(IOL): 9.7mA

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
Packaging: Tape & Reel (TR)
Standard pack: 5,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.151 g

Overview

The UMW TCA9546 series is a 4-channel bidirectional data transfer switch controlled by the I²C bus. The upstream host selects one or more downstream devices via the SCL and SDA pins and performs the specified data transfer. The series supports any combination of downstream channel selection. The UMW TCA9546 series provides an active-low reset pin RESET. If the downstream I²C bus becomes locked up, pulling the RESET pin low resets the device, deselecting the downstream and releasing the locked I²C bus. The series allows upstream and downstream devices to transfer data across voltage domains. In this case, the supply voltage VCC of the series limits the minimum allowable pass-through voltage VPASS for upstream and downstream transfers. This feature allows upstream and downstream devices to interact across 1.8V, 3.3V, and 5.0V voltage domains without additional protection. When using this feature, ensure that the I²C bus of each upstream and downstream channel is connected to its respective supply voltage via a pull-up resistor RP. All pins of the series have a voltage tolerance of 5.5V.
