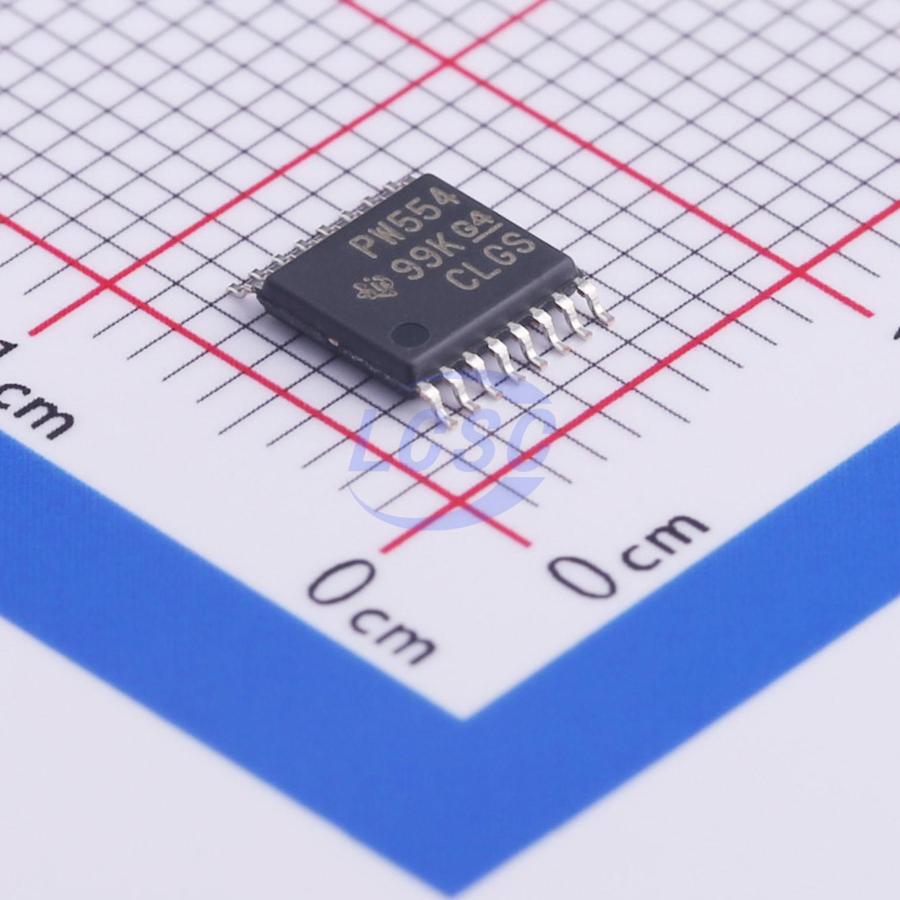

TCA9554PWR

The TCA9554 is a 16-pin device that provides 8-bit general-purpose parallel I/O expansion for the two-wire bidirectional I²C bus (or SMBus) protocol. The device operates over a supply voltage range of 1.65V to 5.5V and supports clock frequencies of 100kHz (standard mode) and 400kHz (fast mode). When switches, sensors, buttons, LEDs, fans, and other similar devices require additional I/O, I/O expanders such as the TCA9554 provide a simple solution. The TCA9554 features interrupt generation on the INT pin when the state of an input port changes. Hardware-selectable address pins A0, A1, and A2 allow up to eight TCA9554 devices to share the same I²C bus. The device also supports power-cycling to generate a power-on reset, restoring it to its default state.

Applications

• Servers
• Routers (telecom switching equipment)
• Personal computers
• Personal electronics (e.g., gaming consoles)
• Industrial automation
• Products using GPIO-constrained processors

Key features

• I²C to parallel port expander
• Open-drain active-low interrupt output
• 1.65V to 5.5V operating supply voltage range
• 5V tolerant I/O ports
• 400kHz fast I²C bus
• 3 hardware address pins supporting up to 8 devices on I²C/SMBus
• Input and output configuration registers
• Polarity inversion register
• Internal power-on reset
• Low standby current consumption
• All channels configured as inputs at power-on
• Glitch-free outputs at power-on
• Noise filter on SCL/SDA inputs
• Latched outputs with maximum high-current drive capability for direct LED driving
• Latch-up performance exceeding 100mA, compliant with JESD78 Class II specifications
• ESD protection performance exceeding JESD22 specifications
• 2000V Human Body Model (A114-A)
• 1000V Charged Device Model (C101)
