UMW

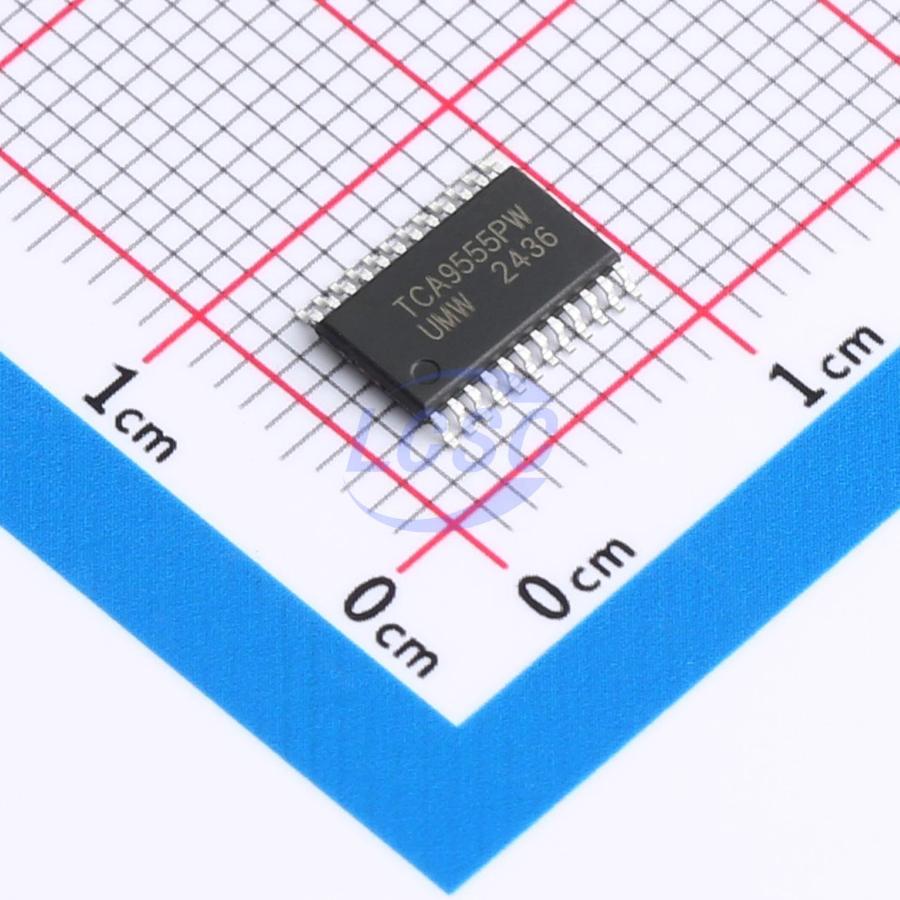

TCA9555PWR(UMW)

16 I2C TSSOP-24 I/O Expanders RoHS

TSSOP-24ROHS CompliantActive

16-bit I²C-bus I/O Expander with Interrupt Output

Manufacturer: UMW
Manufacturer part #: TCA9555PWR(UMW)
Store part #: C42420608
Package / case: TSSOP-24
Category: I/O Expanders
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

4,565 in stock

#C42420608

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
1+	₹67.66	₹67.66
10+	₹52.63	₹526.30
30+	₹46.19	₹1,385.70
100+	₹38.23	₹3,823.00
500+	₹34.79	₹17,395.00
1,000+	₹32.65	₹32,650.00

Quantity (min 1)

1 × ₹67.66

₹67.66

excl. GST

₹79.84 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 4,000 per reel

TCA9555PWR(UMW)

₹67.66 for 1 + GST

Specifications

Interrupt Output: Interrupt Output
Operating Temperature: -40℃~+85℃
Number of I/O: 16
Features: Built-in LED driver
Voltage - Supply: 1.6V~5.5V
Quiescent Supply Current: 500nA
Current - Output High(IOH): 10mA
Number of Supporting Devices: 8
Interface: I2C

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 4,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.214 g

Overview

The TCA9535 series provides general-purpose parallel input/output (GPIO) expansion. Port data is transmitted via the standard I²C protocol, supporting communication rates up to 1MHz (up to 2MHz with High-Speed mode enabled). The series features 16-bit totem-pole I/O ports (P07–P00, P17–P10) capable of directly driving LEDs. Each bit of the GPIO port can be individually configured as input or output. Upon power-up, the I/Os are configured as inputs.
